305m 1000ft Network Cables

Cat 6 Ethernet Cable 305m refers to a Category 6 Ethernet cable with a length of 305 m (1,000 ft.) Cat 6 cable is a standard cable type used in Local Area Networks (LANs) to support high-speed network connectivity and is commonly used in office environments, data centres and home networks.

Fangbei Electronics specializes in supplying rj45 cat6 roll 305m cat 6 24awg utp lan pure copper ethernet cable patch cord communication cable.

Material Instruction

1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;

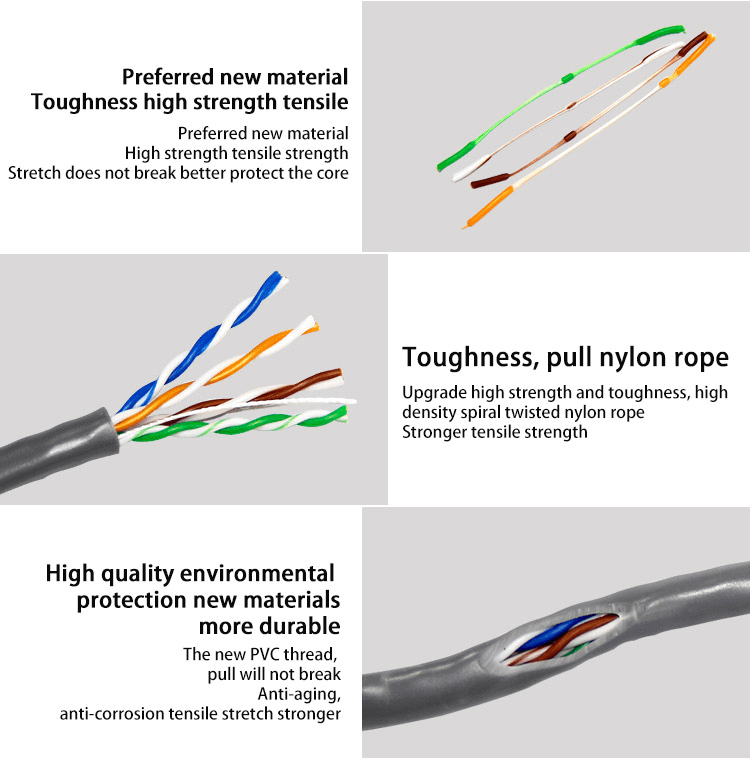

4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.

Features

High-speed transmission

Bandwidth: Cat 6 cable supports bandwidths up to 250 MHz.

Data Transfer Speed: Supports data transfer rates of 10 Gbps (typically over distances of up to 55 metres).

Length

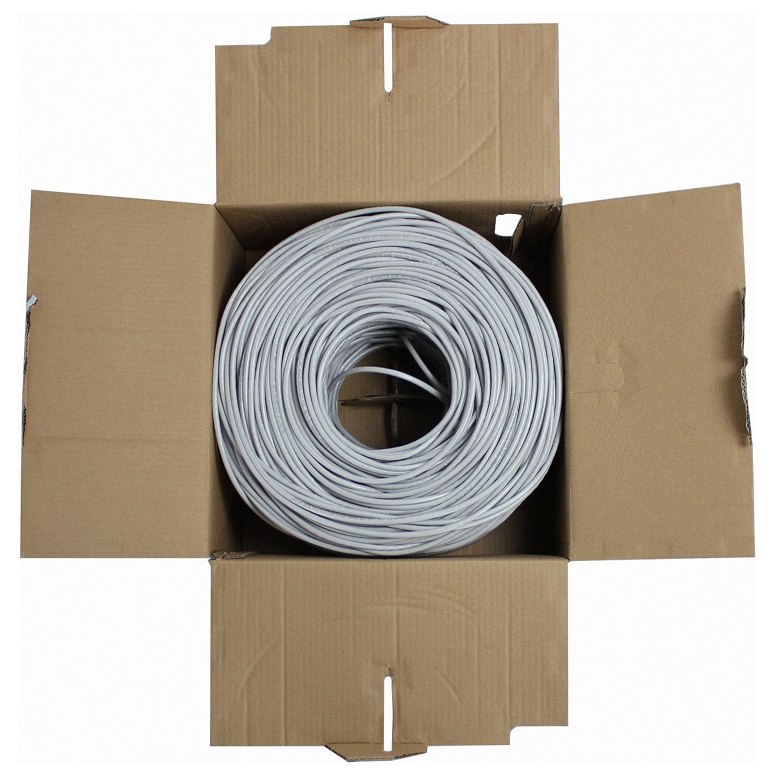

Lengths of 305 metres (1,000 feet) are typically sold in reels or boxes for large-scale cabling projects.

Shield Type

Can be either unshielded twisted pair (UTP) or shielded twisted pair (STP), where STP reduces electromagnetic interference (EMI).

Application Scenario

Suitable for scenes where the cabling distance is long and high performance network is required, such as office floors, data centres, campus networks, etc.

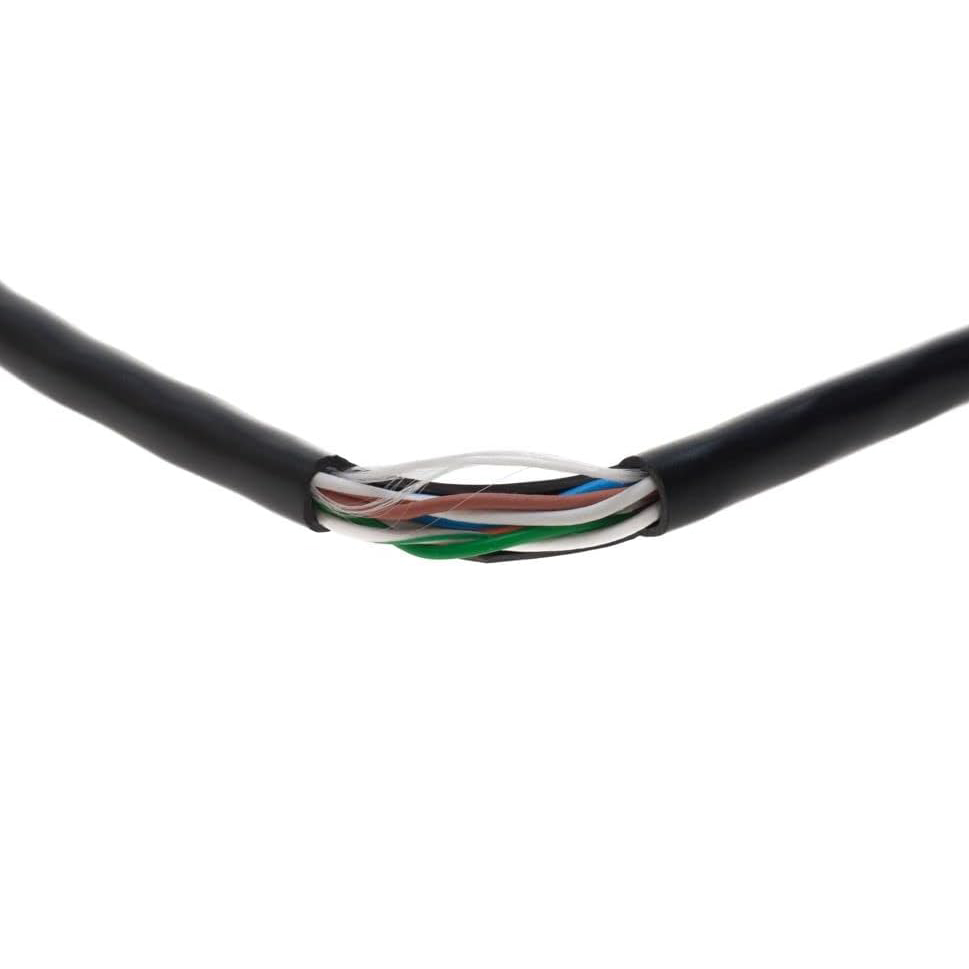

Structure:Consists of four twisted pairs with tighter winding between each pair to reduce crosstalk and external interference.

Connectors: Cat 6 cables typically use RJ-45 connectors.

Excessive bending or stretching of the cable should be avoided during installation to ensure signal quality.

Product Specification

Cat 6 Ethernet Cable is available in a variety of sizes and specifications.

Physical Specifications

Length: Common length specifications are 1 metre, 3 metres, 5 metres, 10 metres, 25 metres, 50 metres and 305 metres (1000 feet).

Wire Gauge: Typically 23 AWG (American Wire Gauge), with some manufacturers offering Cat 6 cable in 24 AWG.

Outside diameter: The outside diameter is usually between 5.5mm and 6.5mm, depending on the availability of a shield and the manufacturer's design.

Shield Type

UTP (Unshielded Twisted Pair): without additional shielding, suitable for general office and home network cabling.

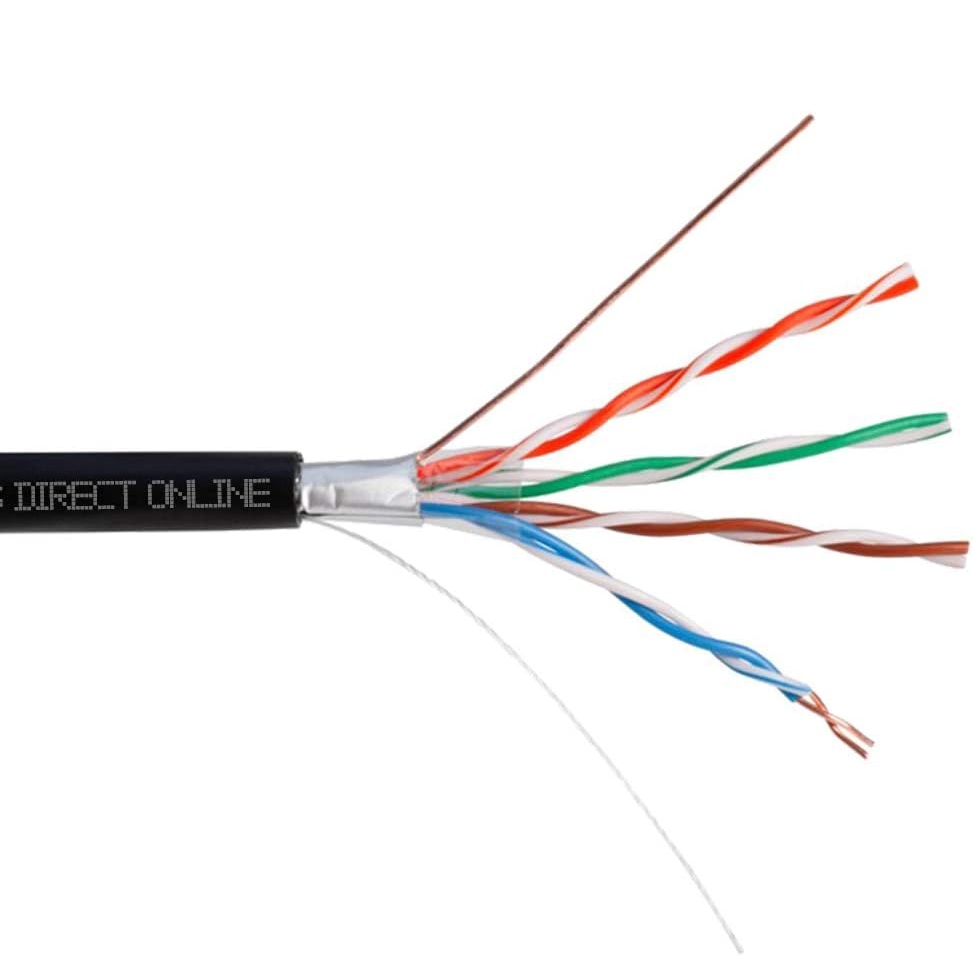

STP (Shielded Twisted Pair): Each twisted pair has a shielding layer, suitable for environments with more electromagnetic interference, such as industrial sites or data centres.

Connectors

RJ-45 Connector: Standard 8P8C (8 contacts in 8 positions) modular connector, which is the standard interface for Ethernet cables.

Bandwidth and Rate

Bandwidth: 250 MHz

Data Transfer Rate: Supports data transfer speeds up to 10 Gbps, with optimal performance typically achieved over 55 metres.

Twisted Pair Construction

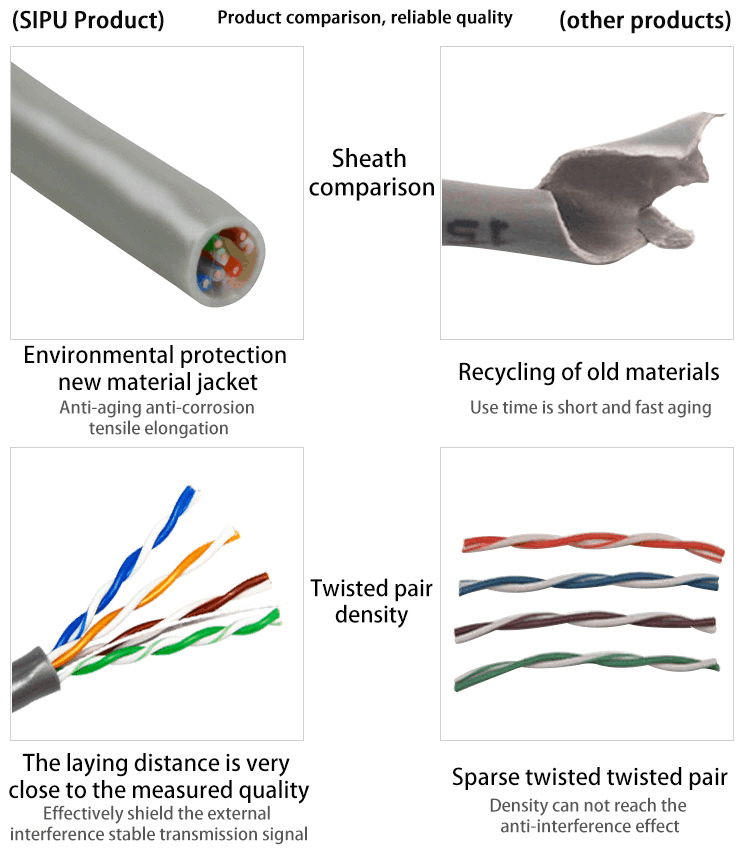

4 twisted pairs: Each Cat 6 cable contains 4 twisted pairs inside, with tighter winding between each pair to minimise crosstalk and external interference.

Sheath Material

PVC (Polyvinyl Chloride) Sheath: Commonly used in common environments and less expensive.

LSZH (Low Smoke Zero Halogen) sheath: produces less smoke and harmful gases in the event of a fire, and is suitable for environments with high safety requirements.

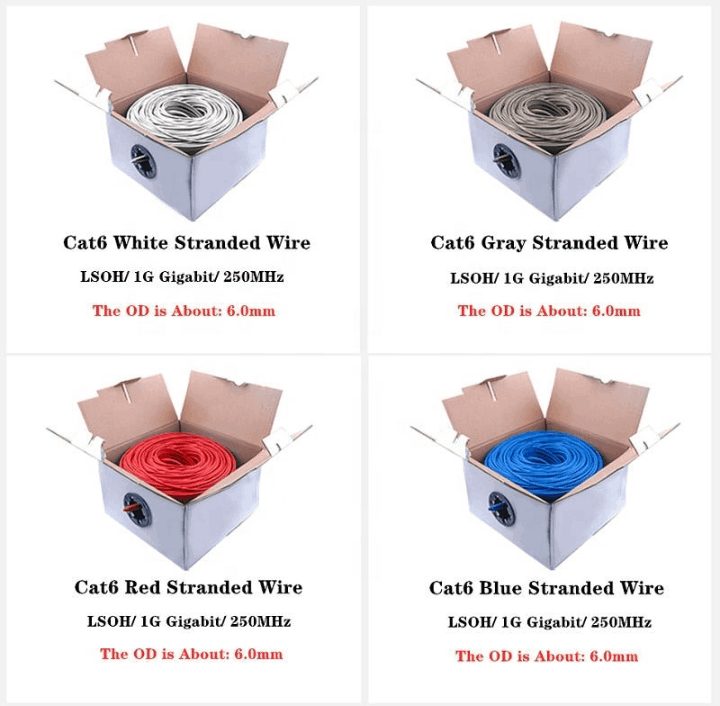

Colours

Cat 6 cables are available in a variety of colours including, but not limited to, grey, blue, yellow, red and green for easy colour coding management when wiring.

Certifications and Standards

TIA/EIA-568: Follows the Telecommunications Industry Association (TIA) and Electronic Industries Alliance (EIA) 568 standards to ensure compatibility and performance.

ISO/IEC 11801: International standards set by the International Organisation for Standardisation (ISO) and the International Electrotechnical Commission (IEC).

The Cat 6 Ethernet Cable 305m is versatile and suitable for a variety of scenarios where high performance and stable network connectivity is required.

Enterprise network cabling

Office Network: Used to connect computers, printers, servers and other devices inside an office building to ensure high-speed data transmission and stable network connection.

Data Centre: Inside the data centre, it is used to connect servers, storage devices and network devices to meet the demand for high bandwidth and low latency.

Home Network

Home Entertainment System: connects smart TVs, game consoles, streaming media devices, etc. to provide high-speed Internet access and ensure streaming media content without delay.

Smart home devices: connects smart home devices, such as cameras, smart speakers, lighting control systems, etc., to achieve fast communication between devices.

Campus Network

Campus network cabling: within schools, universities and educational institutions, for connecting computers and network devices in classrooms, laboratories and offices to support network requirements for educational and administrative work.

Network Expansion and Upgrade

Network Infrastructure Upgrade: Replacement of old Cat 5 or Cat 5e cables to upgrade the speed and bandwidth of existing networks to meet growing network demands.

New building network cabling: pre-wiring in new or refurbished buildings to ensure that high-speed network connections can be supported in the future.

Industrial Environments

Factory and Warehouse Networks: To connect industrial equipment, automation systems and monitoring systems to ensure fast data transfer and real-time control of equipment.

Security Surveillance System: Used to connect high-definition cameras and surveillance equipment, providing a stable network connection to ensure smooth transmission of video surveillance.

Wide Area Network (WAN) Connectivity

Cross-Building Connectivity: Used to connect networks of the same company or organisation in different buildings, providing high-speed and stable WAN connectivity.

Advantages

High bandwidth and high speed transmission: Supports up to 10 Gbps data rate and 250 MHz bandwidth, adapting to the high demands of modern networks.

Reduced Interference: Tighter pair winding and possible shielding (STP) reduces crosstalk and electromagnetic interference, providing more stable signal transmission.

Long Distance Transmission: 305 metres length is suitable for large-scale cabling projects, reducing connection points and potential signal loss.

Cat 6 Ethernet Cable 305m has important uses in many fields such as business, home, education, and industry. It provides high bandwidth, low latency and reliable network connectivity and is an essential part of modern network cabling.

RJ45 High performance Category 5 network cables provide excellent network connection and the highest speed and large capacity error-free data transmission performance for your high-end network applications. It provides maximum transmission bandwidth and avoids signal tampering, providing stable, high-speed transmission speed and bandwidth for your audio and video streams and large-scale data transfers. She is ideal for high-speed Internet applications, multi-user online games, continuous video/audio streaming, and SOHO web applications.

Quality assurance Our product quality requirements are very strict, the production of each product must be tested before delivery to customers, we uphold: "quality first, customer first, service first" purpose.

We specialize in OEM/ODM OEM production orders. Orders are welcome.

Professional manufacturers, can undertake OEM/ODM orders. Due to the different specifications, the specific price is recommended to discuss!
