Cat7 STP Keystone Jack

Cat 7 RJ45 shielded connectors support data rates up to 10Gbps and a frequency range of 600MHz for high-speed networking needs. Its shielded design effectively reduces electromagnetic interference (EMI) and radio frequency interference (RFI) to ensure signal integrity. Manufactured with high-quality materials for long service life and abrasion resistance, it is also backward compatible with Cat 6a, Cat 6 and Cat 5e standards for easy upgrades and replacements.

Features

Shield, In-Line Connection Keystone Coupler;

EN 50173 and ISO/IEC 11801 CAT6A;

RJ45

ETL VERIFIED

USA Patent

Contacts durability: more than 1000 times;
Each adapter could couple two RJ-45 Ethernet cables together to extend the connection between two network cables.
This RJ45 CAT. 6A female to female Ethernet couplers are backward compatible with older networks (eg. Cat. 3, 4, 5, 5e cabling);
CAT6A Keystone inline Coupler for voice, home networking, home office, audio, video and more;
Gold nickel plated contacts ensure a corrosion free connection.
CE and Reach Compliant, ETL VERIFIED, USA Patent

Connectors: 2xRJ45 8P8C female, nickel plating;;
Standard: Cat. 6A
Colour: Silver;
Material: Metal material, nickel plating;
Length: 1.26in;
Width: 0.57in;
High: 0.63in.
Package Number: 5
Package Contents
5 x CAT. 6A RJ45 Cable Coupler Keystone Coupler

RJ45 Coupler extender is ideal for extending ethernet connection by connecting 2 short network cables together.

FAST SPEED To 10 GIGABITE: The RJ45 connector can speed up to 10 gigabite for connecting Cat7/Cat6/Cat5e/Cat5 ethernet cable.

SAFE And SECURE: With Gold plated contacts and easy snap-in retaining clip, the coupler ensure a secure and corrosion free

connection.

COMPATIBILITY: This 8P8C female to female Ethernet coupler jack is compatible with Cat7, Cat6 Cat5e, Cat5 network.

HIGH PERFORMANCE: RJ45 inline jack coupler meets Category 6 performance in compliance with the TIA/EIA 568-C.2 standard. It is

RoHS compliant.

Cat 7 RJ45 shielded connectors are widely used in data centres, enterprise networks, home networks, educational institutions, hospitals and medical facilities, the financial industry, and scientific research and development. In data centres, it supports high-speed data transmission and ensures efficient connections between servers and storage devices. In enterprise networks, it provides stable high-speed connections and supports HD video conferencing and real-time data analysis. In home networks, it is suitable for HD video streaming, online gaming and smart home device connectivity. In educational institutions, it is used to build high-speed campus networks, supporting multimedia teaching and online learning platforms. In hospital networks, it supports electronic medical records, medical image transmission and telemedicine. In the financial industry, it provides fast and secure data transmission and supports real-time trading and financial data analysis. In scientific research institutions, it supports big data analysis and high-performance computing to meet various high-performance network requirements.

FAQ

What is Cat 7 RJ45 shielded connector?

The Cat 7 RJ45 Shielded Connector is a connector for network cabling that supports data rates up to 10Gbps and is shielded to minimise electromagnetic interference (EMI) and radio frequency interference (RFI).

What are the main uses of Cat 7 RJ45 connectors?

Cat 7 RJ45 connectors are widely used in data centres, enterprise networks, home networks, educational institutions, medical facilities, the financial industry and research institutes to provide high-speed, reliable network connectivity.

What is the difference between Cat 7 RJ45 connectors and Cat 6a or Cat 6 connectors?

Cat 7 RJ45 connectors support higher transmission rates (up to 10Gbps) and higher frequencies (up to 600MHz) with greater interference immunity for applications that require higher network performance.

Are Cat 7 RJ45 shielded connectors backward compatible?

Yes, Cat 7 RJ45 shielded connectors are backward compatible with Cat 6a, Cat 6, and Cat 5e standards, allowing for easy upgrades and expansions to existing network infrastructures.

What are the advantages of using Cat 7 RJ45 connectors in a home network?

Using Cat 7 RJ45 connectors in a home network provides faster Internet speeds, more reliable connections and better interference immunity for HD video streaming, online gaming and smart home device connectivity.

What is the purpose of the Cat 7 RJ45 connector's shielding design?

The shielding design of the Cat 7 RJ45 connector effectively reduces Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) and ensures signal stability and integrity, making it particularly suitable for locations with complex electromagnetic environments.

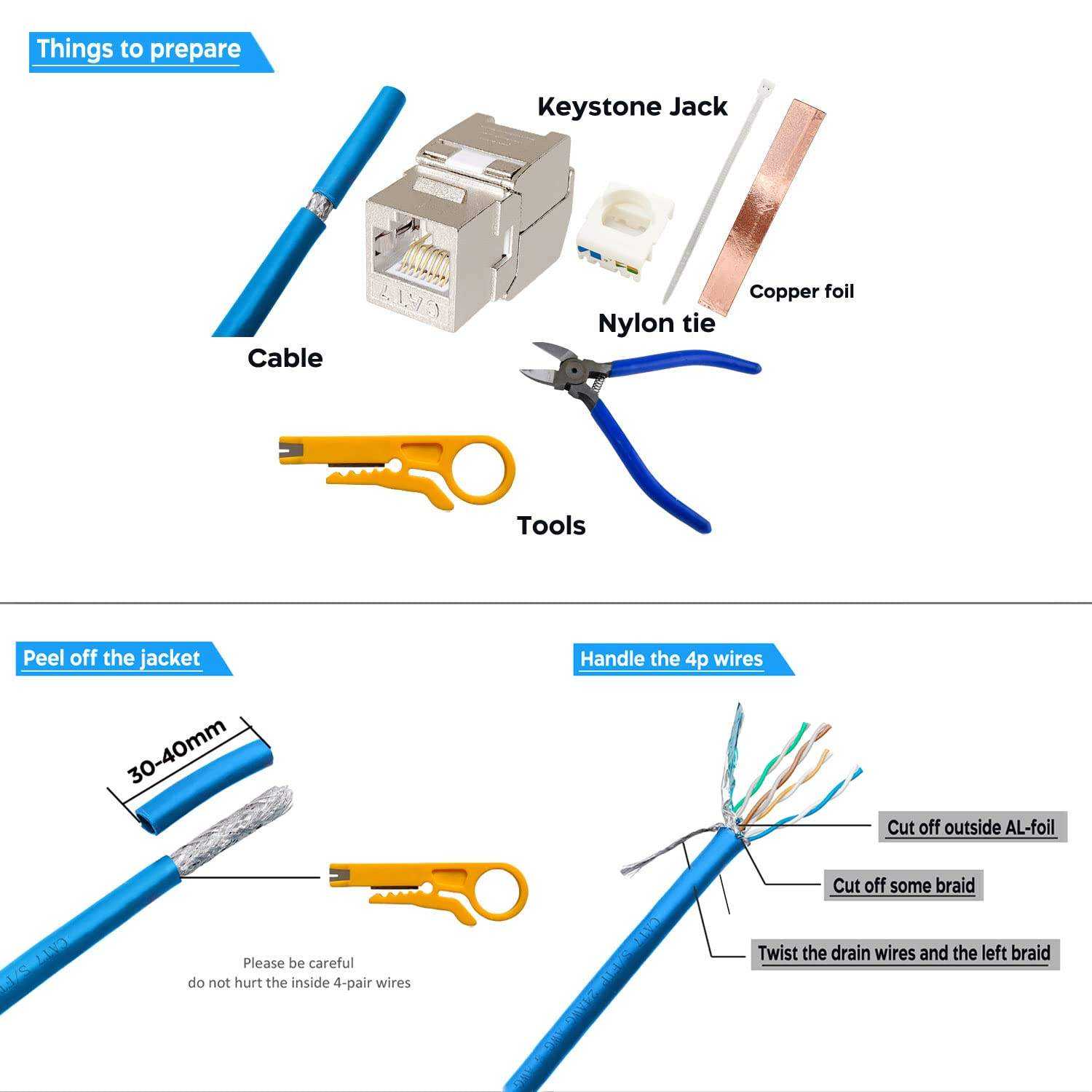

How to install Cat 7 RJ45 shielded connector?

Installation of Cat 7 RJ45 shielded connectors requires inserting the pairs of network cables into the connector in a standard sequence, and then using a special tool to crimp them to ensure that each wire makes good contact with the metal contacts of the connector.

What is the service life of Cat 7 RJ45 connectors?

Cat 7 RJ45 connectors are made of high quality materials and have a long lifespan, typically many years under normal use, depending on the environment and frequency of use.

In what scenarios do I need to use Cat 7 RJ45 shielded connectors?

Scenarios that require high bandwidth, high-speed data transmission and low interference, such as data centres, enterprise core networks, video transmission systems, high-speed broadband home networks, etc., are suitable for using Cat 7 RJ45 shielded connectors.

Does Cat 7 RJ45 connector support POE (Power over Ethernet)?

Yes, Cat 7 RJ45 connectors support POE (Power over Ethernet), which can transmit data and power at the same time, and are suitable for POE-powered network devices such as IP cameras and wireless access points.
