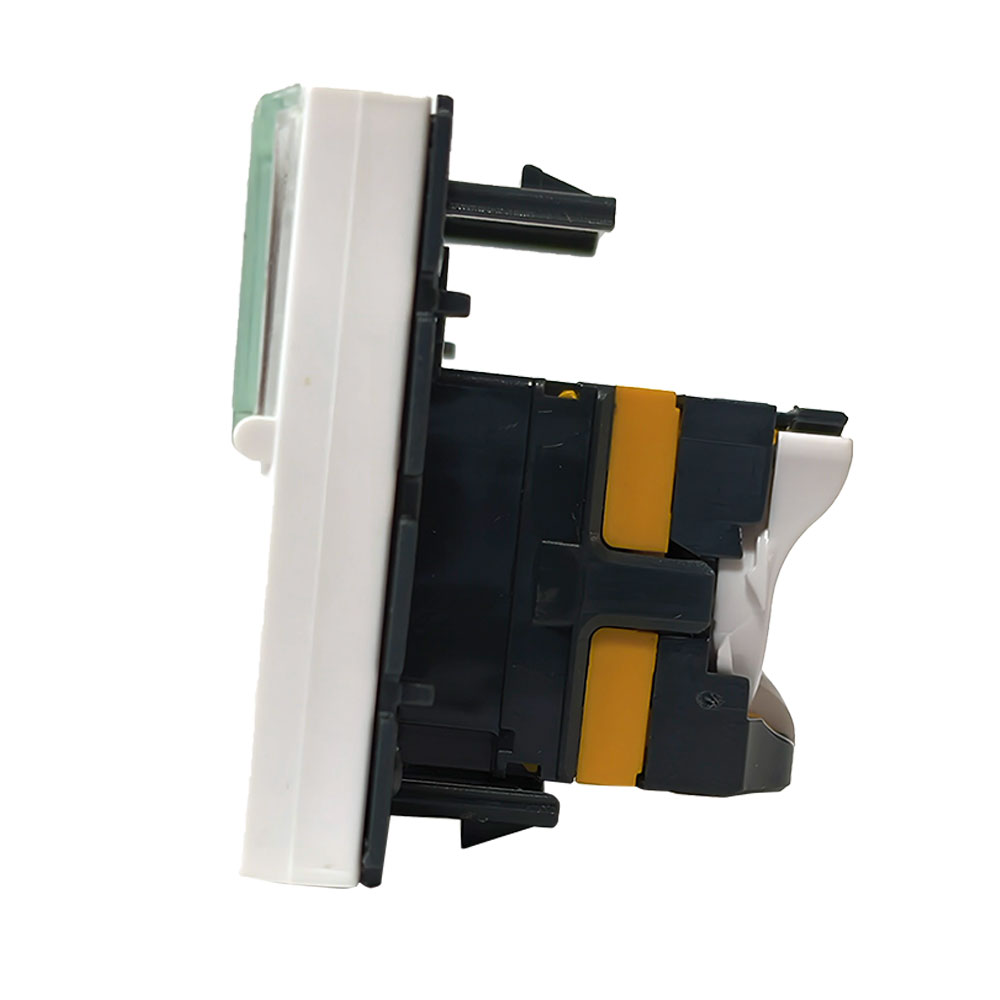

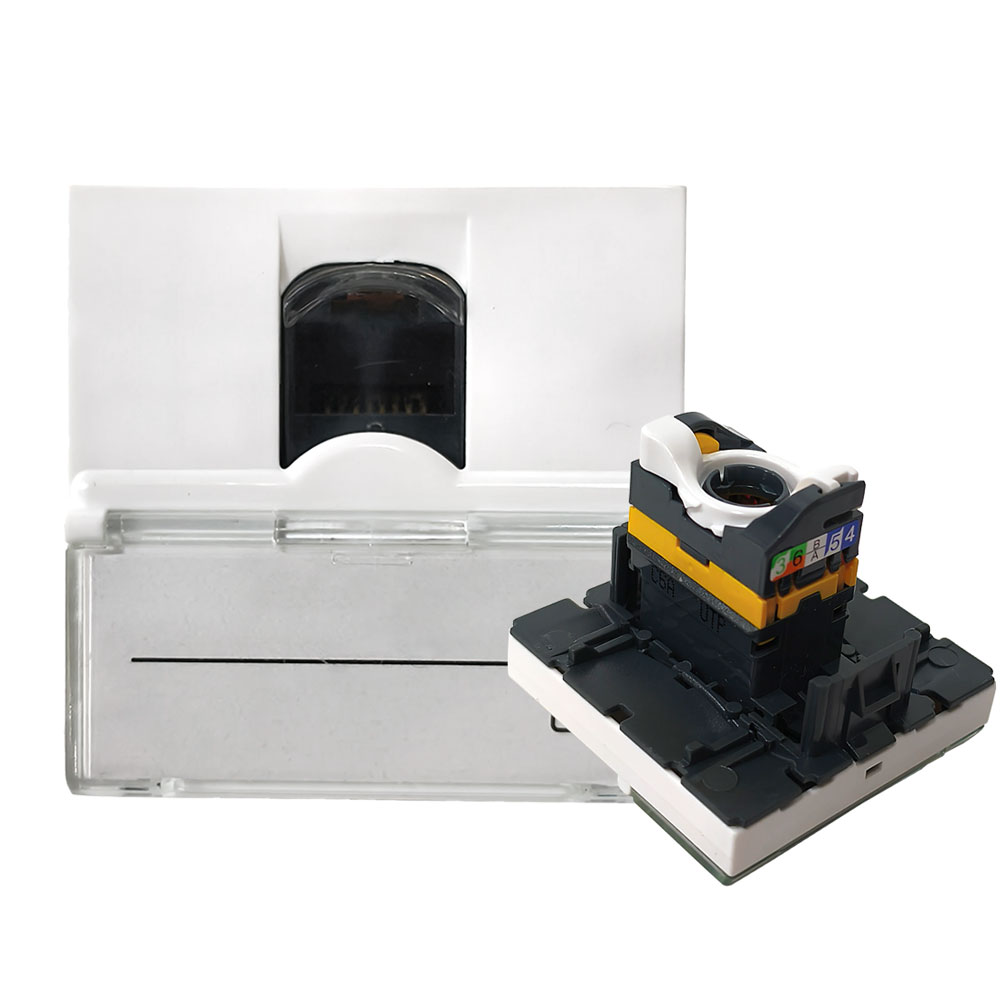

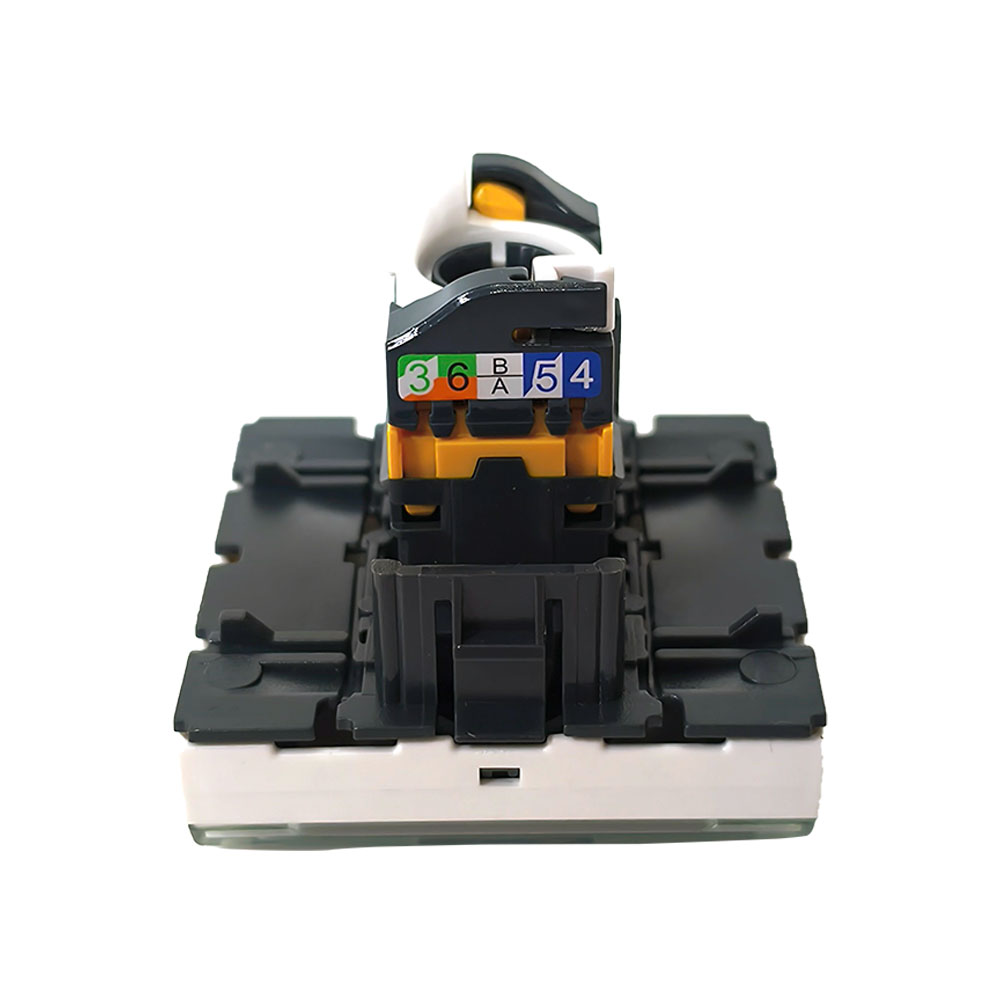

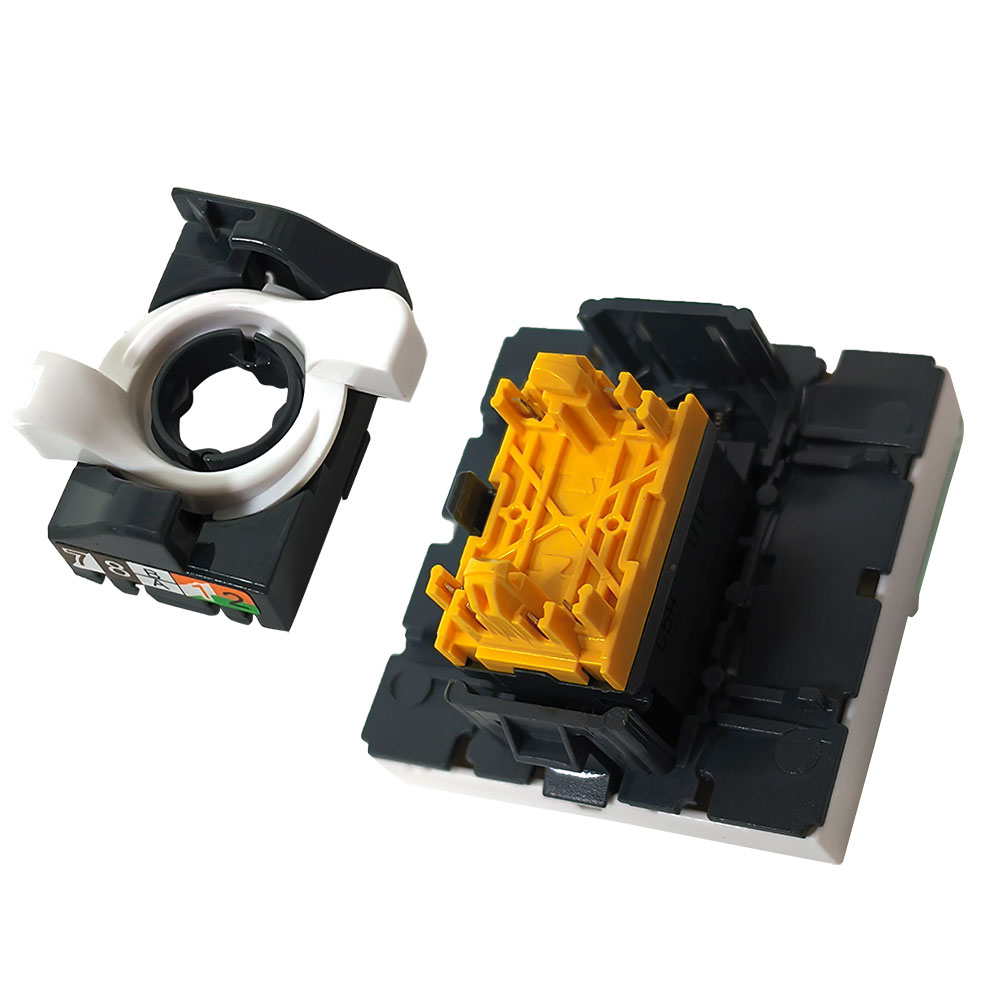

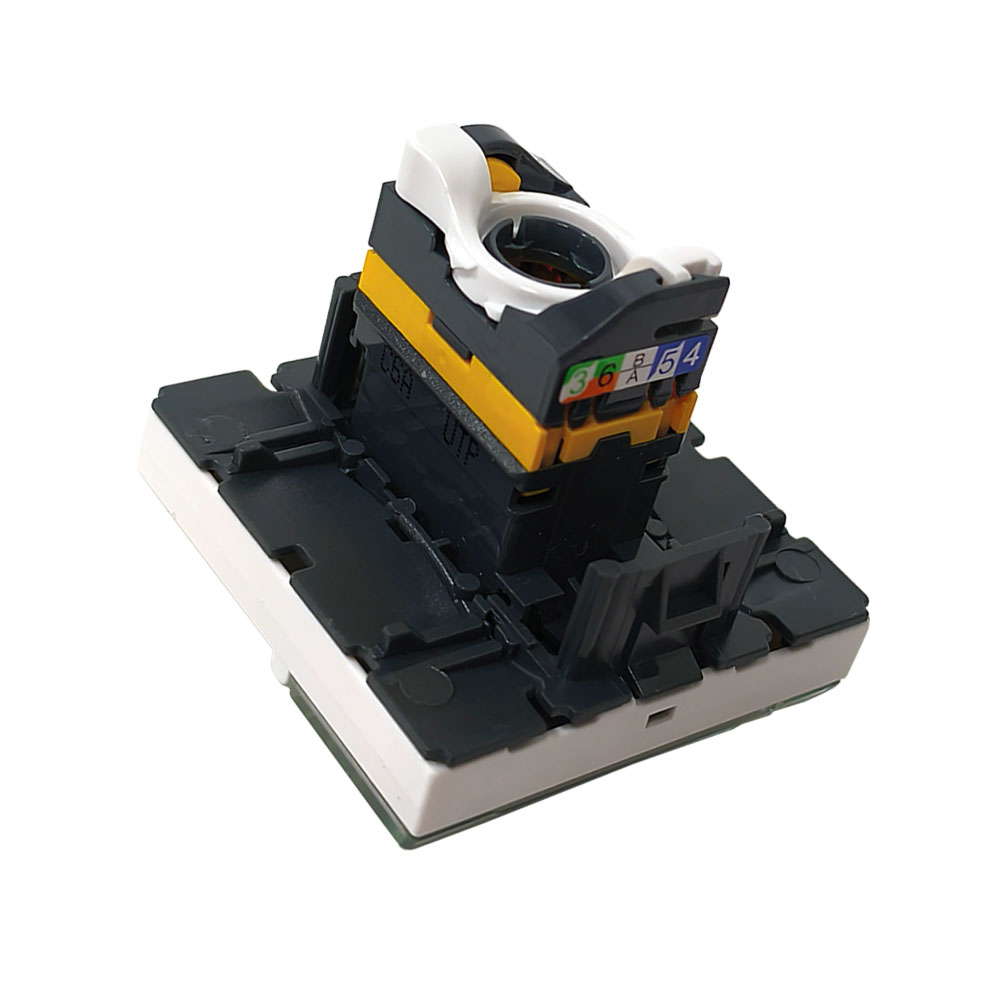

Modular Jack for Legrand is an RJ45 modular jack that complies with international standards and is suitable for network cabling systems. Its high-performance design meets the TIA/EIA 568 Category 6 standard and is widely used in data communications and Ethernet connections.
Product Specifications
Product Name | Legrand type Keystone Jack |
Type | UTP Connect Keystone Jack |
Application | Network Cabling System |
Color | White Standard FACEPLATE |
Keyword | french legrand Face Plate |
Category | CAT6A Face Plate |
Packing | 1 pcs /Bag |
Classification | RJ45 |
Size | 45*45MM |
Product Manual
RJ45 series port according to international standards; IDC: phosphor bronze, tin plated, can be pressed 22~26AWG solid line; card
line repeat times: >80 times; eight line reed: phosphor bronze, gold plated 6Minch, 15Minch, 30Minch , 50Minch; plug and socket
insertion and removal times: >1000; technical performance in line with TIA / EIA568 super six standards.
Electrical performance
1. Insulation resistance: not less than 500mΩ
2. Withstand voltage: DC1000V (AC750V) 50~60Hz1 minute
3. Contact resistance: no more than 20mΩ
Mechanical behavior
Service life: the number of insertions and withdrawals is not less than 1000 times. The number of repetitions of the terminal card
line is not less than 300 times.
working environment
1. Working temperature: -10 ° C ~ 60 ° C
2. Working temperature: 10~90%
Features
Complies with international RJ45 port standards and is compatible with mainstream network devices.
IDC terminals are made of phosphor bronze tinning, can connect 22~26AWG solid wires, and support repeated crimping for more than 80 times.
Eight-core reeds are made of phosphor bronze and provide 6μ, 15μ, 30μ, and 50μ gold-plated options to ensure excellent conductivity.
Plug-in life exceeds 1000 times, ensuring long-term stable use.
Insulation resistance ≥500mΩ, withstand voltage DC1000V (AC750V), contact resistance ≤20mΩ.
Applicable to -10°C60°C operating temperature, humidity 1090%.
Compatibility
Compatible with Cat.6, Cat.6A and below category network cables.
Applicable to 22~26AWG solid wires, compatible with standard wire crimping tools.
Adapt to Legrand and other standard patch panels, panels and modular systems.
Advantages
High durability: plug and unplug times up to 1000+, terminal clamp life 300+ times.
Excellent transmission performance: meets Category 6A standards, reduces signal loss, and improves network stability.
High-quality materials: phosphor bronze terminals + gold-plated contacts to ensure low contact resistance and high conductivity.
Wide adaptability: suitable for different environmental temperature and humidity, with strong adaptability.
Material and durability
Terminals: phosphor bronze tin-plated to ensure long-term stable connection.
Contacts: optional 6~50μ gold plating to enhance oxidation resistance and improve transmission stability.
Durability: port plug and unplug 1000+ times, IDC terminals can be crimped 300+ times, ensuring long-term reliable use.
Scope of use
Enterprise network: suitable for company IT rooms and data centers.
Home wiring: suitable for high-speed home wired network connections.
Industrial application: strong temperature and humidity resistance, can be used for network wiring in harsh environments.
Education/Hospital: Suitable for high-density cabling scenarios such as schools, hospitals, and commercial buildings.
