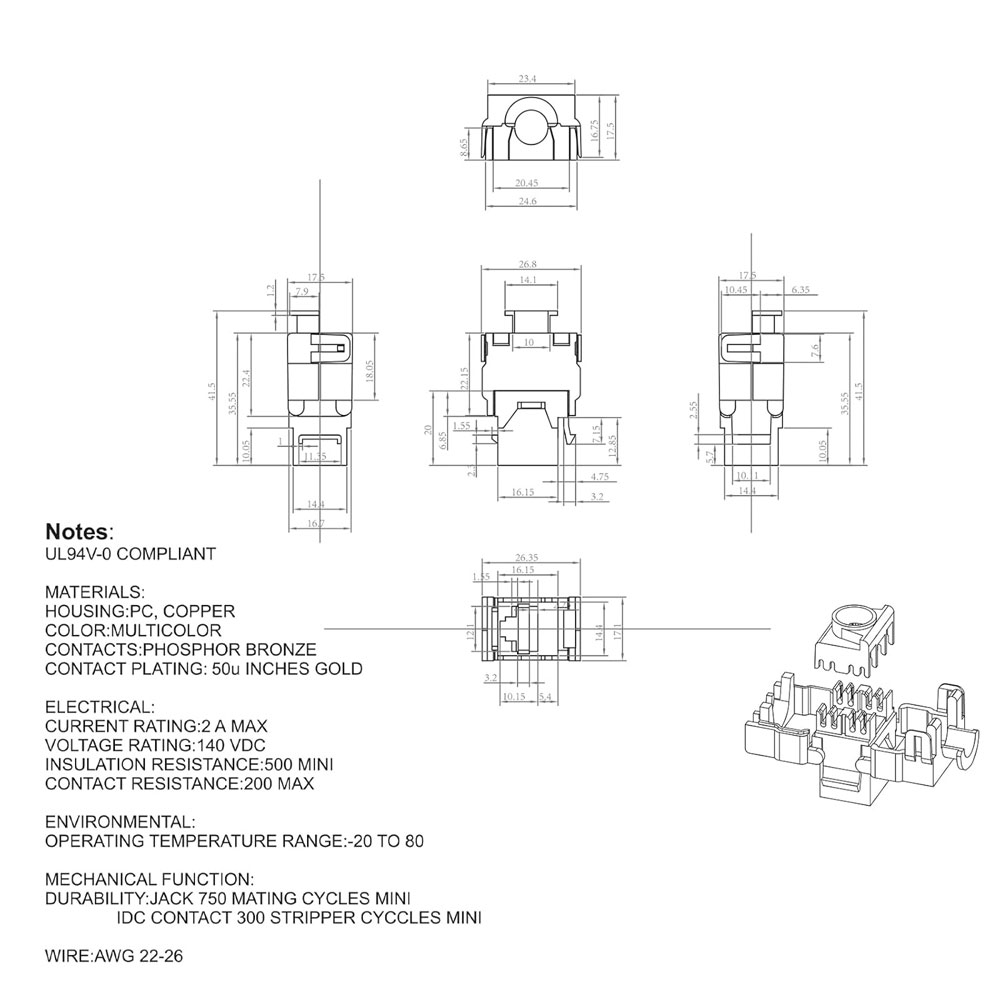

Specifications
* cable entrance diameter range: 5.5 mm ~ 9.0 mm.
* Insulation diameter range: 0.95 mm ~ 1.62 mm.
* Solid and Stranded conductor: 22 AWG ~ 24 AWG for Cat. 8 KSJ.
* Wire schemes: T-568A/ T-568B.
* ISO/ IEC TR Category 8 11801-9901 Ed.1.0 (2014-08).
* Applicable for the PoE and the PoE Plus (IEEE 802.3af and IEEE 802.3at).
Physical Characteristics
* Housing and cover material: zinc die-casting with nickel plating.
* Insertion force: 30N max. (IEC 60603-7).
* Retention strength: 7.7 kg between jack and plug.
* Operating temperature: -10°C ~ 60°C (ISO/ IEC 11801, ANSI/ TIA-568C.2).
* Mating cycles: 750 cycles minimum.
* IDC mating cycles: 20 re-installation cycles minimum.
