Toolless Cat6 Keystone Jack

Toolless Cat6 Keystone Jack is a tool-free network module socket that supports the Cat6 standard and can be used in high-speed Ethernet wiring systems. Compared with traditional RJ45 module sockets, it does not require wiring tools, and can be installed directly by crimping, which improves construction efficiency.

Product details

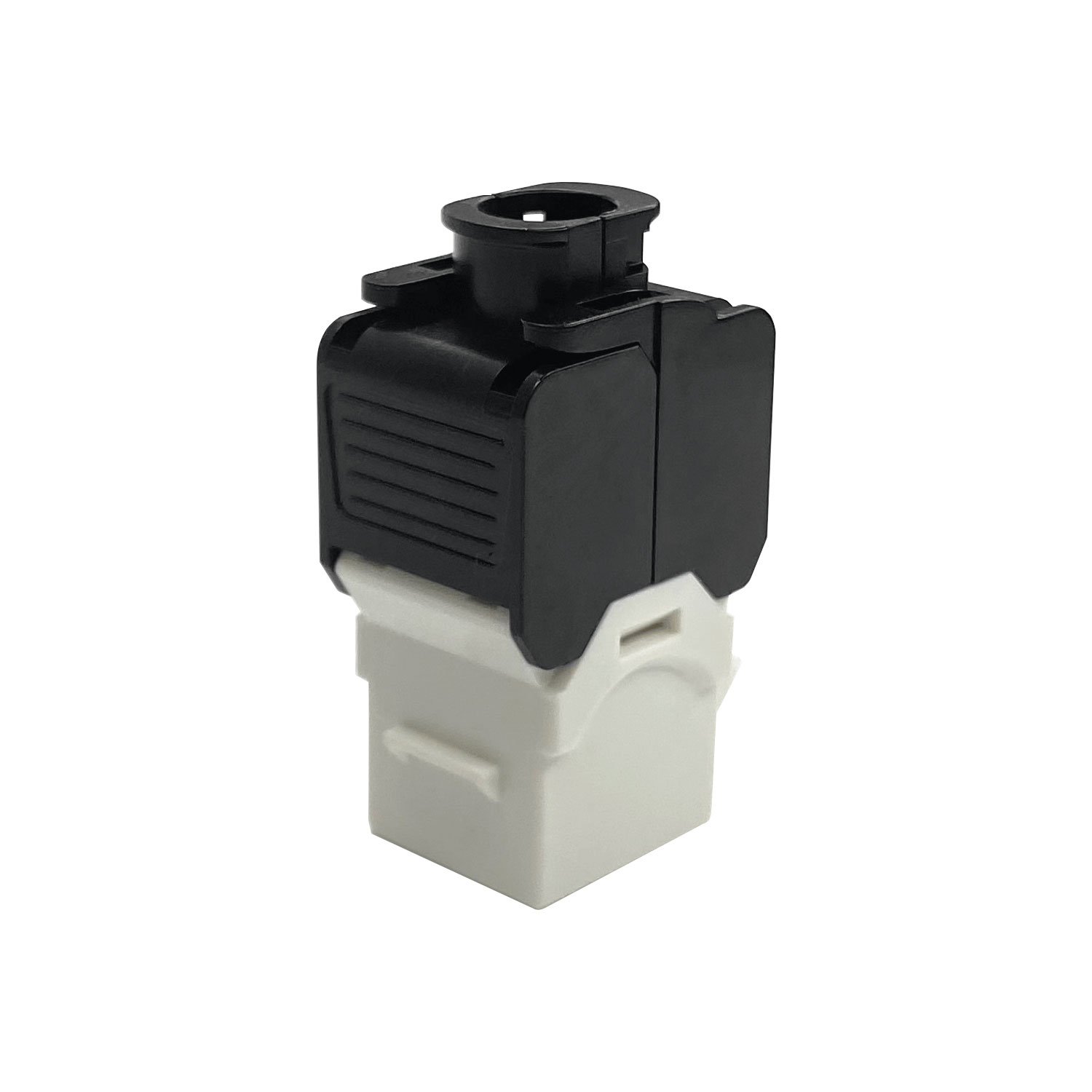

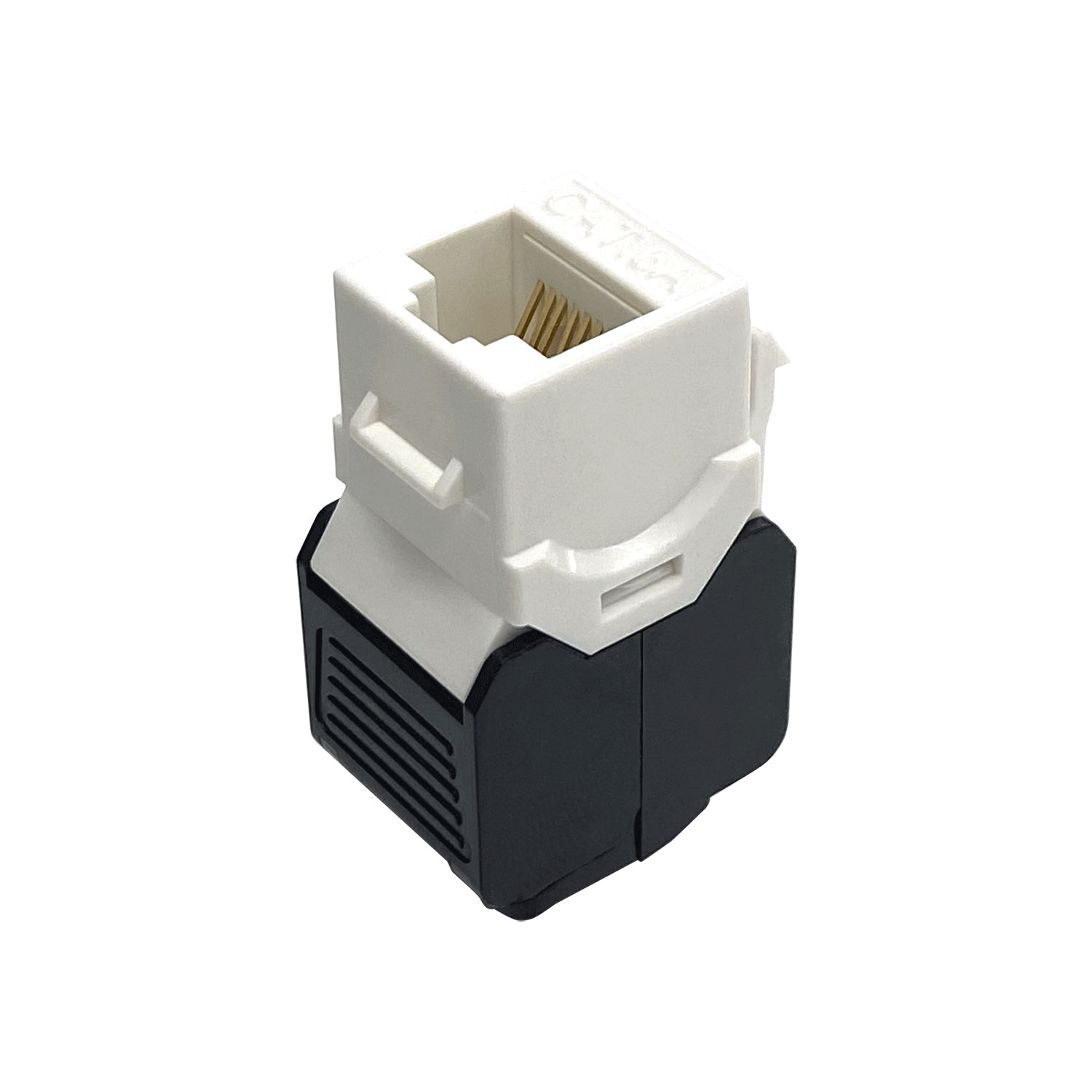

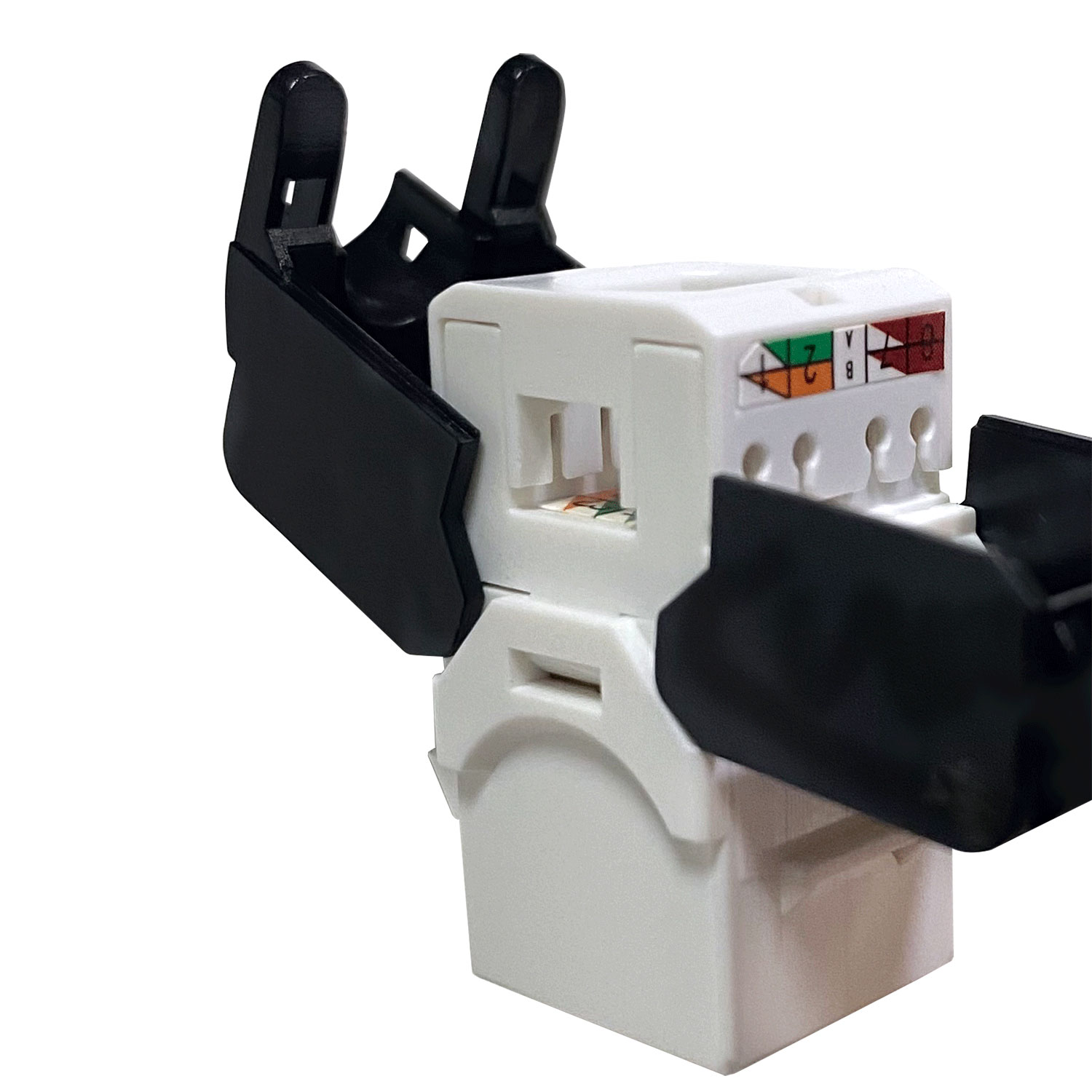

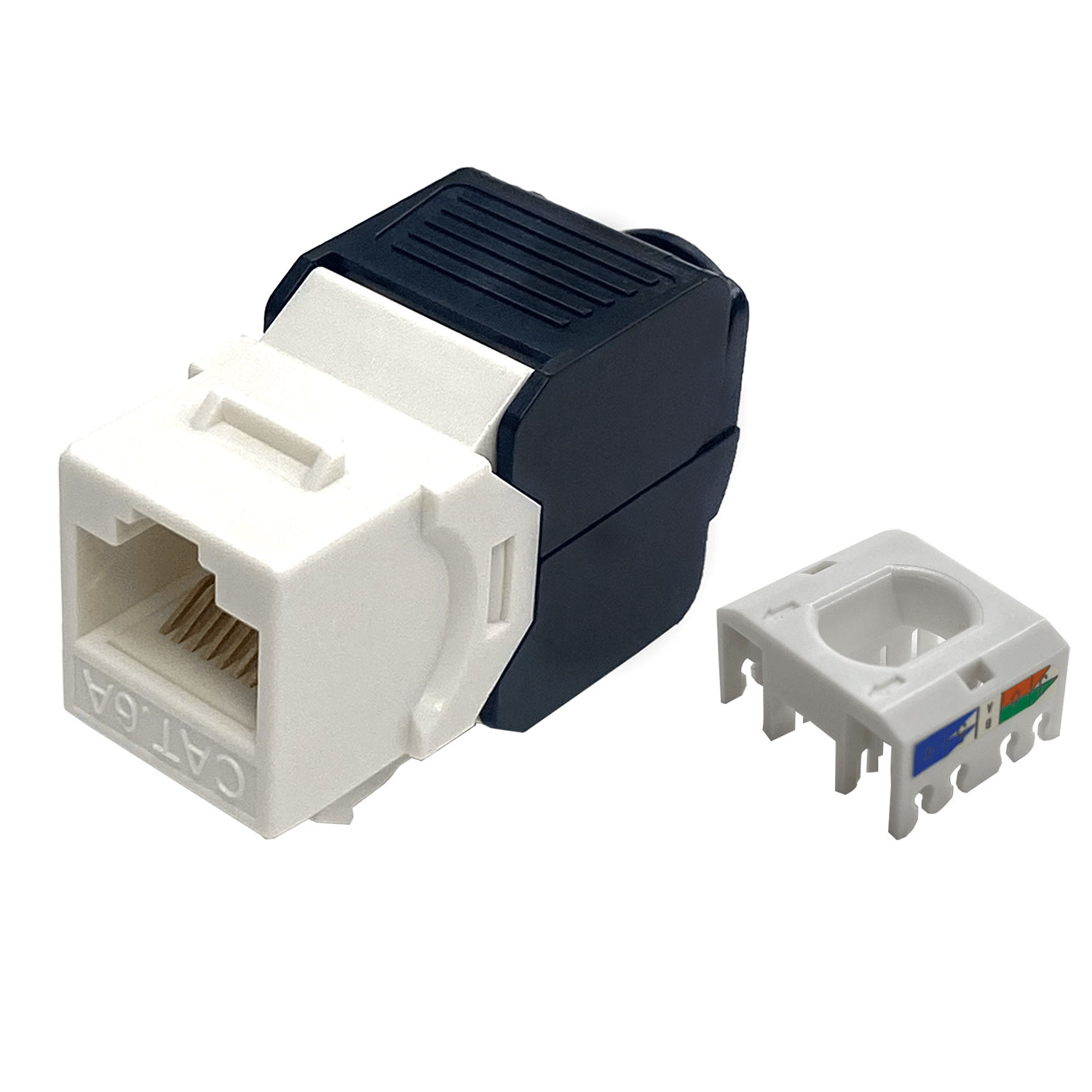

Cable fixing is done with an integrated locking cover that can be opened at any time without tools to allow multiple use of the keystone module, e.g. for field applications

Robust plastic locking lever on top of the Keystone Jack - LSA strip color coded to EIA/TIA 568 A&B - Tensile load between socket and plug 7.7 kg

In combination with modular patch panels and modular network enclosures, the Cat.6A keystone module is ideal for structured building cabling

The mounting connector of the Category 6A/Class EA keystone module allows tool-free installation of network cables with wire cross-sections between AWG 26/7 and 22/1

In combination with modular patch panels and modular network enclosures, the Cat.6A keystone module is ideal for structured building cabling

The cable connection is made via an integrated cover that can be opened at any time without tools to allow multiple use of the keystonem module, e.g. B. Can be used multiple times in field applications

The mounting connection of the Category 6A/Class EA keystone module enables wire cross-sections between AWG Network cable between 26/7 and 22/1 can be installed without tools

Function

Fast network connection: used for port connection of routers, switches, panels and other devices to ensure stable transmission of Gigabit network.

Simplified installation: no tools are required, wiring can be completed by manual pressing, suitable for professional and non-professional users.

Wide compatibility: applicable to UTP Cat6 RJ45 Keystone Jack standard, compatible with Keystone patch panels and panels.

Features

Tool-free design: simplified installation, no wiring tools are required, reducing construction time and cost.

High-performance transmission: supports Gigabit Ethernet (10/100/1000Mbps), reducing signal loss and interference.

Stable and durable: high-quality phosphor bronze gold-plated terminals are used to improve oxidation resistance and durability.

Strong compatibility: applicable to toolless cat6 keystone jack, keystone utp cat6 standards, compatible with a variety of wiring systems.

The FANGBEI G6411-06401 keystone module is unshielded and offers you excellent performance and connection quality for your network with tool-free mounting connection. Its compact design allows for a series of installation of 24 pieces in 483 mm (19 inches) 1HE panels. It is compliant with category 6A / 10GBase-T channel, ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC 11801:2002.

Scope of use

Data center: server room, high-density network cabling.

Commercial office: enterprise LAN, building integrated cabling.

Home network: smart home, audio-visual equipment network connection.

Education and medical: high-speed and stable network cabling in campus, hospital, etc.

FAQ

Are these Toolless Cat6 Keystone Jacks compatible with all Keystone panels?

Usually compatible with standard Keystone patch panels and panels, but it is recommended to contact FANGBEI to confirm the specifications match before purchasing.

Are these sockets truly Cat6 compliant and support Gigabit networks?

High-quality UTP Cat6 RJ45 Keystone Jacks meet the Cat6 standard, and FNGEBI can provide product certification (such as UL, RoHS).

Is the tool-free design reliable and will it loosen after installation?

High-quality toolless cat6 keystone jacks have a stable snap-on design to ensure tight wiring and avoid loosening after long-term use.

Will the material of the socket terminal affect the signal quality?

Yes, it is recommended to choose phosphor bronze gold-plated terminals to reduce signal loss and oxidation risks.

Can FANGBEI guarantee long-term and stable supply?

Yes, FANGBEI has a large inventory capacity and provides long-term procurement agreements to maintain long-term good cooperation.

How to avoid damage during transportation?

Bulk transportation should be packaged in shock-proof and moisture-proof packaging, and choose a reliable logistics method.

What after-sales services does FANGBEI provide?

FANGBEI provides warranty, return and exchange, and technical support. Please confirm the relevant policies before purchasing.

Can the color, brand LOGO or special specifications be customized?

Some keystone utp cat6 suppliers support OEM/ODM customization, and the appearance and parameters can be customized according to needs.
