PV Panel Crimping Tool Kit

PV Panel Crimping tool kit is a crimping tool kit for photovoltaic panel installation, connecting the cable to the connector of the solar panel. It is mainly used in the solar industry, power industry, construction industry, electrical engineering, etc.

Product Detail

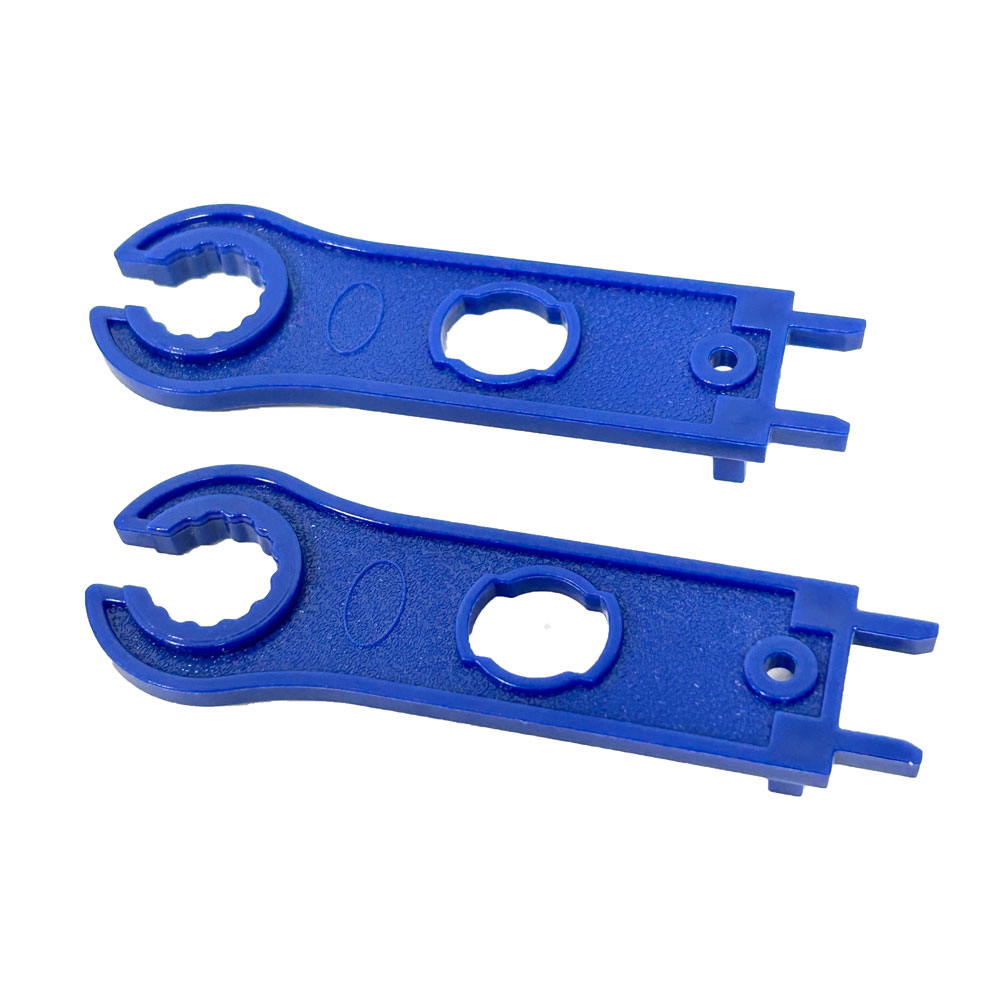

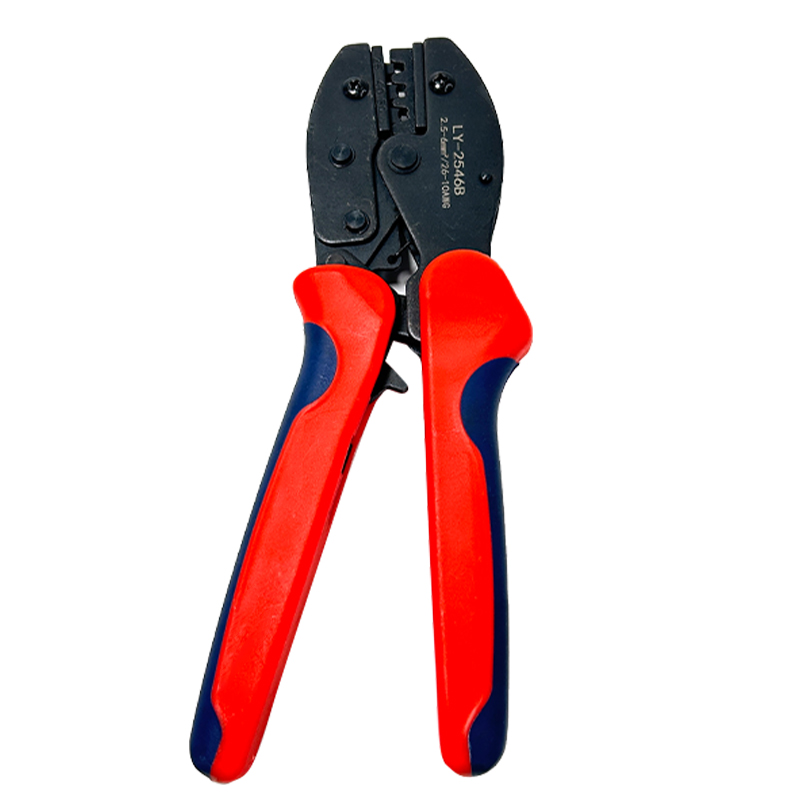

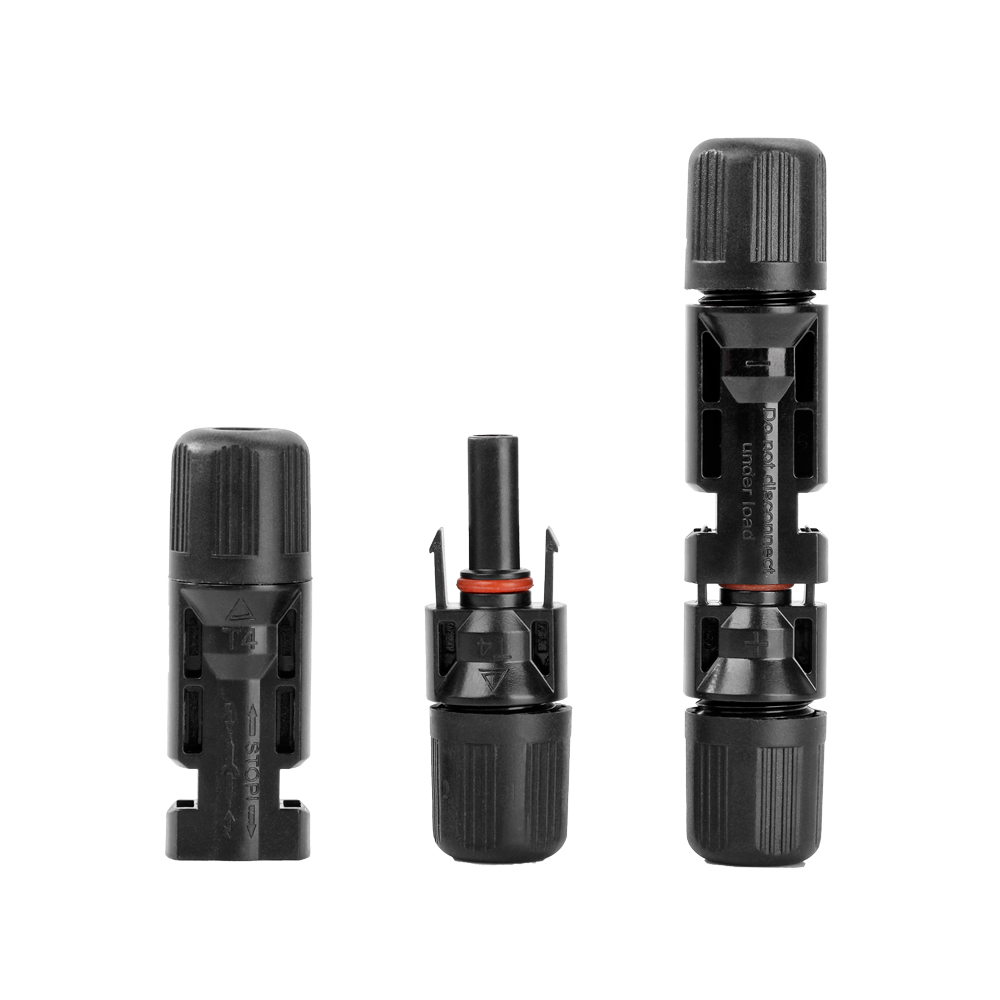

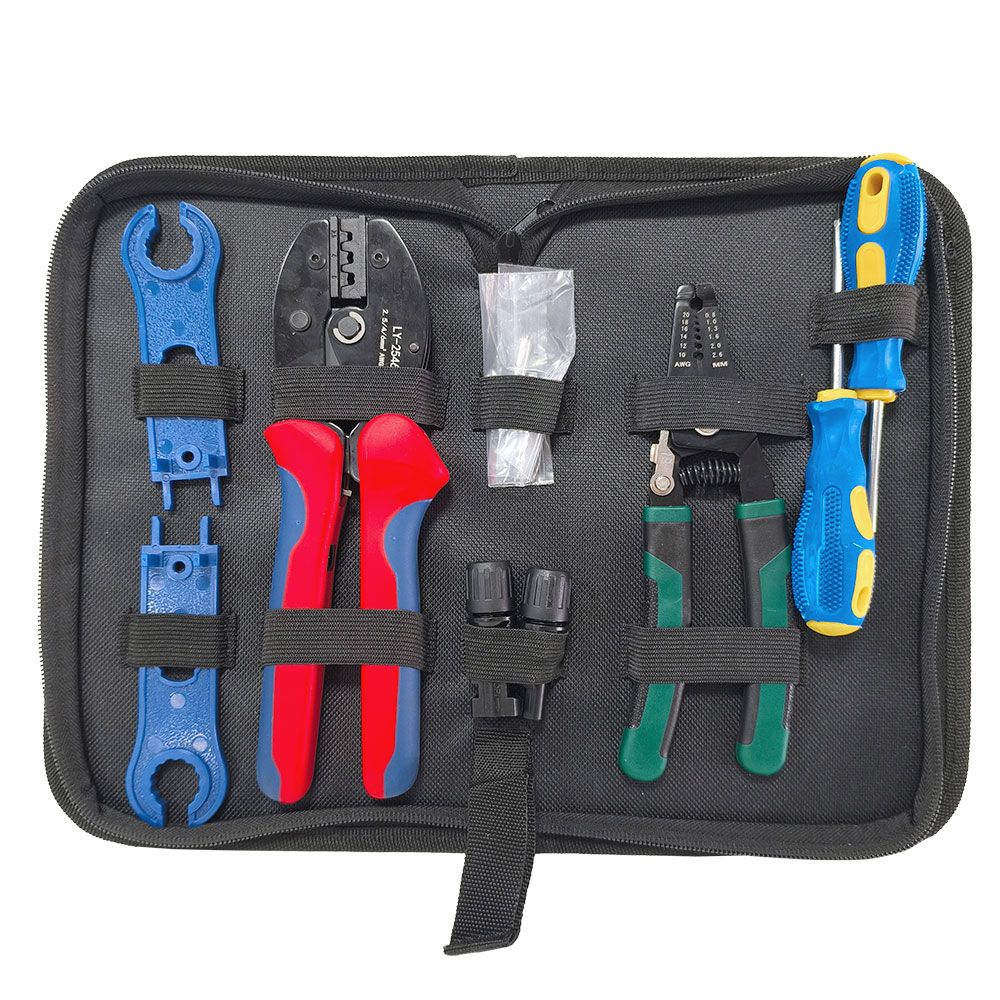

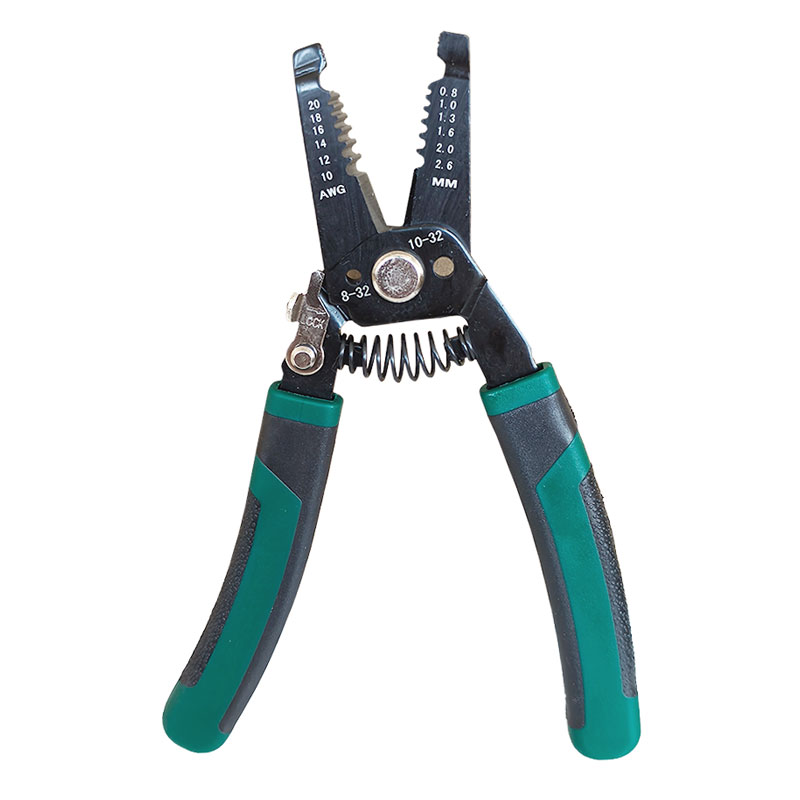

This solar (PV)tool kit is used for the installation of photovoltaic system. The toolkit contains a pair of Solar connector Wrenches, one Crimping tool , one Six stall Wire stripper,male &female inner core,Solar connector . For cutting, stripping, crimping terminals of solar connector connectors, and installing solar connector nuts .

Features

1)Simple on-site processing

2)Mating safety provided by keyed housings

3)Accomodates PV cable with deferent insulation diamaters

4)High Voltage and Current carrying capacity

5)CCC and CE approved

6)High quality

7)Competitive price

Product Specifications

Benefits of using the PV Panel Crimping Tool Kit

Improve efficiency: The fast crimping operation can shorten installation time and improve work efficiency.

Connection reliability: Ensure a firm connection between the cable and the connector, reduce the risk of failure, and improve system stability.

Adaptability: Supports connectors of various sizes and types to meet different installation needs.

Easy to use: Most tools are simple in design and easy to master, even non-professionals can quickly get started.

Cost savings: Reduce maintenance costs caused by poor connections and extend the service life of the system.

Safety: Provides reliable electrical connections to reduce safety hazards such as short circuits and fires.

In the solar industry, the use of PV Panel Crimping Tool Kit

Cable connection: used to crimp solar cables to connectors to ensure safe and stable electrical connections.

System installation: During the installation of solar power generation systems, quickly and effectively connect different components to improve overall installation efficiency.

Maintenance and repair: During regular maintenance or repair, damaged cable connections can be easily replaced or repaired to ensure the normal operation of the system.

In the power industry, the use of PV Panel Crimping Tool Kit

Cable connection: used to connect cables in power equipment and systems to ensure the safety and stability of electrical connections.

Equipment maintenance: During the regular maintenance of power facilities, damaged cable connections can be quickly repaired or replaced to reduce downtime.

Diversity and adaptability: suitable for a variety of cables and connectors to meet the needs of different power projects, with strong flexibility.

Efficient installation: When installing new equipment, the use of this tool can improve connection efficiency and reduce manual operation time.

Enhanced safety: Provides reliable electrical connections, reduces the risk of short circuits and other electrical failures, and ensures safe operation of equipment.

Use of PV Panel Crimping Tool Kit in electrical engineering

Cable terminal connection: used to crimp cable terminals with various connectors to ensure the stability and safety of electrical connections.

Quick installation: During the installation of equipment or systems, the tool can be used to quickly complete cable connections and improve installation efficiency.

Customized applications: suitable for cables and connectors of different specifications and types to meet the needs of various electrical engineering projects.

Maintenance and repair: During equipment maintenance and troubleshooting, damaged cable connections can be quickly replaced or repaired to reduce downtime.

Training and education: In electrical engineering training, the PV Panel Crimping Tool Kit can be used as a practical tool to help students or new employees master cable connection technology.

FAQ

How to Use Solar Connector Tool?

When You Install the Solar Cable,

Step 1) Grip the Solar Connector Nose with the Solar Connector Spanner

Step 2) Grip the Base of the Solar Connector

Step 3) Loosen the Solar Connector to Lead the Cable Through

When You Want to Disconnect the Solar Connection,

A) Hold the Solar Spanner to Plug the Pin into the Solar Connection.

B) Press the Solar Connector into the Pin to Release the Connection.

What types of cables and connectors does the PV Panel Crimping Tool Kit work with?

It is used for many types of solar cables and connectors, including the common MC4 connector and other standard solar connectors, and generally supports cables of various specifications.

Are there any skills required to use the PV Panel Crimping Tool Kit?

It is important to know the correct crimping technique and operation method when using the tool kit. It is usually necessary to ensure that the cable stripping length is appropriate and the appropriate crimping die is selected to ensure a secure connection.

How to care for the PV Panel Crimping Tool Kit?

Maintenance methods include regular cleaning of the tool, checking the crimping die for wear, and ensuring that the mechanical part of the crimping pliers operates smoothly. Avoid humid environments when storing to extend the service life.

Can the PV Panel Crimping Tool Kit be used in other industries?

Although the PV Panel Crimping Tool Kit is mainly used in the solar industry, it can also be used in the power industry and electrical engineering to connect cables, and is suitable for the installation and maintenance of various electrical equipment and systems.

If the connection is not secure, what may be the reason?

A secure connection may be caused by a variety of reasons, including improper cable stripping length, choosing the wrong crimping die, improper operation, or tool wear. These problems can be avoided by ensuring that the correct procedures are followed and by regularly checking the status of the tool.
