Solar Crimping Tool Kit

Solar Crimping tool kit is mainly used for the installation and termination of solar cables to ensure a firm connection and good conductivity, strip the cable sheath for crimping, improve construction efficiency and enhance system safety.

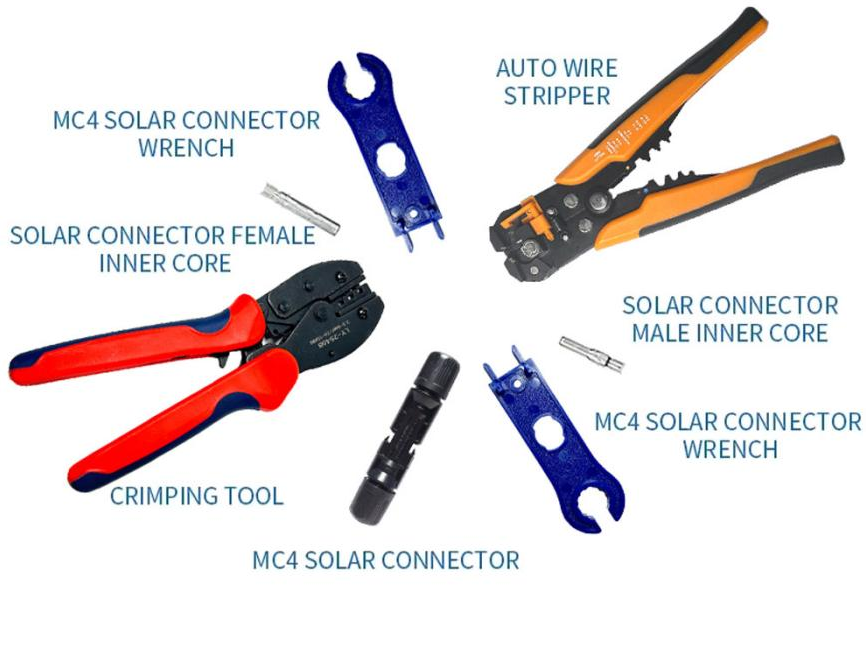

The following are the main functions and components of the Solar Crimping Tool Kit

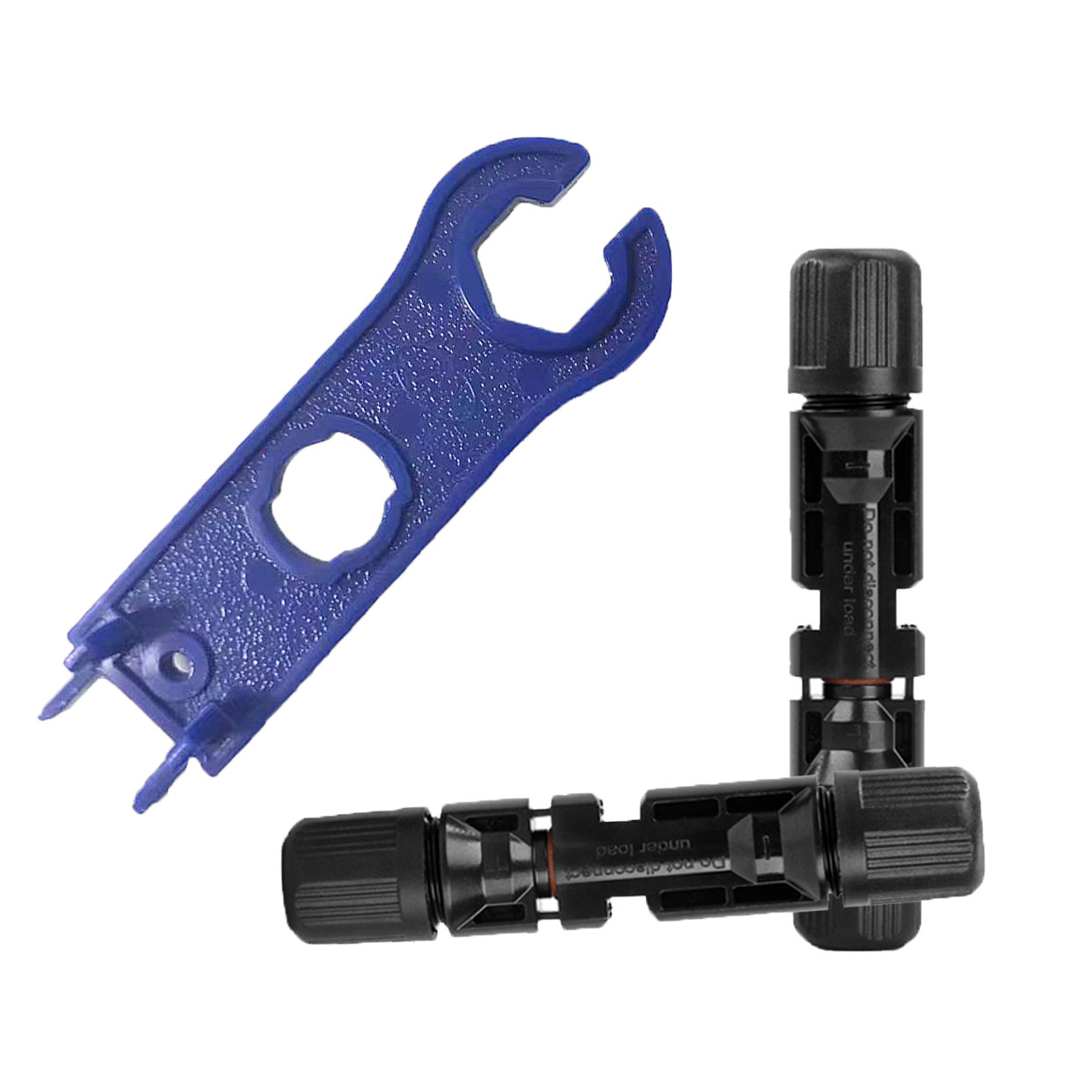

MC4 Solar Connector Wrench: This is a wrench designed for MC4 connectors, used to ensure the tightness and looseness of connectors when installing and maintaining solar photovoltaic systems, providing good mechanical connection and sealing to prevent water leakage and oxidation.

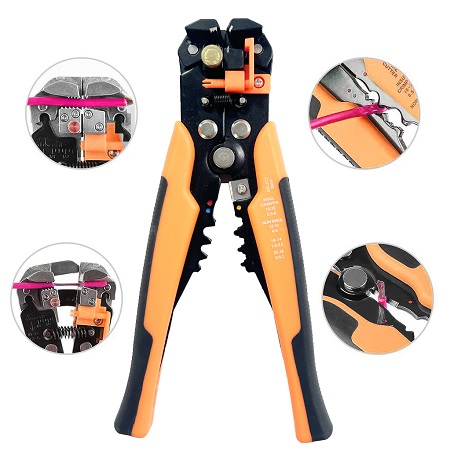

Auto Wire Stripper: The automatic wire stripper is a convenient tool for quickly stripping the insulation layer of the cable to expose the wire for connection. This tool can accurately strip the wire, reduce damage to the wire, and improve work efficiency.

Solar Connector Female Inner Core: The female inner core part of the solar connector, which is usually used to receive the male inner core to ensure the stability and conductivity of the connection. It is an important part of the solar cable connection.

Solar Connector Male Inner Core: The male inner core part of the solar connector, used with the female inner core, provides a good electrical connection. The male inner core and the female inner core together constitute the MC4 connector to ensure the efficient operation of the solar system.

MC4 Solar Connector: This is a commonly used connector in solar cable connections, with excellent waterproof and dustproof properties. MC4 connectors are widely used for electrical connections between solar photovoltaic modules to ensure the stability and safety of the system.

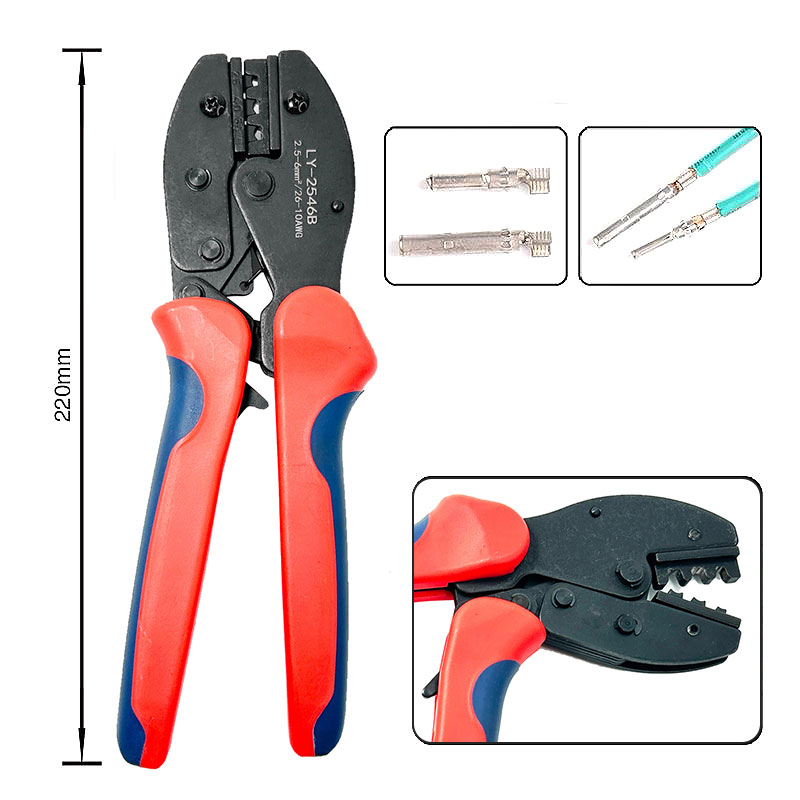

Crimping Tool: Crimping tools are used to firmly connect cable terminals to wires to ensure good conductivity and stable electrical connections. Crimping tools are essential equipment when installing solar cables, helping technicians complete connections quickly and efficiently.

These tools and components work together to install and maintain solar cables to ensure safe, efficient and reliable operation of the system.

Advantages:

Efficiency: Designed specifically for solar cables, it makes crimping and stripping operations faster and simpler, saving construction time and improving work efficiency.

Reliability: Through professional crimping tools, it ensures a firm connection between the cable terminal and the wire, thereby reducing power loss and reducing the risk of failure.

Safety: Good connection and insulation performance reduce the possibility of leakage and short circuit, enhance the overall safety of the system, and reduce the risk of fire.

Versatility: Many tool kits contain a variety of tools, such as wire strippers, crimping pliers, etc., which can meet different installation needs and provide a one-stop solution.

Easy to use: Even beginners can easily complete the installation and maintenance of cables with this tool kit, reducing the difficulty of operation.

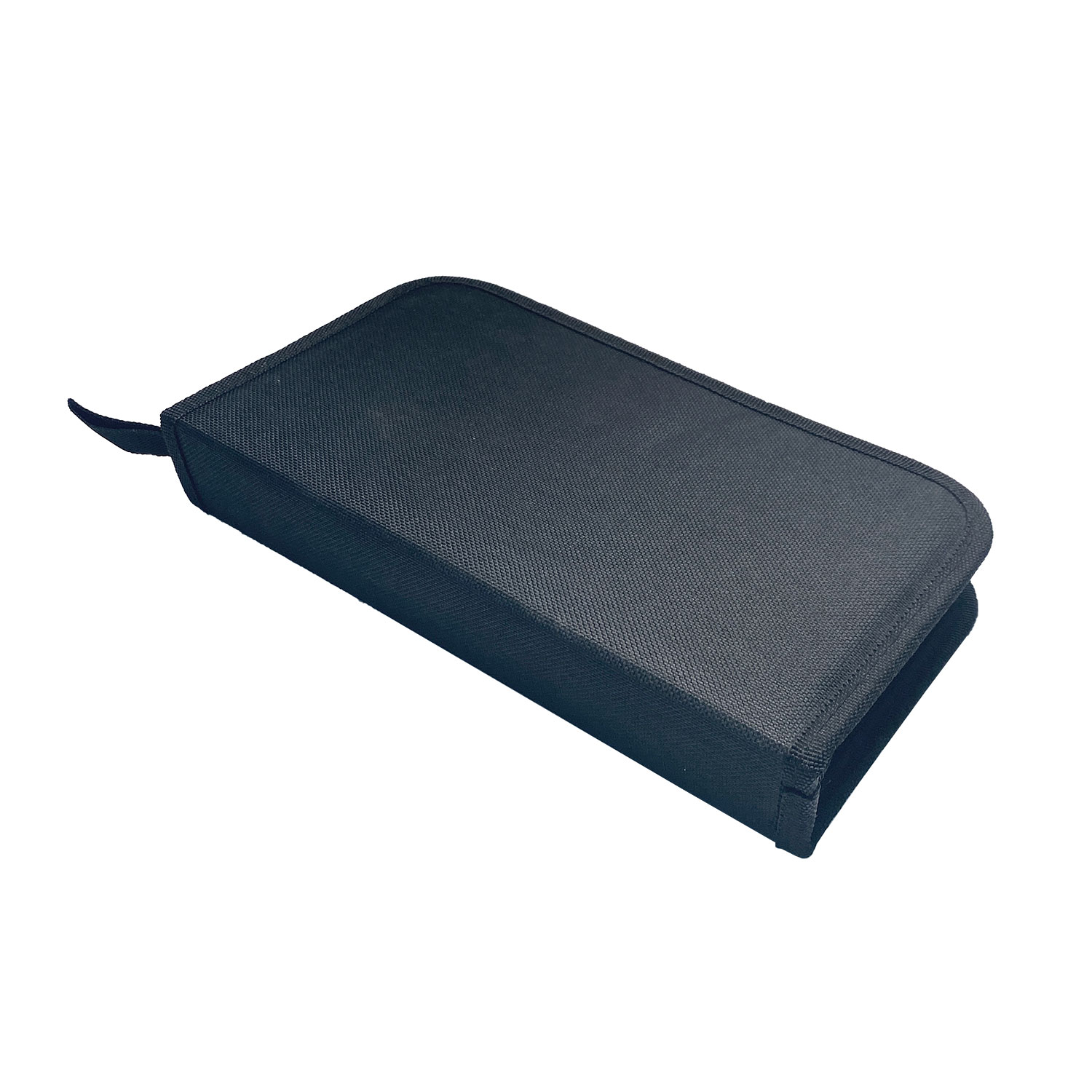

Portability: Usually equipped with a portable box or bag, it is convenient for technicians to use it at different construction sites, enhancing mobility and convenience.

Professionalism: Designed for the special needs of the solar industry, it ensures that the quality and performance of the tools meet industry standards and improves the professionalism of installation and maintenance.

Solar Crimping Tool Kit Main Application Areas:

Solar PV System Installation: Used to install solar panels, inverters and other components to ensure the reliability and safety of cable connections.

Solar Power Plant Construction: In the construction of large-scale solar power plants, the tool kit helps to quickly and effectively complete the crimping and termination of cables, improving construction efficiency.

Maintenance and Repair: Used to maintain and troubleshoot installed solar systems, including replacing damaged cable connectors and terminals to ensure the normal operation of the system.

Electrical Engineering: The Solar Crimping Tool Kit can also be used in other electrical engineering projects, such as cable connections for wind power, energy storage systems and related facilities.

Home Solar System: Used for the installation and maintenance of home solar power generation systems to help users complete the connection and termination of cables by themselves.

Research and Development: In the process of solar technology research and development, the tool kit can be used for cable connections in laboratories and prototype systems to support the testing and verification of new technologies.

Education and Training: In relevant vocational training and educational institutions, it is used to teach students and technicians the skills of solar cable installation and maintenance.

Through these application areas, the Solar Crimping Tool Kit plays an important role in promoting the development of the solar industry and improving the efficiency of renewable energy utilization.

FAQ

How to use a wire stripper?

Place the cable in the wire stripper, adjust to the appropriate stripping length, and gently squeeze the handle to strip the outer sheath.

How to prevent cable oxidation?

Apply an appropriate anti-oxidant to the connection to ensure that the connector is well sealed to prevent moisture from entering.

How to check the quality of the crimping?

Check that the connection is firm and you can gently pull the cable to ensure that the terminal does not fall off.

Can the crimping tool be reused?

Yes, the crimping tool is designed for long-term use, but the wear should be checked regularly to ensure its performance.

How to clean the tool?

Wipe with a clean cloth and appropriate detergent, and avoid using corrosive chemicals to avoid damaging the tool surface.

How to store the tool to extend its service life?

Store in a dry, clean place, avoid high temperature and humidity, and use a tool box for protection.

Is lubrication required during crimping?

Generally, crimping tools do not require lubrication, but a small amount of lubricant can be used on moving parts to ensure smoothness.

How to deal with failed crimping connections?

If the connection fails, the unqualified terminal should be cut off, the wire should be re-stripped and a new terminal should be used for crimping.
