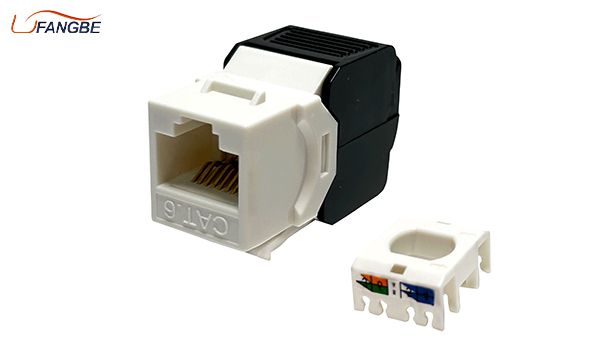

Ethernet Network Toolless Modular Cat 6 Inline Coupler Module 8p8c 180 Degree Utp Cat6 Rj45 Keystone Jack

1733705295490944

Transmission characteristics: Category 6A, Class EA.

Applications: Up to 500MHz,

10GBase standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+General

features: Suitable for 483 mm (19 inch) cabinet mounting, RJ45 sockets, 8P8C cable installation via LSA strips, colour coded according to EIA/TIA 568 A &BKabelfixFast-locking system. Tool-free mounting connection.

Technical features: material RJ45 socket: ABS UL 94V-0Contact

RJ45 Socket: Nickel plated phosphor bronze, 0.5μ gold-plated contact

LSA cutting terminal: Crown LSA+, UL 94V-2,

Galvanized Phosphor BronzePCB : FR4, UL 94V-0

Physical properties: insertion force: 30 N max. (IEC 60603-7-5).

Tensile load: 7.7 kg between socket and plug.

Operating temperature: -20 °C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).

Socket cycle socket: > 750 according to ISO/IEC 11801, IEC 60603-7-5.

Terminal: > 200 according to ISO/IEC 11801, IEC 60603-7-5

Core mount: 22-26 AWG solid and stranded conductorInsulation resistance: > 500
MOhmContact resistance: < 20 milliohm

Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/mass)

Keystone modules

The keystone modules allow easy and tool-free installation of network and installation cables. Combined with a modular Patch Panel and modular network junction boxes, the keystone modules are ideal for contemporary, structured building wiring.
The Keystone Jacks are designed compatible with the switch programs of popular manufacturers.

Building wiring

In the roof region, the use of shielded components of category 6A (Class EA) in the field of LAN building wiring is the latest technology. A transmission frequency of 10 GBit per second (10 GBase-T) is achieved on a wiring distance of 90 metres in the permanent link with CAT 6A components. Comparison: A wiring route with CAT 6 class E components transmits a maximum of 5 Gbps per second (5GBase-T).

Areas of use

The Keystone modules are widely used in the field of network technology, such as: Patch fields floor tank holder, connection sockets (surface-mounted) table socket strips, hat rail adapter (DIN-Rail) patch panel modular network connection sockets For multimedia applications, we also carry keystone modules with USB and HDMI interfaces to our range.
