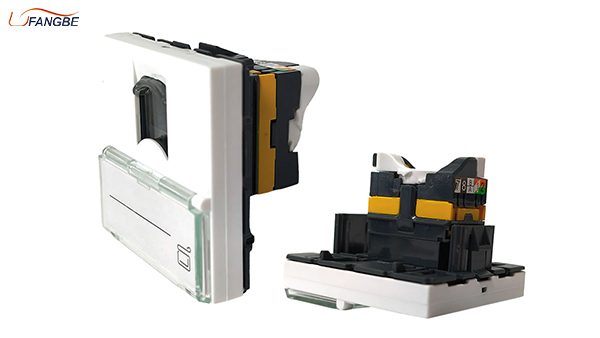

French Rj45 Cat6 Keystone Module Network Cat 6 Jack 180 Degree Stp Utp Toolless Modular Jack for Legrand 45mm

2024-12-30

Product Manual

RJ45 series port according to international standards; IDC: phosphor bronze, tin plated, can be pressed 22~26AWG solid line; card
line repeat times: >80 times; eight line reed: phosphor bronze, Gold Plated 6Minch, 15Minch, 30Minch , 50Minch; plug and socket
insertion and removal times: >1000; technical performance in line with TIA / EIA568 super six standards.
Electrical performance
1. Insulation resistance: not less than 500mΩ
2. Withstand voltage: DC1000V (AC750V) 50~60Hz1 minute
3. Contact resistance: no more than 20mΩ
Mechanical behavior
Service life: the number of insertions and withdrawals is not less than 1000 times. The number of repetitions of the terminal card
line is not less than 300 times.
working environment
1. Working temperature: -10 ° C ~ 60 ° C
2. Working temperature: 10~90%
