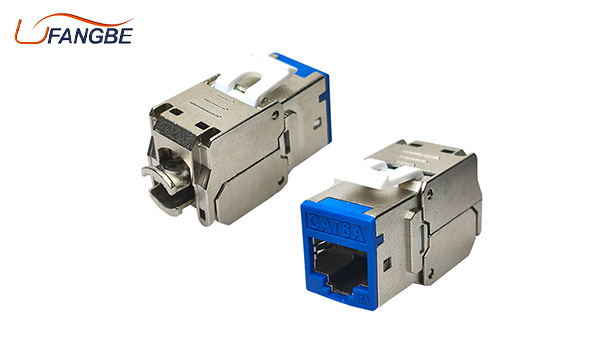

RJ45 Cat. 6A FTP Tool Free Keystone Jack

1737075737382678

Type: RJ 45, 8P8C, Category 6/ Category6A/ Cat 8/ Cat8/ C8, Shielded, Foiled twisted pair, Female jack, Ethernet connector

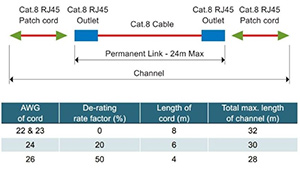

Channel performance verified, met the PoE and the PoE Plus standards (IEEE 802.3af and IEEE 802.3at), and compliant with the ANSI/ TIA 568-D standard, the Cat 8 FTP Keystone Jack fits with 1U 24 port and 1U 48 port blank panels. It is applicable in various environments from small home networks to large data centers. With shielded cables and plugs, the Category 8 solution has outstanding characteristics and performance to future proof the entire network.

Specifications

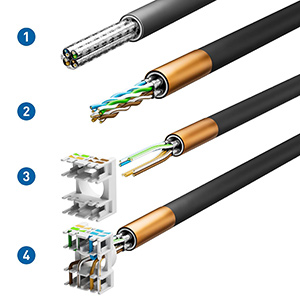

* Cable entrance diameter range: 5.5 mm ~ 9.0 mm. 1737075959410166

* Insulation diameter range: 0.95 mm ~ 1.62 mm.
* Solid and Stranded conductor: 22 AWG ~ 24 AWG for Cat. 8 KSJ.
* Wire schemes: T-568A/ T-568B.
* ISO/ IEC TR Category 8 11801-9901 Ed.1.0 (2014-08).
* Applicable for the PoE and the PoE Plus (IEEE 802.3af and IEEE 802.3at).

Physical Characteristics

* Housing and cover material: zinc die-casting with nickel plating.
* Insertion force: 30N max. (IEC 60603-7).
* Retention strength: 7.7 kg between jack and plug.
* Operating temperature: -10°C ~ 60°C (ISO/ IEC 11801, ANSI/ TIA-568C.2).
* Mating cycles: 750 cycles minimum.
* IDC mating cycles: 20 re-installation cycles minimum.
