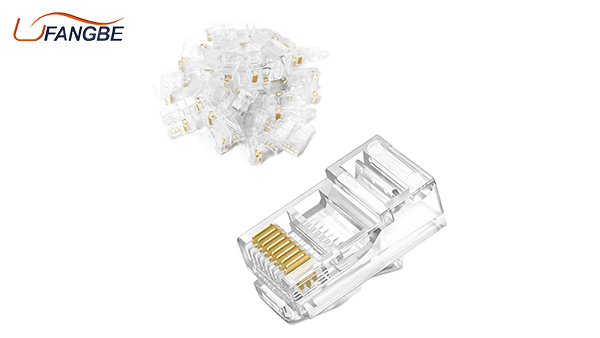

UTP EZ RJ45 Connector Manufacturer

Make sure you use the correct RJ45 pinout wiring diagram for your needs.

There are a couple of standards and there is also crossover cable, so make sure you study the RJ45Pinout diagrams below to get the right one for your needs. The following is for T568 B (most common).

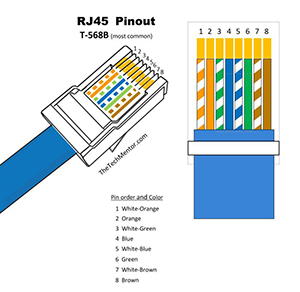

This R] 45 pin diagram (T-5688) shows everything you need in one handy image, with iso-view andR145 color order, suitable for printing quite large.

RJ45 Pinout Diagram

As I explained, the most popular and most common is the T568B standard which has surpassed the firststandard (T568A). Either configurations wire the pins straight through (i.e. pins 1 through 8 on one endare connected to pins 1 through 8 on the other end, provided you wire them the same at each end).

Please do also check out the Rj45 Pinout POEm below which is easy to memorize with the aid of thediagram provided and it means you won't ever forget it!If you agree the POEm might work for you or others, please share it with your colleagues!

Note: as stated above, the tab is away from you (hidden behind) as you count the pins 1 to 8Here is a simple Rj45 Pinout Diagram (which still shows the wiring you need):
