Semi Automatic pass through Crystal Head Connector lan Wire Forming Machine crimper Rj45 cable EZ Crimping Machine

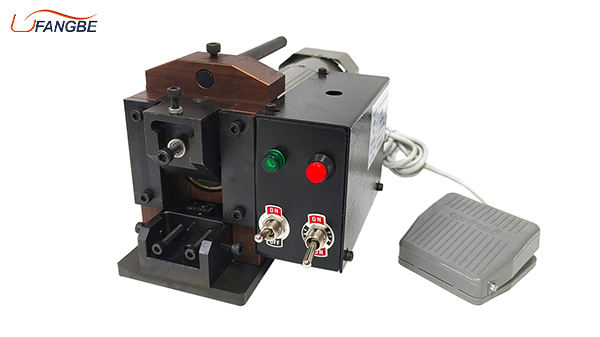

Switch/reset switch: total3 gear adjustments

1. Auto-sensing : put into the crystal head willautomatic sensing crimping

2. Sleep position: no buttons can be operated

3. Foot pedal position: can only be operated witha pedal controller

Switch adjuster: total 2 gearadjustments

1. Power switch: control the power on

2. Mold adjustment switch: activates the operationof the mode adiustment control switch

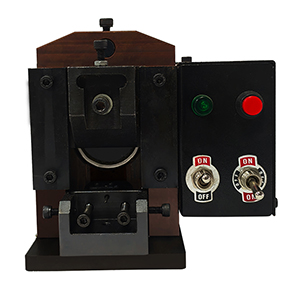

Indicator light/troubleshooting light

1. lf the light is not on, means the power is notturned on, and you can turn it on by turningthe mode adjustment switch to gear 1 ; lf thelight is still not on, please check whether the fuseat the back is blown

Moud adjusting controller

Control the knife mold up/ down

Upper knife mold: adjust thelifting height of knife mold

1. lf the pressure is not enough, please loosen theupper knife fixing screw and fine-tune thepressure adjustment nut

2. lf it is not punctured, fine-tune the height of theinner blade

3. Support a variety of knife molds

Down mold seat: fine-tuneleft and right positions

1.Loosen the two screws on the front, then adjustthe left and right nuts
