Fiber Optic FTTH Tool Kit

 * Mini Optical power meter Optional switch for backlight display, automatic shutdown function, support for manual calibration, support for lighting, automatic saving of wavelength
 * FC Male to LC Female Hybrid Optical Fiber Adapter Adaptor Connector 2.5 to1.25mm
 * Optical Fiber Cutting Tool Kevlar Scissors The Electrician Cut Optical Fiber Cut
 * 6C Fiber cleaver Cable Cutting Knife Fiber Optic Knife Tools cutter High Precision Cleavers 12 surface blade for FTTH

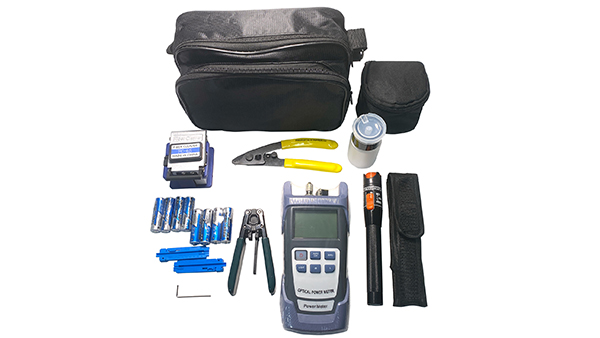

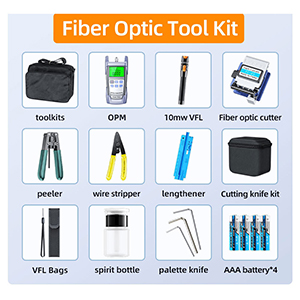

 * Fiber Optic FTTH tool kit carries with most of the testers you need.
Fiber Kit Introduction:
Mini Optical power meter
Power measurement range:-70 ~ + 3
Wavelength range:800 ~1700
Connector:FC/SC/ST
Probe type: InGaAs
Red light working wavelength: 650nmPower Supply:2*AAA (not included)Net weight of the instrument: 145g

Fiber optic stripping Tool
Scope:3.1 x2.0 mm Pixian fiber optic cable
Fiber diameter: 125 um Tight cladding
diameter:250 um
The number of fiber core:1-2
Operating Temperature:-20 ~ + 45 Centigrade

6C Fiber Cleaver
Applicable fibers Singlemode or Multimode Use
Fiber Diameter:125um
Coating Diameter :250um ~900um
Typical Cleave Angle :0.5 Degrees
Cleave Length :9-16mm(Single Fiber-0.25mm Coating)10-16mm
Blade Life Time 48,000 cleaves(3,000 per blade position)

Visual fault locator
Output power: 10KM
Longitud de onda:650 nm + 20 nm
Conector:2.5 mm conector universa
2 HZ GLINT o salida continua
