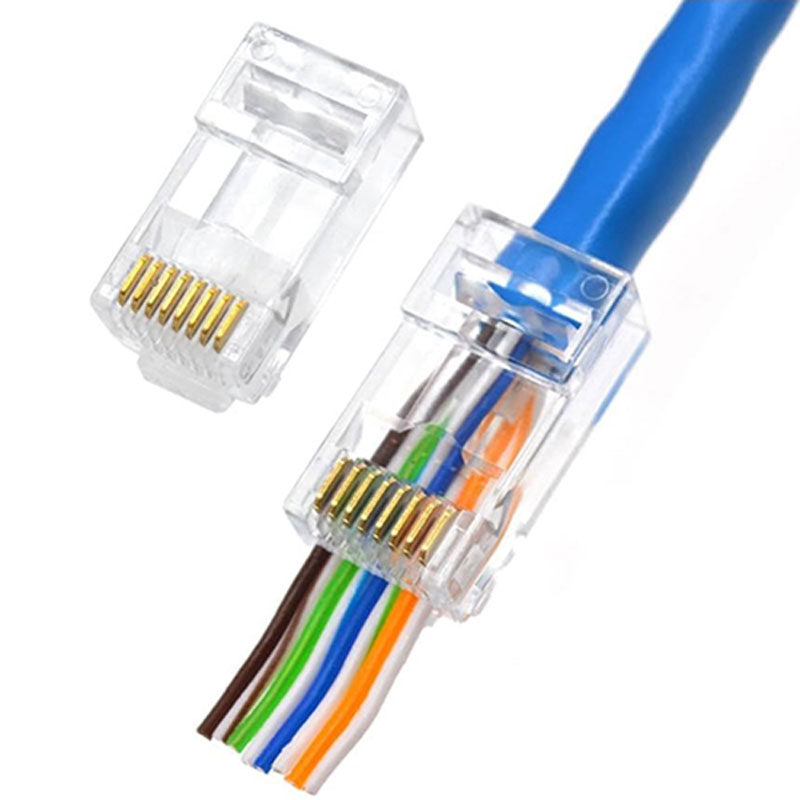

Main features and precautions of UTP EZ RJ45 Connector

The main features of the UTP EZ RJ45 Connector are

Toolless Installation: Enables quick and easy termination without requiring specialized tools, reducing installation time and complexity.

Integrated Load Bar: Guides wires into correct position for termination, ensuring proper alignment and minimizing wiring errors.

Color-Coded Wiring Slots: Simplifies the wiring process by facilitating identification and insertion of wires, reducing the likelihood of mistakes.

Universal Compatibility: Compatible with various UTP cables including Cat5e, Cat6, and Cat6a, making it suitable for diverse networking applications.

Reliable Performance: Ensures secure connections and stable data transmission, maintaining consistent performance in networking environments.

Durability: Constructed from high-quality materials, it offers resistance to wear and tear, ensuring long-term reliability.

Space-saving Design: Compact size suitable for use in tight spaces and crowded network racks, facilitating efficient cable management.

Cost-effective Solution: Eliminates need for specialized tools, reducing overall project costs while maintaining high-quality connections.

When using UTP EZ RJ45 Connectors, it's important to adhere to certain precautions and guidelines to ensure proper installation and optimal performance

Cable Compatibility

Ensure that the UTP EZ RJ45 Connector is compatible with the type and category of UTP cable being terminated (e.g., Cat5e, Cat6, Cat6a). Using the correct connector for the cable type is crucial for maintaining performance and adherence to standards.

Correct Orientation

Verify the orientation of the connector before termination. The connector should be aligned properly with the cable, and the wires should be inserted into the appropriate slots in the correct order. Incorrect orientation can lead to connectivity issues and signal degradation.

Wire Preparation

 Properly prepare the UTP cable before termination. This includes straightening the wires and trimming them to the appropriate length to ensure they fit securely into the connector without excess slack. Untwisting the wires beyond the recommended length can degrade performance, so exercise caution during preparation.

Wire Termination

Insert the wires into the color-coded slots of the EZ RJ45 Connector according to the wiring scheme (e.g., T568A or T568B) being used. Ensure that each wire makes good contact with the connector's contacts and that there are no loose strands or bare conductors protruding from the connector. A proper crimping tool may be used to ensure secure termination.

Avoid Over-crimping

Exercise caution to avoid over-crimping the connector during termination, as excessive force can damage the connector or cause deformation. Apply just enough pressure to secure the wires in place without causing damage to the connector body.

Inspection

After termination, visually inspect the connector to ensure that all wires are properly seated and terminated. Check for any signs of damage, such as bent or broken conductors, which could affect performance.

Testing

Perform thorough testing of the terminated cable using appropriate cable testing equipment to verify proper connectivity, wire continuity, and compliance with relevant standards. This helps identify any wiring errors or connectivity issues before putting the cable into service.

Environmental Considerations: Consider the environmental conditions in which the terminated cable will be installed. Ensure that the connector and cable assembly are suitable for the intended application and environment, taking into account factors such as temperature, moisture, and exposure to chemicals or other hazards.
