1. Practical: This solar panel multimeter can test maximum power point and open circuit voltage.
2. Multiple detection: The solar panel MPPT tester has AUTO MPPT detection and manual MPPT detection. No additional Power Supply
required
3. Safety Guarantee: The solar panel MPPT meter has overvoltage, overtemperature, overcurrent protection, safe and .
4. Reverse connection and power MPPT tester has solar panel reverse connection and rated power protection.
5. Material: The LCD MPPT solar panel multimeter is made of ABS material and is sturdy and resistant for long service life.
Specification:
Item Type: Solar Panel Multimeter
Material: ABS

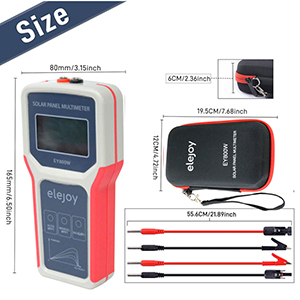

Size: Approx. 165x80x30mm/6.5x3.1x1.2in
Model: EY800W 3rd generation
Power: 5-800W
Voltage: 12-60V
Current: 0-35A
Power mode: Solar panel power
Features: LCD display function
Target Audience: Solar Panel Manufacturers, Solar Panel Distributors, Solar Panel Installers, Solar Panel Users, Solar Panel Fans
TROUBLESHOOTING
EXPLANATION OF ERRORS
No display Reverse connection Check input polarity
Show overpowerOver rated powerUse within the rated power range of the instrument
Over temperature display Over temperature To be used after cooling
Over voltage display Over voltage Use within the rated voltage range of the instrument
Show over current Over current Use within the rated current range of the instrument
