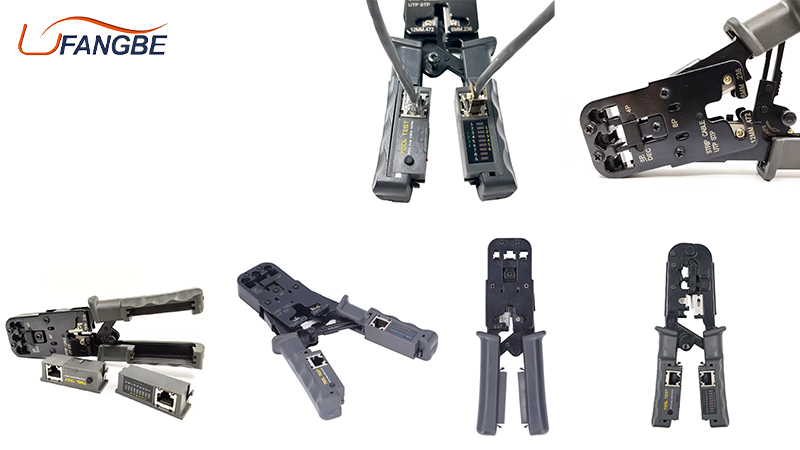

Lan Network RJ45/RJ11/RJ12 Multi wire cutter crimping tool pliers crimper cable tester tool For 8p/6p/4p

Tooltest is a small hand held cable map tester.It enables network professionals to quickly and easily test Ethernet twisted pair cable for wiring continuity,opens,shorts,and mis-wires.With a single push of the TEST button.Tooltest will automatically test cable and indicate the result of the cables pin to pin configuration.

Festures:

· Testing for both UTP/STP cable

· Testing cable for continuity,opens,shorts,mis-wires

· Pin to pin indication

· Dual model test function:Single and continuous Test

· Auto power saving

· Low power indicator

· Single and multi wired cable crimping

· Modular crimping plugs:8P8C(RJ45),6P6C(RJ12),6P4C(RJ11)

· Integrated Cable Stripper and cutter

· Crimping tool and cable tester in one

· Detachable cable tester

LED display descriptions

· LED #1- #8:8 Pin wire confirguration

· LED #1:Low battery indicator:LED flashes repeatedly to indicate the unit is low in battery before each testing

· LED G:Shield/Ground

· RJ11(color-green):Pin1-Pin4,RJ12(color-yellow):Pin1-Pin6,RJ45(color-White)

· Power Supply Main unit:DC4.5V(3*LR44 type batteries)

Warning

· White putting the battery,please pay attention to the polarity of the battery,in order to prevent the overheated phenomenon of battery

· White testing the 6P6C,6P4C cable,please plug it into the jack of tester harder due to it is mini-sized design
