F Type Connector for RG6 Cable Coaxial Straight Plug Compression Type

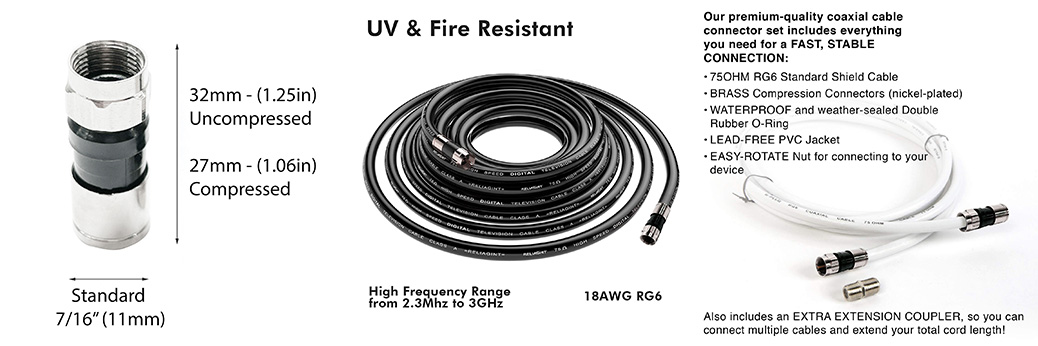

1719880429600744

F CONNECTORS

F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, it can already be used for
having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly
that it's characteristic is whorl, the price is suitable.
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the
structure, performance are the same as F type.

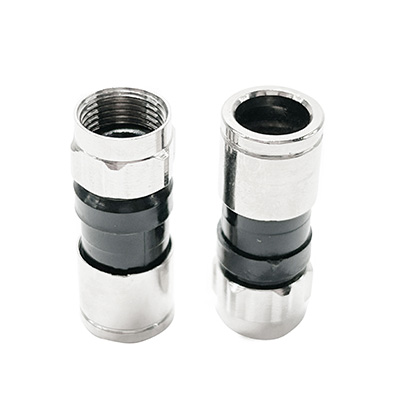

F Type Connector for RG6 cable Coaxial Straight Plug Compression Type

RG6 Cable F Plug Connector

1.Material of body: Copper/zinc alloy
2.Gender: Plug/male
3.Cable: RG6
4.Cable connection: Compression
5.Impedance: 75Ω
6.Orientation: Straight

Specifications

Major Technical Characteristics
Temperature Range	一40 degree to +60 degree
Vibration	100m/S²(10~500Hz), 10g
Impendance	75 ohm
Frenquency Range	DC~1GHZ
Working Voltage	170V r.m.s at sea level
Workstandinging Voltage	500V r.m.s at sea level
Center Contact	≤10m Ω
Outer Contact Resistance	≤5m Ω
Insulation Resistance	≥1000M Ω
Center conductor	≥0.2N
Voltagge Standing Wave Ratio
Straight	≤1.20
Right Angle	≤1.30
Dutability (Mating)	≥500(cycles)
Materials
Body	Brass.........................Nickel
Insulator	Delrin.........................Natural
Contact Pin	Brass.........................Gold
Ferrule	Copper......................Nickel
Suitable Cable
Type	RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)
