F Type Connector for RG6 Cable Coaxial Straight Plug Compression Type

2024-07-08

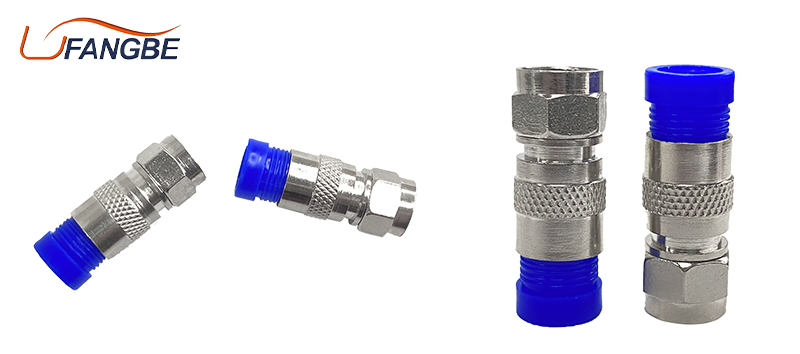

1720399482745285

F CONNECTORS

F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, it can already be used for
having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly
that it's characteristic is whorl, the price is suitable.
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the
structure, performance are the same as F type.


F Type Connector for RG6 cable Coaxial Straight Plug Compression Type

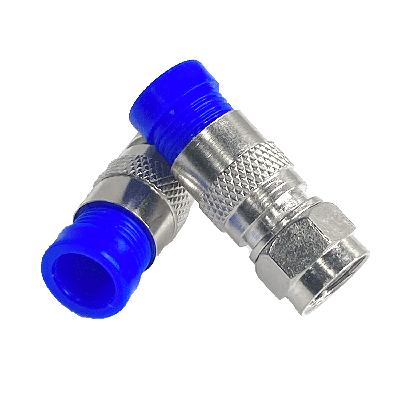

1720399383659617



RG6 Cable F Plug Connector
1.Material of body: Copper/zinc alloy
2.Gender: Plug/male
3.Cable: RG6
4.Cable connection: Compression
5.Impedance: 75Ω
6.Orientation: Straight
Specifications
Major Technical Characteristics
Temperature Range
一40 degree to +60 degree
Vibration
100m/S²(10~500Hz), 10g
Impendance
75 ohm
Frenquency Range
DC~1GHZ
Working Voltage
170V r.m.s at sea level
Workstandinging Voltage
500V r.m.s at sea level
Center Contact
≤10m Ω
Outer Contact Resistance
≤5m Ω
Insulation Resistance
≥1000M Ω
Center conductor
≥0.2N
Voltagge Standing Wave Ratio
Straight
≤1.20
Right Angle
≤1.30
Dutability (Mating)
≥500(cycles)
Materials
Body
Brass.........................Nickel
Insulator
Delrin.........................Natural
Contact Pin
Brass.........................Gold
Ferrule
Copper......................Nickel
Suitable Cable
Type
RG6, RG58, RG59, RG174, RG179, RG316. (More
Option, please contact US)
