Why would you choose the Fangbei Solar Panel Cable Connectors?

* Fangbei solar panel connectors are made of the highest quality materials to ensure the long term durability, heavier and sturdier than other similar products in the market.

* This solar connector is specifically designed for connecting Photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.

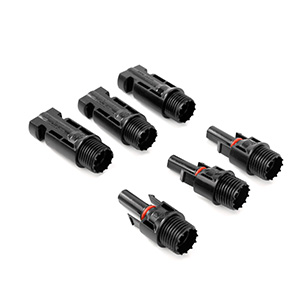

Panel Mount Solar Connector Solar Photovoltaic 4 Bulkhead PV Connector Panel Mount MC4 1000V

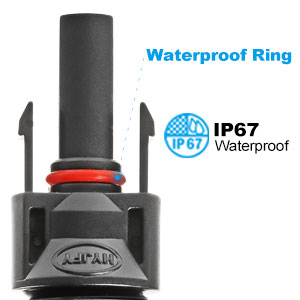

IP67 Waterproof

* Waterproof Ring - Seal rings for better waterproof effect
* Protection Class:IP67 test report No.50352770 0001, Date: 28.07.2016

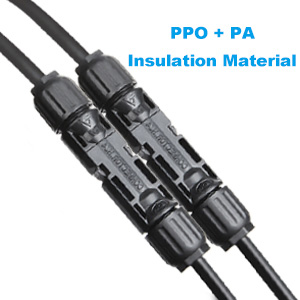

Highest PPO+PA Material

* PPO+PA insulation material With excellent aging resistance and UV endurance, can against any types of terrible weather.
* Contact Material:Copper,Tin Plated

Insulation Diameters

* Compatible with PV cables with different insulation diameters (6.10±0.15mm )
* cross section range: 1x4mm2
* Maximun voltage:1000V
* Maximun operating current:30A
* Level of security:II

1721351024569180

Installation:

Male connector into the female connector insertion point,hear the “popping”soung proof assembly qualified.
If you want to separate male and female header connector,you can use the special tool or your finger connecting the two points
out of.
Required Tools:
Wire Stripping pliers
Line pressing pliers
MC4 special wrench
Include：
X Mc-4 Solar Panel Cable connectors
X Assembly Tool
