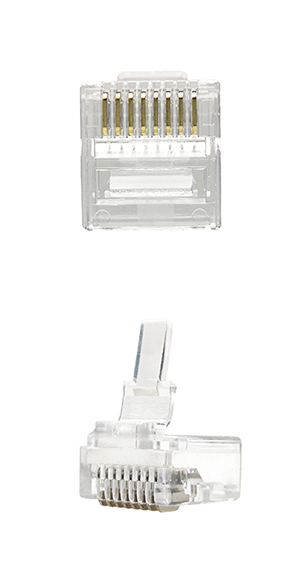

Gold Plated contact withstrong conductivity
Gold-plated treatment, strong conductivitywear resistance, oxidation resistance,support 1u 3u 6u 15u 30u 50u.
Applied to all RJ45interfaces，Used for engineering wiring and wire connection.
1) All modular plugs RJ11 RJ12 RJ45 Connectors are available:
8P8C, 8P4C, 6P4C, 6P2C, 4P4C, 4P2C; RJ11/RJ12/RJ45/RJ48 connector, UTP/FTP/STP/SFTP/SSTP, color modular plugs, or UK plugs are all
available.
2) Gold plating thickness: gold flash, FU,01,03, 06, 15, 30, 50U”.
3) UL/RoHS compliant.
4) Imported materials:
Imported polycarbonate material with good transparency and flexibility.
5) Designed according to FCC standard, and fully compatible with different jacks.
6) Standard packing: 1000pcs or 100pcs/bag with a sticker to mark specification.
For round cable, featuring gold plated contacts for the best possible connection. Manufactured from a leader in the Network Cables
industry, Make your network function to it's maximum potential
Electrical performance |
Rated current: | 1.5 AMPS@25℃ |
Rated voltage: | 125 VAC |
Insulation resistance: | 1000 MΩMin.@500V DC EIA-364-21C |
Compressive strength: | 1000 V AC RMS or 1500 V DC @ 0.5mA 50 Hz or 60 Hz /min |
Mechanical property |
Fit strength: | 57.83N Min.EIA-364-98 |
Service life: | 1000 insertions Min.EIA-364-9C |
Environmental performance |
Operating temperature: | -20℃~+70℃ |
Storage temperature: | -10℃~+40℃ |
Materials |
Plastic case: | polycarbonate PC |
Flame retardant class: | UL94V-0 |
