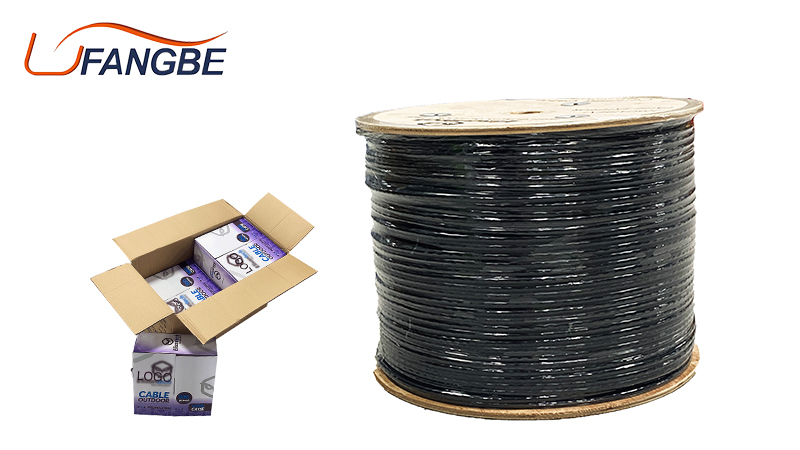

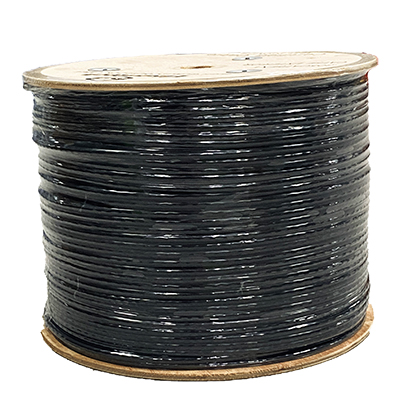

SHIELDED TWISTED PAIR MULTI CORE CAT6 STP CABLE

1722818700350936

Product Name	SHIELDED TWISTED PAIR MULTI CORE CAT6 STP cable
Inner Conductor	Material	CCS/ CCA/ CCAG/ CCC/ BC
Inner Conductor	Diameter	0.56mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric )	Material	Color-coded PE (Polyethylene)
	Thickness	≥ 0.21mm
	Diameter	1.03mm ± 0.01mm
Cross Separator	Material	Plastic
Shielded Layer	Material	Al Foil
Braided	Material	CCA, Aluminum, Copper, TC and so on
	Type	32, 48, 64, 80, 96, 112, 128, 144
	Diameter	0.08mm, 0.10mm, 0.12mm
Twisted Pair	N/A	Pair 1: Blue, White/ Blue
		Pair 2: Orange, White/ Orange
		Pair 3: Green, White/ Green
		Pair 4: Brown, White/ Brown
Outer Jacket	Material	New PVC (Rip code, Optional)
	Thickness	≥ 0.65mm
	Nominal O.D	6.80mm ± 0.10mm
Reference Standard	Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature	-20℃ to +70℃
Supports Transmission	Digital and analogue voice, data and video signal

High Quality Internet Provider Cat5 Cable 305m 24AWG

1. Meet the 100MHz bandwidth requirements specified by the TIA/EIA568-C.2 standard for Cat.5E.
2. The core adopts 4 pairs of solid core oxygen-free copper conductors with a conductor diameter of 24 AWG
3. Plug and pull cycle>1050 times
4. Packing method: 305 meters / boxcable utp cat5e

Material Instruction

1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.
