19 Rack Mount Fiber Patch Panel

19 Rack Mount Fiber Patch Panel is mainly used to organize and manage fiber connections in fiber networks and is usually installed in a standard 19-inch rack.It provides a centralized interface to terminate and connect fiber jumpers, ensuring that fiber connections are neat and orderly, and easy to maintain and troubleshoot. By effectively managing fiber connections, Rack Mount Fiber patch panel can improve network performance, reduce losses, and ensure the stability and reliability of fiber networks.

About this item

When building structured cabling systems, patch panels are used in racks and telecommunication cabinets for cable mounting in order to provide a high-quality commutation. A separate patch panel port is designated for each line. A patch panel is a block of jacks, the number of which corresponds to that of ports. E.g., a block of 24 jacks is a 24-port panel.

Numerical markings are put on the ports at the front of the panel. At the back of the panel contacts contain colour and Numerical markings. There are areas for additional marking.Patch panels differ in the number of ports, category and mounting technique. By the number of ports, 12-, 24- and

48-port patch panels are most widely spread. By the standards, category 5e and 6 patch panels are mostly used.

The main commutation mean is patch cords (a sections of cable, usually up to 5 m long, of the appropriate category with plug-type connections at the ends). They are used to connect patch panel ports, active equipment, sockets at the

working places (PC, telephones, printers, etc).

Panels mounted on the wall may be on a support (with rear mounting) and with front mounting .

Panels on the support are taken off from the support when mounting the cables, and then they are locked back. Besides, they may be mounted on 19" frames for crosses of type 66, due to the same type of supports used.

Panel with front mounting are fixed directly to the walls. They are more compact, may be mounted directly to the box. The size of 24-port panels with front mounting is 19", which allows their use in racks.

Wall-mounted patch panel with front mounting According to the type of ports there are telephone and computer patch panel.

Telephone panels have ports of type RJ-12 (6p4c, 6p6c) and are used for commutation of telephone lines. To make commutation with telephone stations simple, some telephone patch panels are provided with ports of type Telco (25 pairs).

Computer patch panels have RJ45 (8p8c) ports and are most often used in computer networks. Depending on the requirements to data transmission lines in computer networks patch panels with RJ-45 ports may be of category 5e and

category 6 . Patch panels with shielded ports are used in structured cable systems with shielded communication circuits.

Module panels are a separate type of patch panels. These are panels with cells for module of a special format. As moduleboth RJ12 and RJ45, and BNC may be used even for the optical cable, module panels permit to create almost any port

configuration needed for task solving.

Applicable to multiple scenarios

Multiple types Patch Panels

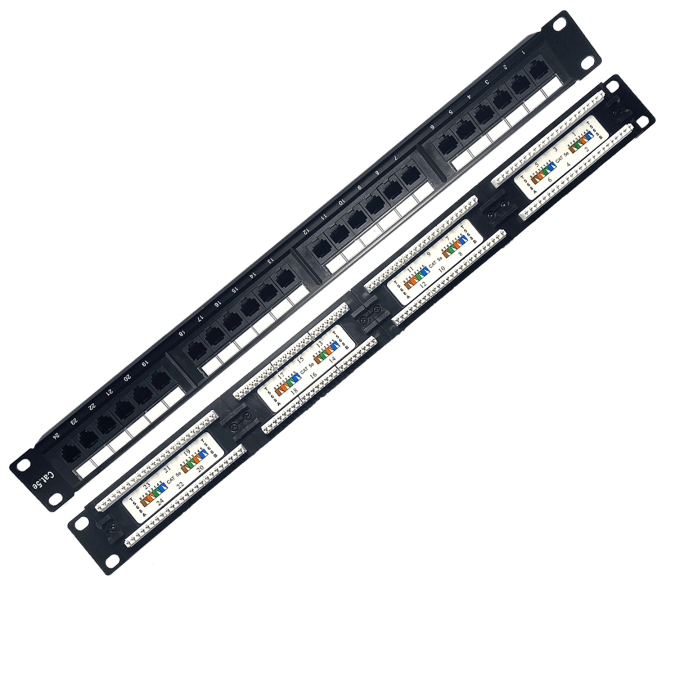

1.CableManageRack: 12 Slot/24 Port, 24 Slot/48 Port

2. Blank Patch Panel: 24 Ports FTP, 24 Ports UTP, 48 Ports UTP

3.Wallmount Patch Panel: 12 Ports Cat5E, 12 Ports Cat6

4. Unshielded Patch Panel: 12 Ports Cat5E, 24 Ports Cat5E, 48 Ports Cat5E12 Ports Cat6, 24 Ports Cat6, 48 Ports Cat6

Product Parameters

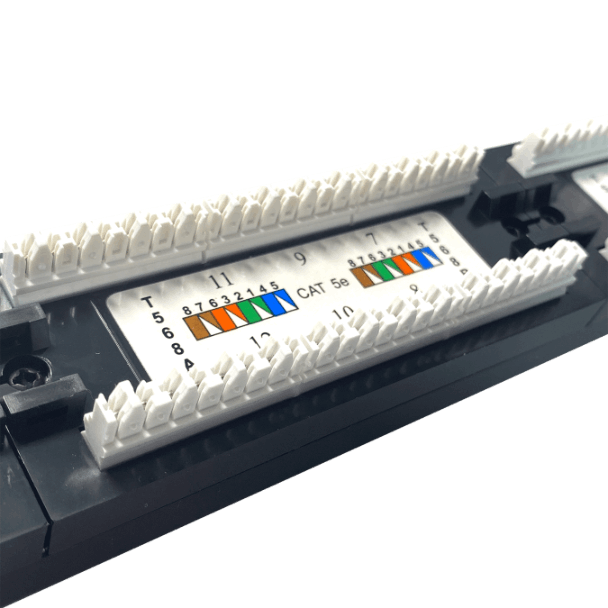

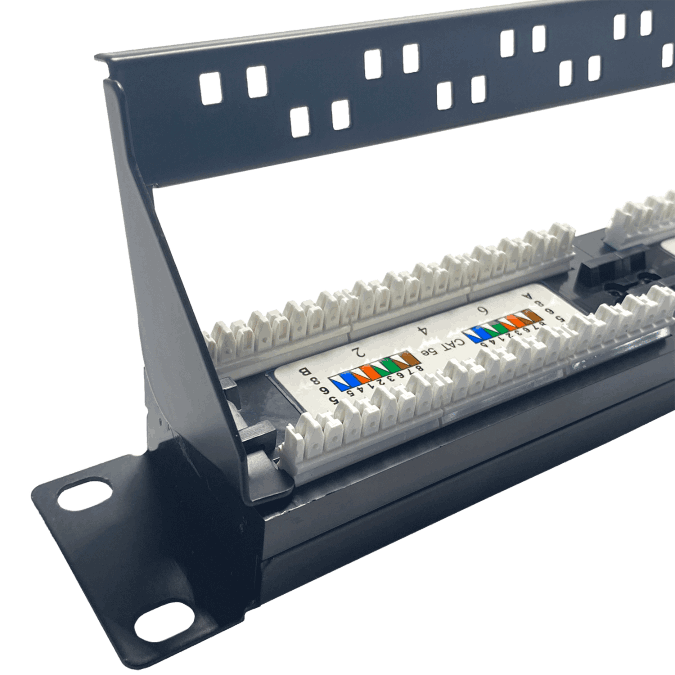

The cable is laid to each port and using a special tool is mounted (connected to) in the IDC module (IDC is Insulation Displacement Connection). There are the following types of IDC modules: of type 110 , Krone and Dual IDC (universal).

Depending on the module type different tools are used for cable mounting. Dual IDC is a universal module and admits  use both 110 type tool and Krone type tool for cable mounting.

Panels may be mounted on the wall and in 19" telecommunication cabinets, racks and frames. Some kinds of panels are Produced according to standard 10".
