Poe Injector and Splitter

PoE technology transmits power and data simultaneously over a single Ethernet cable, simplifying equipment wiring and increasing installation flexibility. The PoE Injector injects power into data cables to power PoE-compatible devices such as IP cameras and wireless access points, while the PoE Splitter separates power and data, allowing use by devices that don't support PoE. They are widely used in home networks, office environments, and industrial outdoor scenarios to reduce wiring complexity and improve equipment installation flexibility and cost-effectiveness.

PoE (Power Over Ethernet) technology allows power and data to be transmitted simultaneously through a single Ethernet cable, simplifying equipment wiring and increasing installation flexibility and efficiency. PoE Injector and PoE Splitter are key devices to achieve this function.

A PoE Injector, also known as a PoE power injector, is a device that transmits power and data simultaneously through an Ethernet cable to PoE-compatible devices such as IP cameras, wireless access points, and VoIP phones. It injects power into the data cable, eliminating the need for a separate power adapter for connected devices.

Features

-Simplified cabling: Only one Ethernet cable is needed to transmit power and data.

Wide scope of application: supports multiple PoE standards such as IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++).

Easy to install: No complicated configuration is required, just plug in the power and network and you can use it.

PoE Splitter is a device that separates power and data transmitted over Ethernet cables. It is used to connect devices that do not support PoE. By transmitting power and data to the power input and network port of the device respectively, ordinary devices can also enjoy the convenience brought by PoE.

Features

Extended compatibility: Enables devices that don't support PoE to be powered over Ethernet cables.

Multiple output voltages: Provide different output voltages (such as 5V, 9V, 12V) to meet the needs of various devices.

Easy installation: Connect to PoE Injector or PoE Switch to use, no additional power adapter required.

Application scenarios

Home Networking: Provides simplified cabling solutions for IP cameras or wireless access points in the home.

Office environment: Deploy wireless networks or VoIP phones in the office to reduce the use of power sockets.

Industrial and outdoor applications: Suitable for remote devices that require reliable Power Supply and data transmission, such as outdoor monitoring systems.

Advantage

Reduce the number of cables and reduce installation complexity.

Equipment installation locations are no longer limited by power sockets.

Eliminates the need for separate power wiring and adapters, reducing installation and maintenance costs.

Product Description

Note: This kit need the external power adapter to power on the device.
Passive PoE Injector and PoE Splitter Kit allows low cost of delivering power over the network cable for shorter distances.

This kit allows power to be carried on 10/100 networks over the spare, unused pairs of a CAT5, CAT5E, CAT6 or CAT7 Ethernet network cable. On shorter network lengths, The power source could feed the wireless access point, IP video surveillance camera,Ip phone etc.

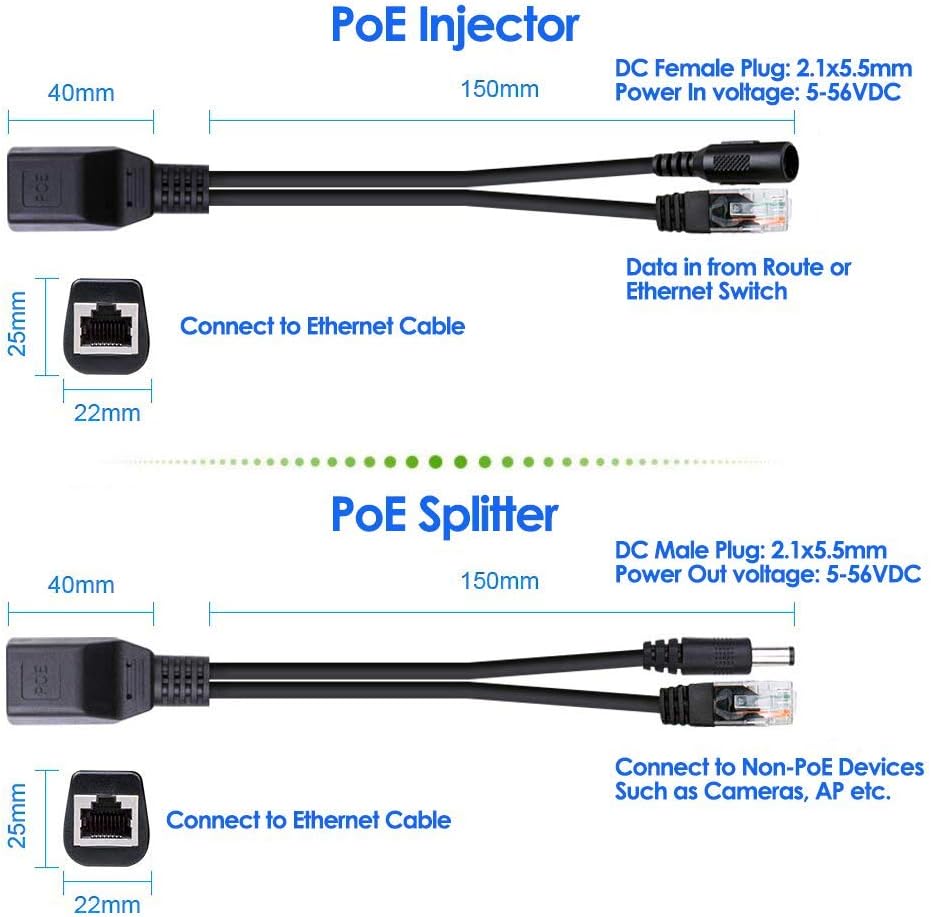

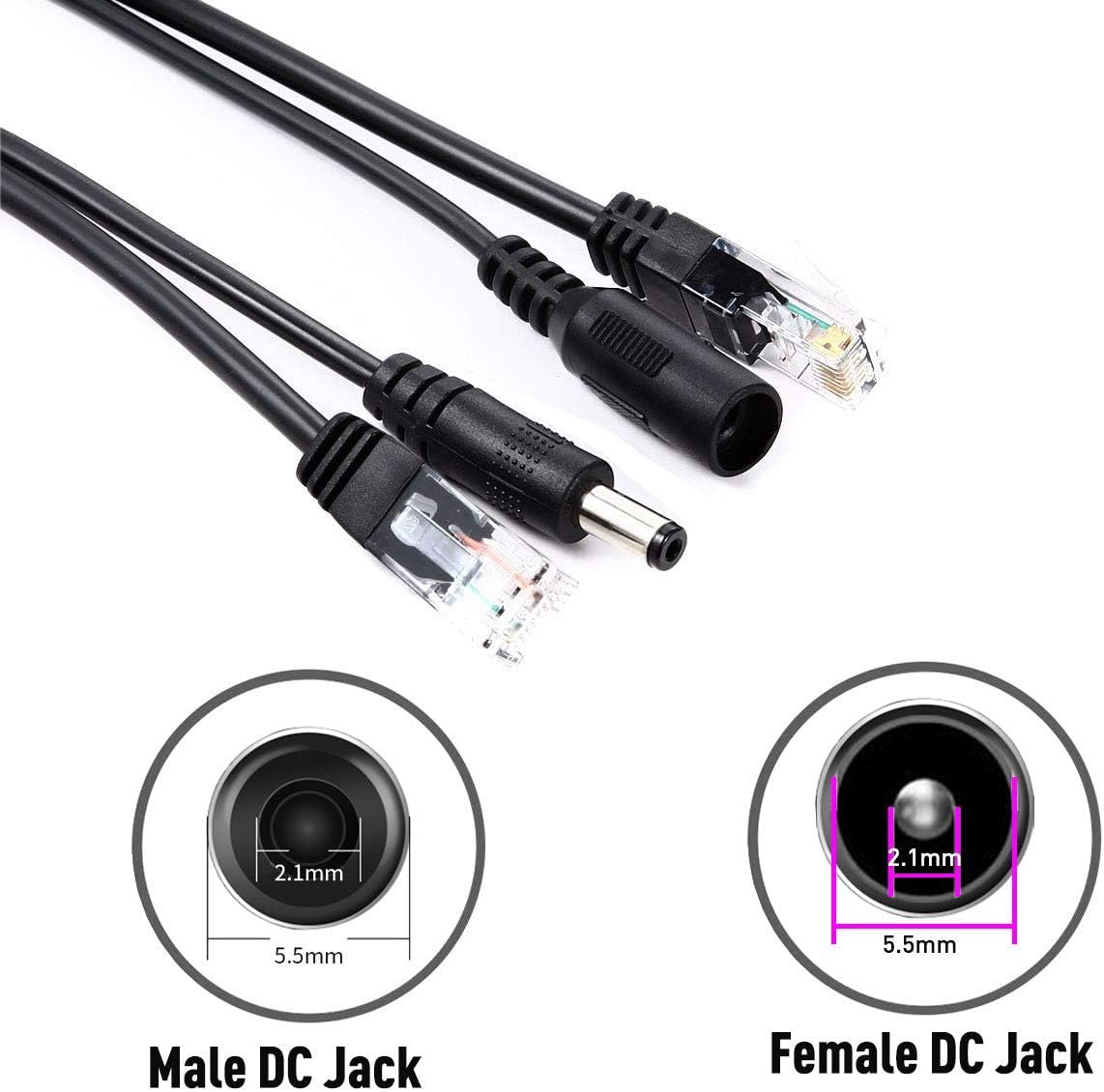

This Kit contains both very cost effective injector and splitter. The injector inserts the DC voltage at the source location into the 5.5mm x 2.1mm injector plug,
Then the DC voltage run through the spare pairs of the 10BASE-T or 100BASE-T network cable to the Splitter side,
And the splitter splits the DC voltage from the network cable into the 5.5mm x 2.1mm DC jack.
Power feed Pins: 4/5(+), 7/8(-)

What in box?

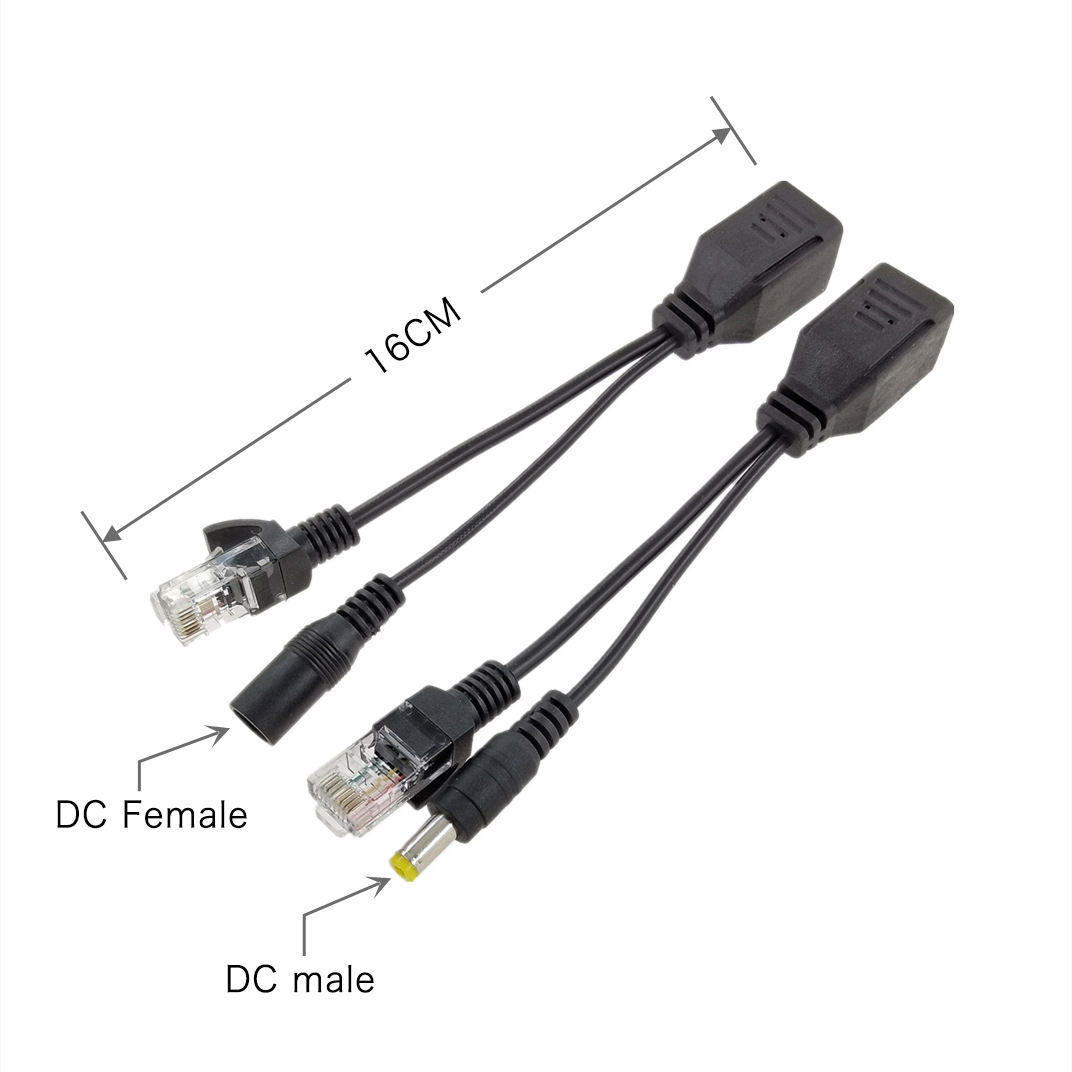

1 x PoE injector cable;
1 x PoE splitter cable;"

OEM POE Cable Passive Power Over Ethernet Adapter Cable POE Splitter RJ45 Injector Power Supply Module 12v Synthesizer Separator

POE Splitter RJ45 Cable :

1. Customize length and color cable available
2. 100% pure copper high quality conductor
3. Each cable pass inspection before delivery
4. 1 year quality guarantee
5. OEM ODM design support
6. 3 days for samples,10~15 days for mass production order

Company advantage:

1. We are Alibaba verified Gold Supplier.
2. Professor in phone accessories with best production capability, best quality control, Best Service.
3. Provide OEM/ODM service.
4. Patience & Profession & Responsible.
5. Fast reply.
6. With Warranty of our products, no need to worry about after-sale problems.
