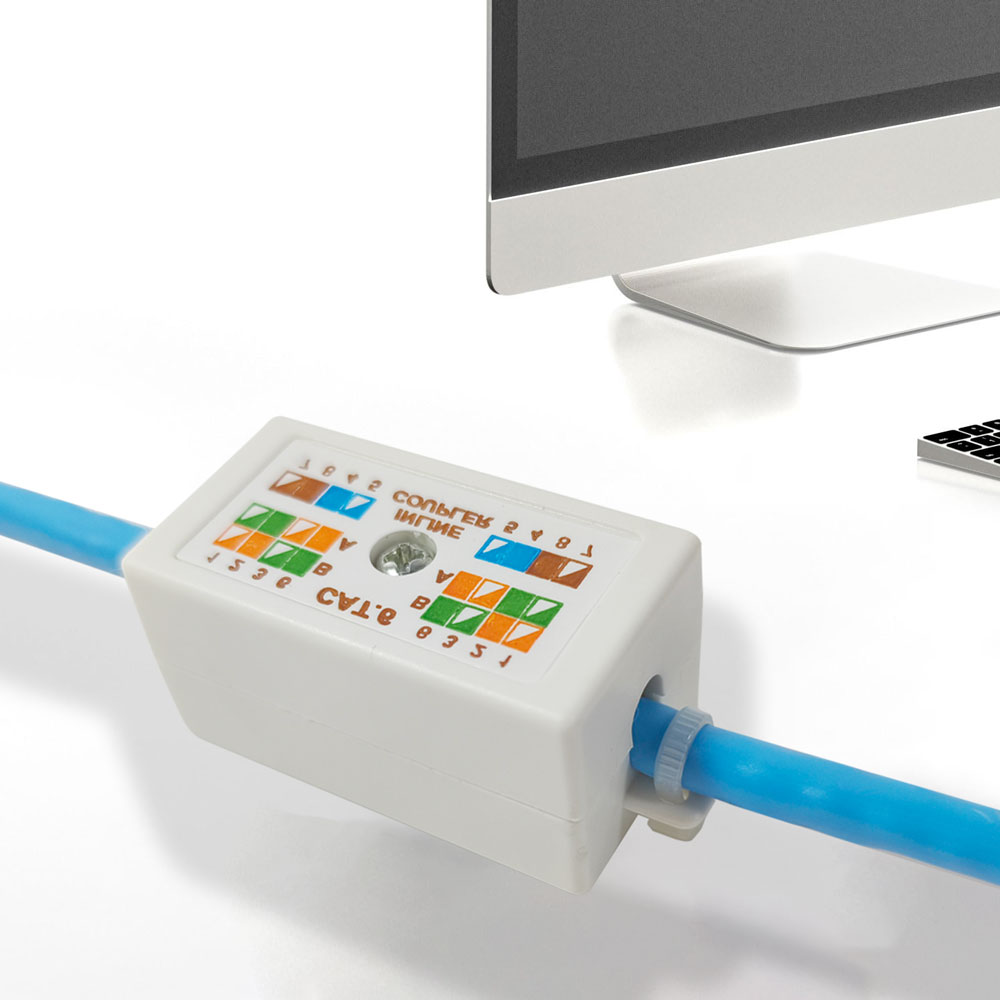

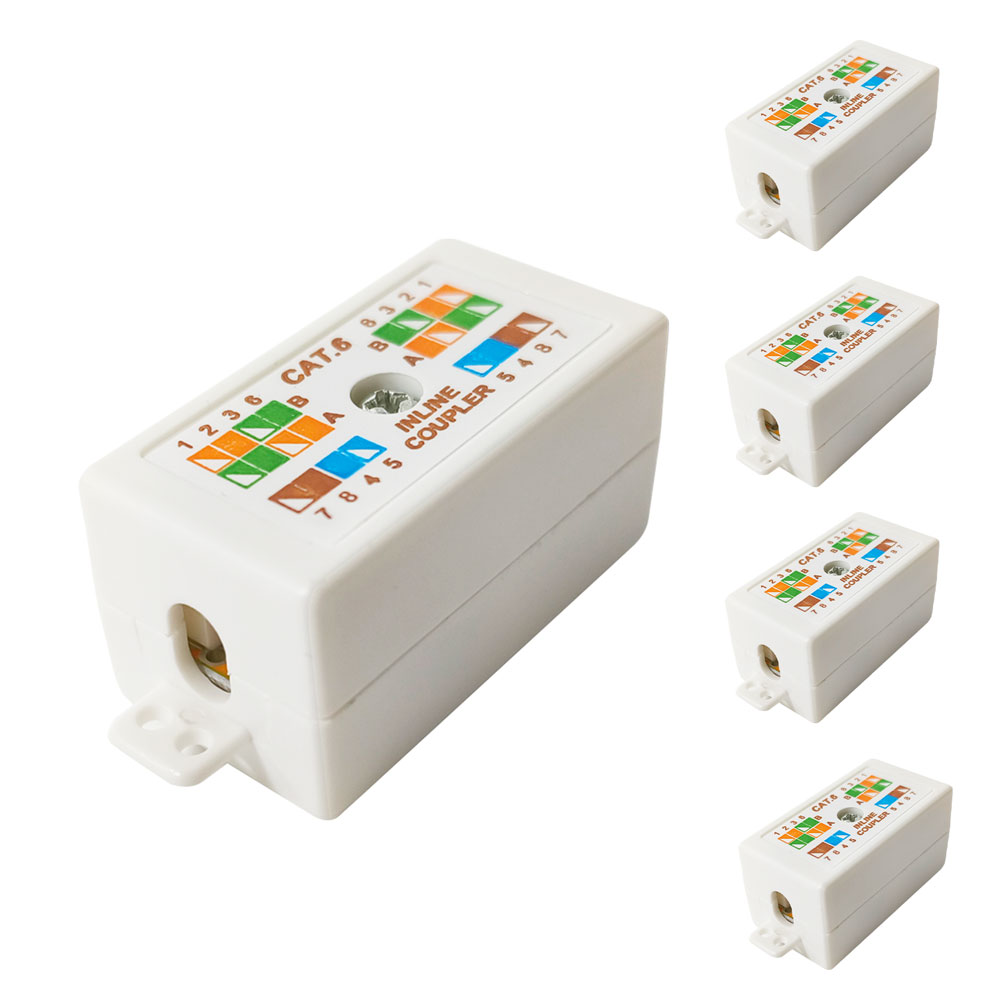

RJ45 Surface Mount Junction Box

What is an RJ45 Surface Mount Junction Box?

RJ45 Surface Mount Junction Box is an interface box for network wiring, usually used to install RJ45 network ports on walls, desktops or other flat surfaces without drilling holes in the wall. It is suitable for Ethernet network connections, such as homes, offices, data centers, etc., to facilitate wiring management and improve the stability and durability of network interfaces.

Features of RJ45 Surface Mount Junction Box

(1) Compatibility

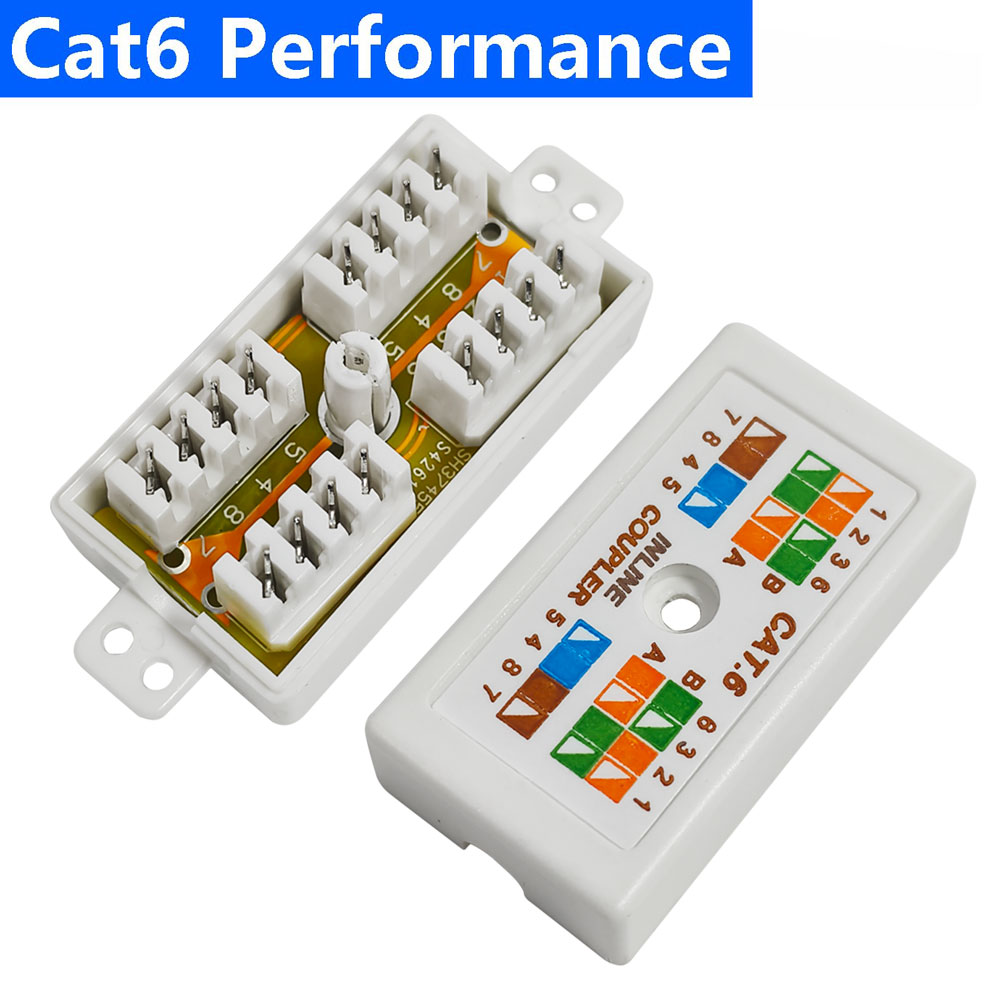

Compatible with network standards such as Cat5e, Cat6, Cat6a, Cat7, and supports Gigabit and higher network transmission.

Applicable to standard RJ45 Ethernet interface, compatible with network devices such as routers, switches, computers, servers, etc.

Provide different specifications such as single-port, dual-port, and multi-port to meet various network topology requirements.

(2) Transmission stability

Adopt high-quality copper conductors and gold-plated contacts to reduce signal loss and improve network transmission stability.

With anti-interference design, it reduces electromagnetic interference and ensures data transmission quality.

Provides a good cable fixing design to prevent looseness and poor contact, and improves durability.

Installation and aesthetics

No need to open holes in the wall, suitable for scenarios such as rental houses and office desks where wall wiring is not convenient.

Surface mounting design can be fixed on different locations such as walls, under tables, and in cabinets, and is easy to install.

Modular design supports Keystone slots, which is convenient for replacing or upgrading RJ45 ports.

Provides a variety of colors and shell materials (such as ABS plastic, metal shielding box) to adapt to different environments.

Additional functions

Supports PoE (Power over Ethernet), which can power the device through the network cable, suitable for IP cameras, wireless APs and other devices.

Some models provide shielded (STP) or unshielded (UTP) options to meet different anti-interference needs.

Equipped with a dust cover design to prevent dust and foreign objects from entering and increase service life.

Can integrate multiple ports and support voice + data integrated wiring solutions.

Advantages of RJ45 Surface Mount Junction Box

Easy to install, no wall opening required, suitable for various surface installation needs.

Stable transmission, high-quality materials and anti-interference design ensure network performance.

Strong compatibility, support for a variety of Ethernet standards and devices, to meet different network needs.

Flexible wiring, suitable for home, office, data center and other environments.

Beautiful and durable, hidden wiring and compact shell design, improve the overall wiring quality and durability.

Field of use

Home network wiring: Provide stable network connection for home broadband and smart home.

Enterprise and office: Suitable for scenes such as office desktops and conference rooms to achieve wired network access.

Data center and computer room: Used for wired network connection of servers, switches and other equipment.

Security monitoring system: Support PoE power supply, connect IP cameras, access control devices, etc.

School and hospital: Provide stable LAN wiring to ensure reliable network connection for teaching and medical systems.

RJ45 Surface Mount Junction Box is an efficient network wiring solution with wide compatibility, stable transmission, convenient installation and beautiful and durable features. It is suitable for scenes such as home, office, data center, etc., to improve the management and use experience of wired network.

FAQ

What applications are suitable for this RJ45 surface mount terminal block?

This terminal block is suitable for offices, home networks, data centers, and industrial environments, especially for situations where recessed wall sockets are not available, such as concrete walls or rental office spaces.

What type of network cables does this terminal block support?

Standard Ethernet cables such as CAT5e, CAT6, and CAT6a are supported for network connections of 10/100/1000 Mbps and higher.

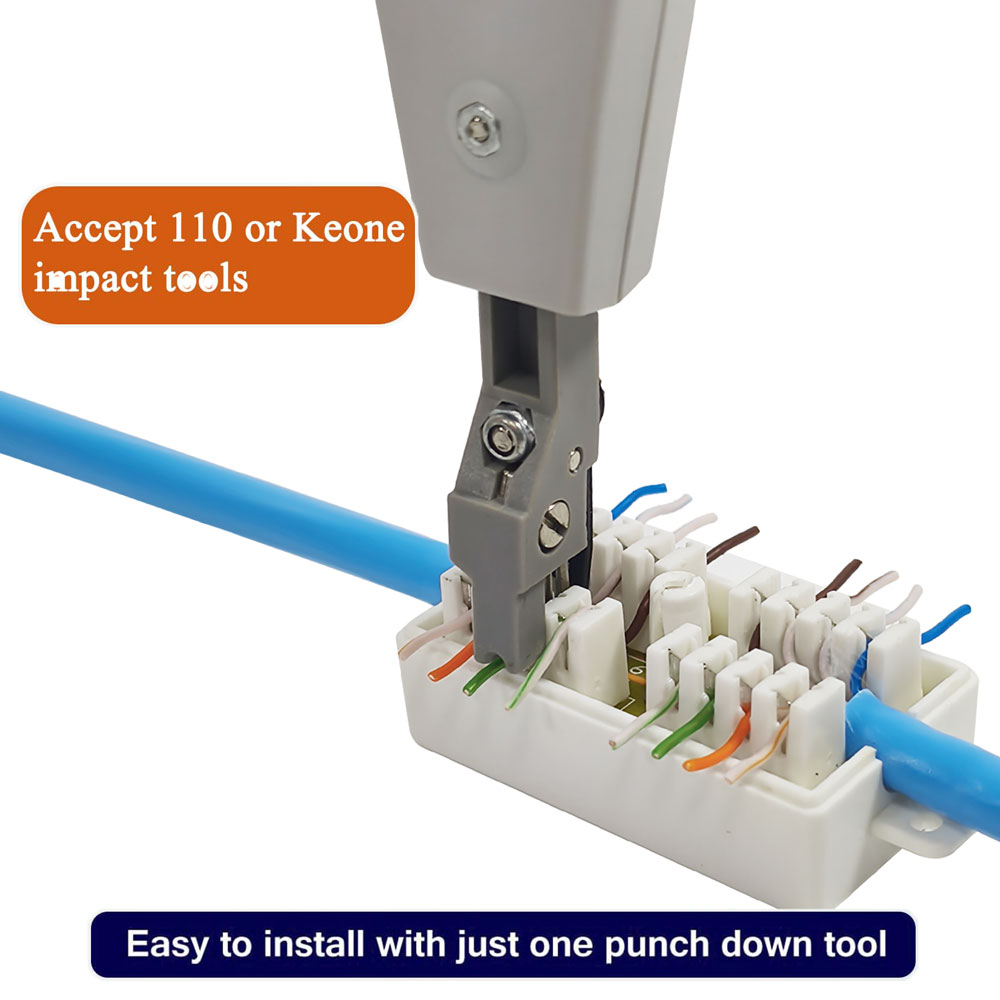

Does this terminal block require special tools to install?

Generally, terminations can be completed using standard crimping tools such as 110 crimping tools or Krone tools. If it is a tool-free style, no additional tools are required to connect the cables.

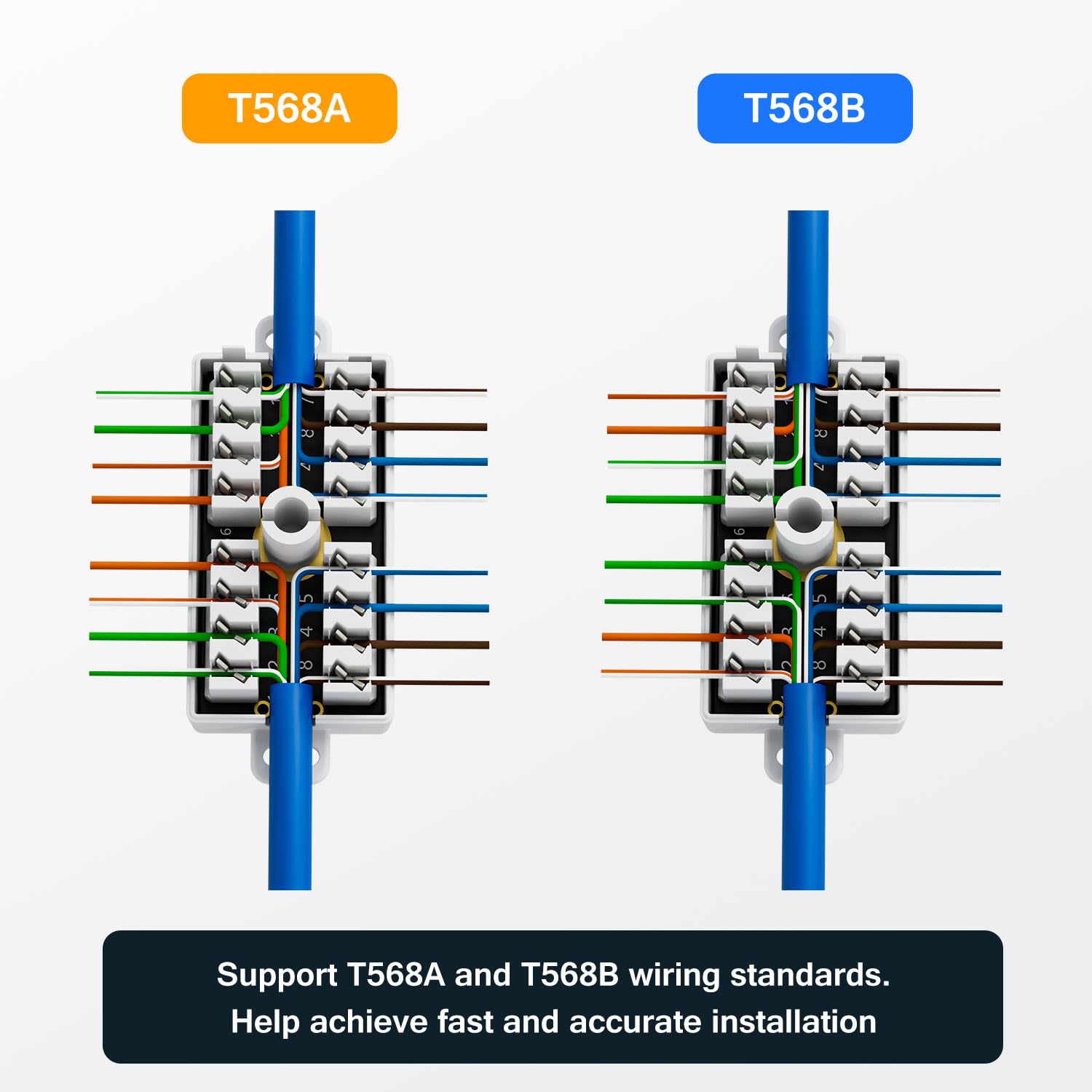

How to wire this terminal block?

Crimping the network cable according to the T568A or T568B standard, and use the crimping tool to press it after inserting the IDC terminal to ensure a stable connection. The box body usually has routing holes for easy wiring.

Does this terminal block support PoE (Power over Ethernet)?

As long as the network cable and device support PoE, this junction box will not usually affect PoE power supply, but it is recommended to choose a high-quality, well-shielded model to reduce signal loss.

Does this junction box provide shielding to reduce interference?

Some models provide shielding (STP) function, which can effectively reduce electromagnetic interference (EMI). It is recommended to choose a shielded model in industrial or high-interference environments.

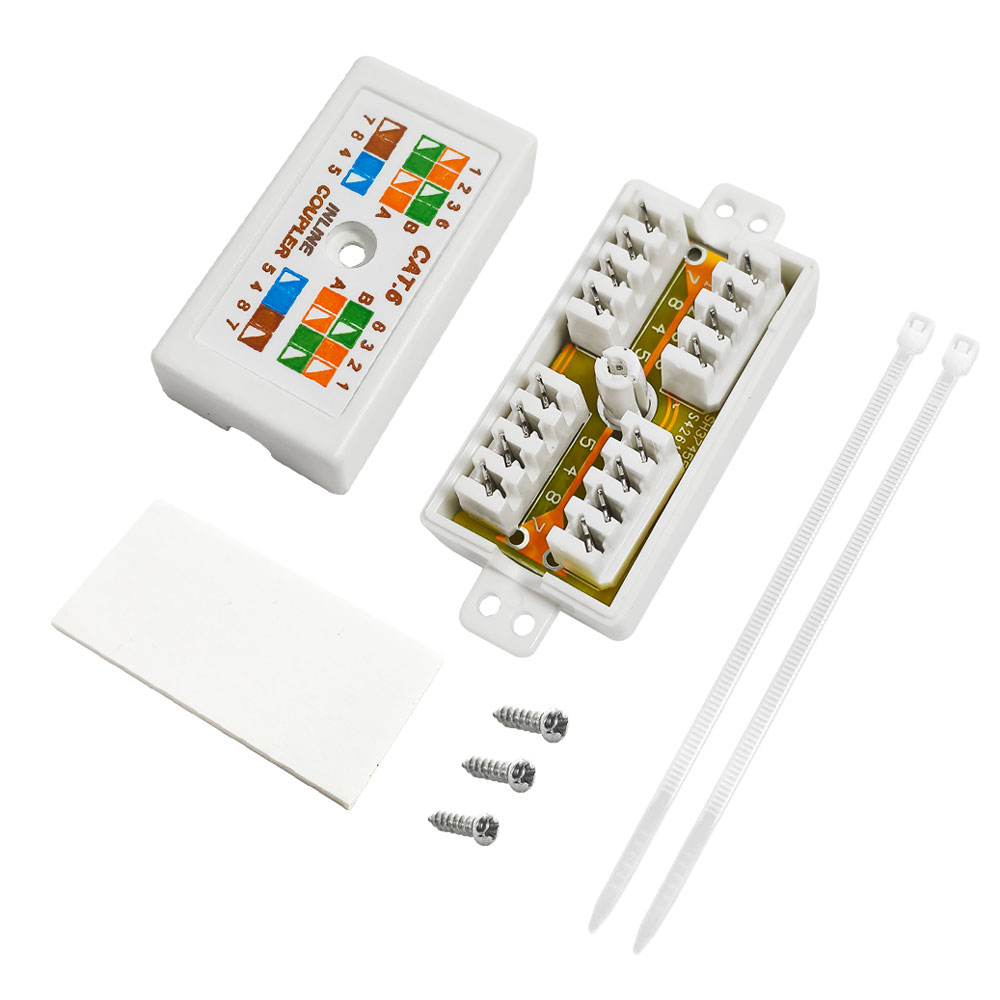

How to install this junction box?

It can be fixed with double-sided tape, screws or glued, depending on the wall material and installation requirements.

Can this junction box be reused?

Generally speaking, the connection is stable after wiring, but multiple disassembly and assembly may affect the port contact performance. It is recommended to check and replace the terminal module when rewiring.

Is this junction box suitable for outdoor environments?

This product is usually used indoors. If it needs to be installed outdoors, it is recommended to choose a waterproof and dustproof industrial-grade model with sealing protection measures.

What are the dimensions of this junction box?

The specific dimensions vary by model, but are usually small and compact (e.g. approximately 60mm x 45mm x 25mm). Please refer to the product specifications for details.

If you have any other questions, please feel free to ask!
