| Plug Type | Field mountable RJ45 Cat. 7 UK |
| housing | Fully shielded die-cast zinc, reusable |
| Connector A | RJ45 plug |
| Connector B | 8-pin cutting clamp |
| Connection assignment | T568A & T568B |
| For cable type/diameter | AWG23-24 CAT5e, CAT6, CAT6A, CAT7 / 6 - 7.5 mm |
| Wire diameter (insulated) | 1.35 to 1.5 mm |
| Contacts | Gold-plated 50U |
| Kink protection | Robust screwable strain relief |
| Transfer Rate | Up to 10,000 Mbps |

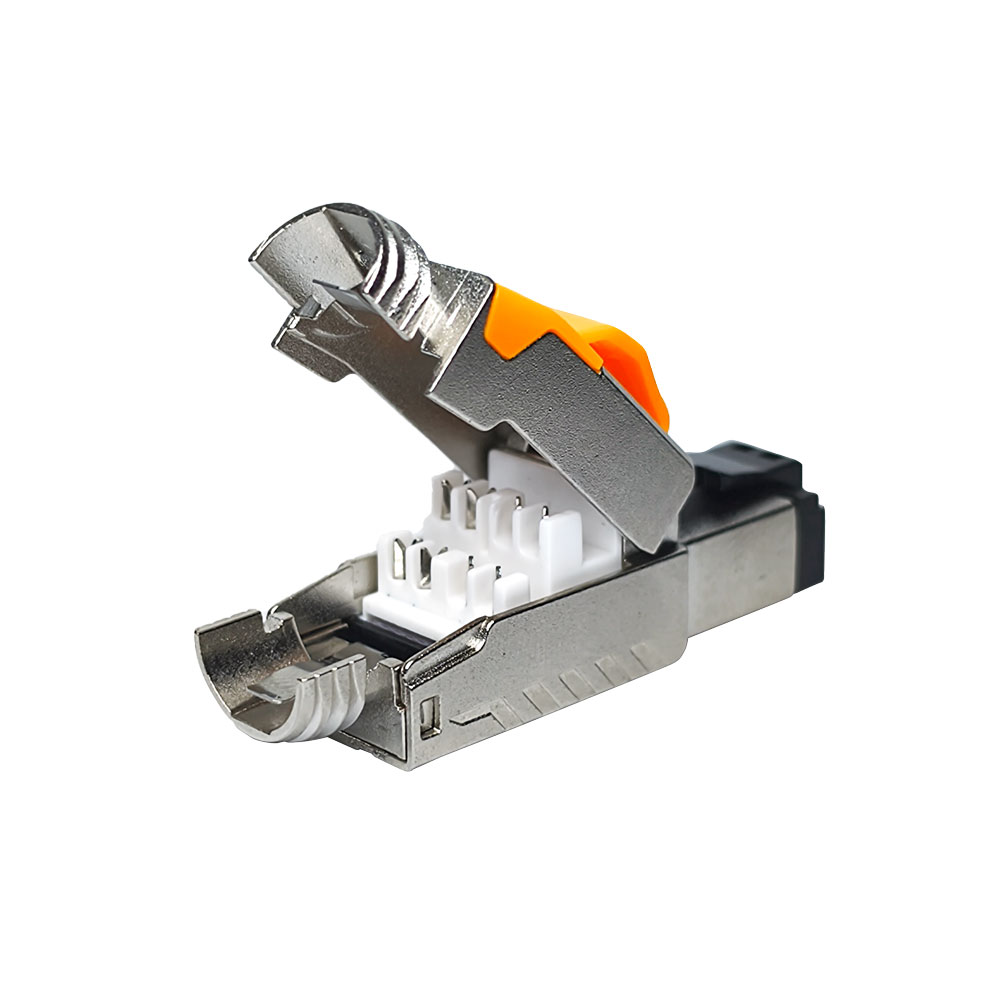

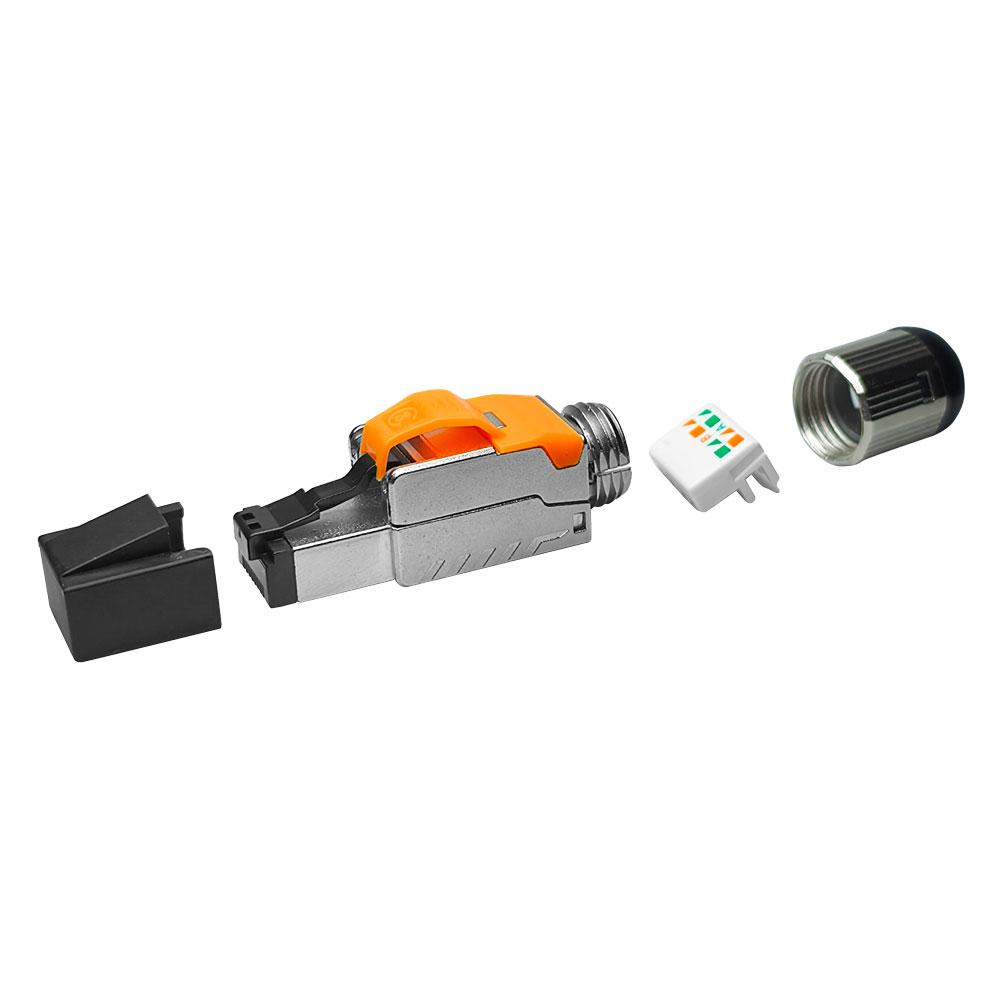

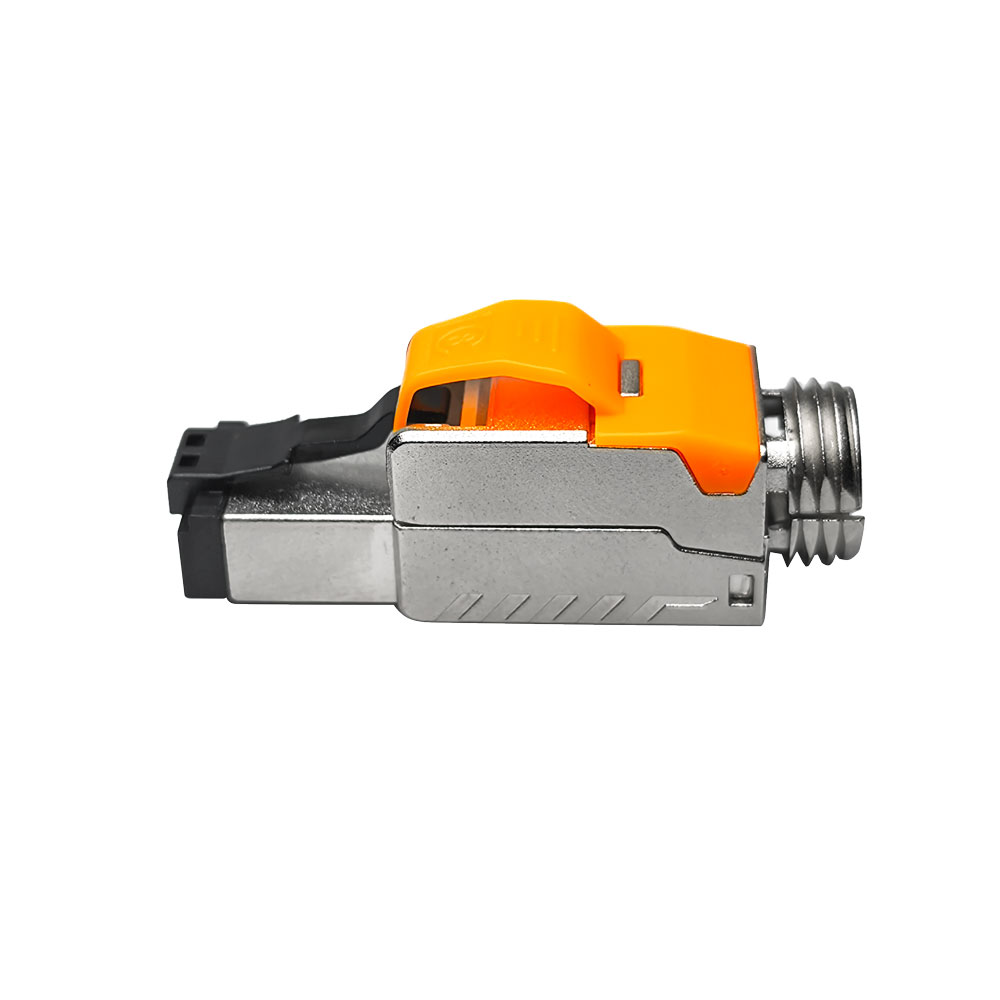

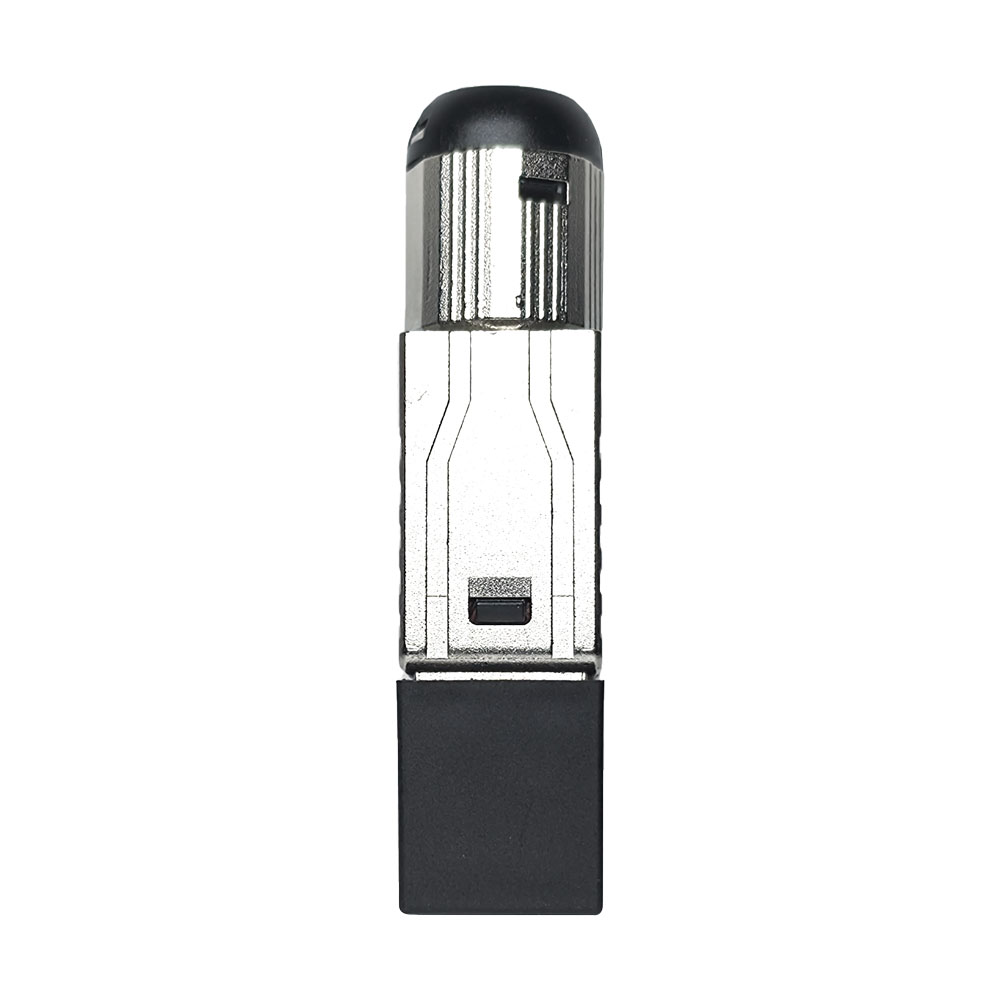

The new Cat.7 connector from hb-digital offers a much higher data throughput. It supports data transfer up to 10,000 Mbps via shielded twisted pair copper cables. This new Cat.7 RJ45 connector is backwards compatible with all previous twisted pair copper wiring (Cat.6A, Cat.6, Cat.5e).
Connect with Confidence
Fangbei CAT8 FTP Modular Connectors provide a highly compatible easy to use network solution for larger diameter Cat6a or Cat7 (23 to 26 AWG/6.0~7.5mm)
cables that feature a quality build & superb shielding while meeting ultra-high-speed Cat6A performance expectations and all quality standards.
Perfect PoE+
* Fully backwards compatible with most Cat6, Cat5 and Cat5e Ethernet networks with RJ45 ports.
* 10GBASE-T for up to 100 meters
* Gold-Plated contact points offer reliable, fast connections and resistance to corrosion. Fully shielded solid iron housing protects the connectors and integrated silencing cylinder to prevent interference. The provided IP20 Anti-Dust plug protects your connectors from dust.
Fangbei, a premier manufacturer specializing in network connectors, terminals, electronic components, and cutting-edge network tools.
