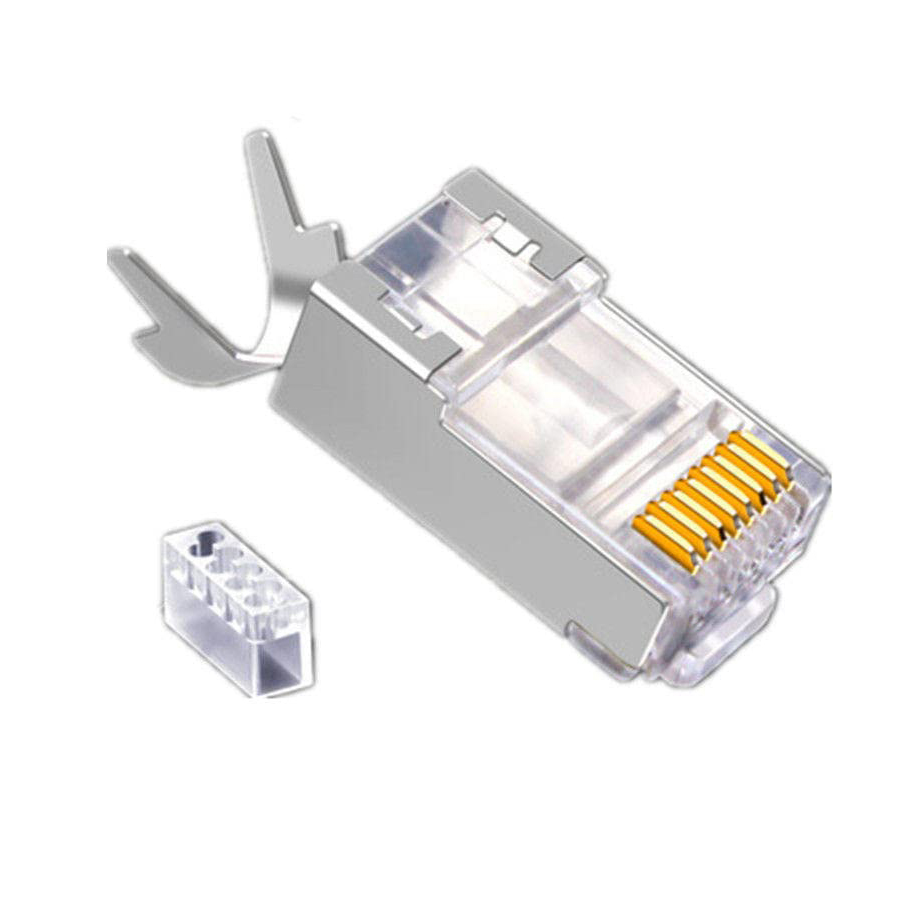

Cat7 Plug Rj45 Connector

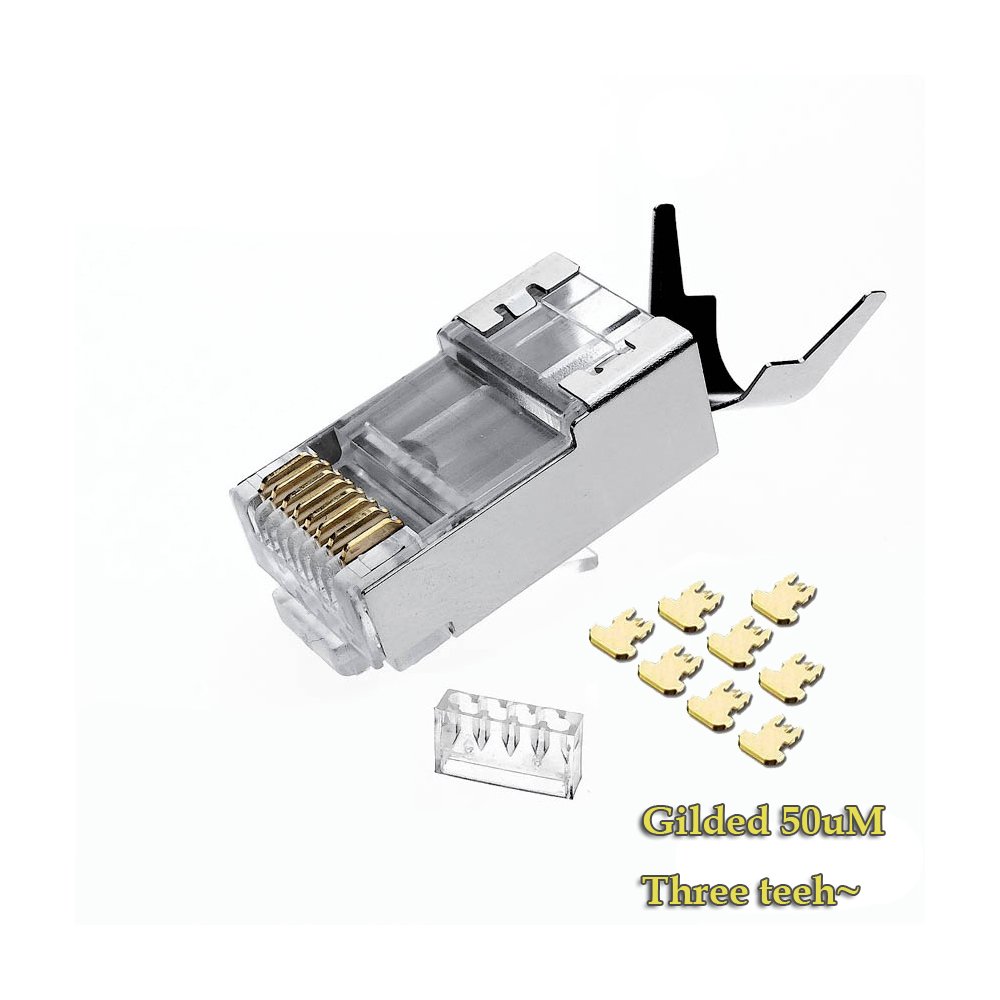

FANGBEI Gold Plated 3 teeth 8 pins FANGBEI RJ45 Connectors are suitable for use in category 7 data networks. They work with virtually every model of RJ45 crimper tool and 24AWG cable. Because they reduce the distance between wire twists and contacts, electrical performance is enhanced. Note that the maximum cable length of Cat-7 ethernet cable should be 328 feet or 100 meters.

1. Type: Cat7 RJ45 8 position and 8 contacts head, 8P8C RJ45 head Connector Plug.

2. Color: Silver with transparent.
3. The cable hole: 1.45mm.

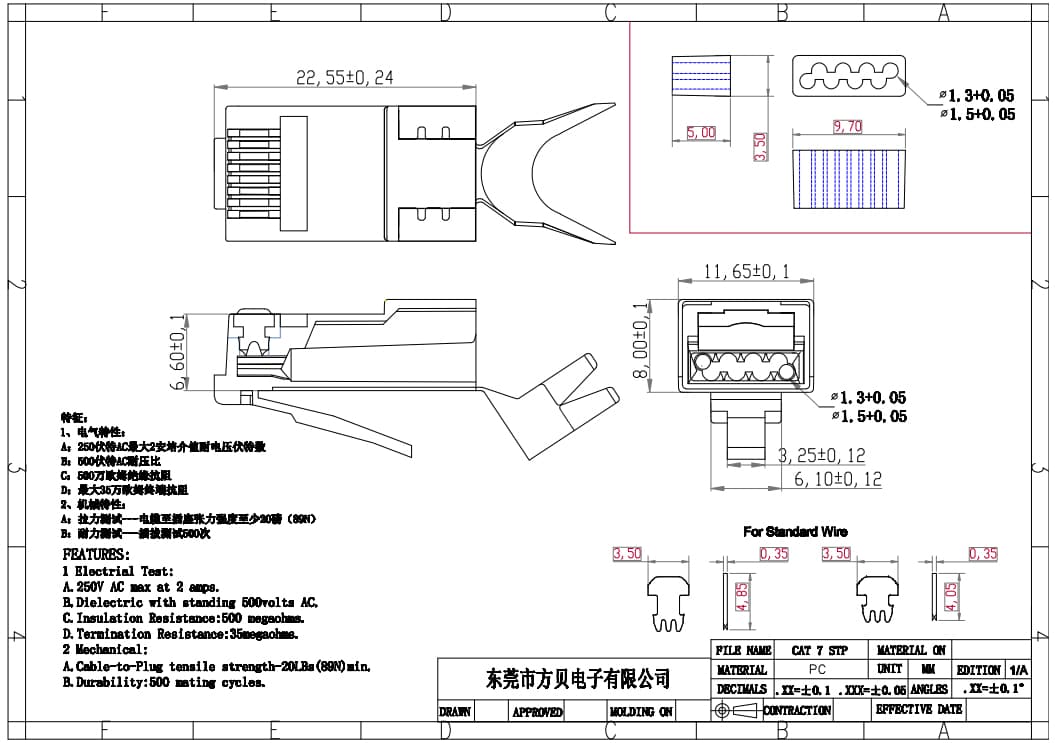

4. Main item size: 3.6 * 1.5 * 1.2cm / 1.42 * 0.59 * 0.47in.
5. Pass the strict test standard: Permanent link and channel mode test.
6. Compatible to Cat5E, Cat6, Cat6A, Cat7 RJ45 sockets.
7. In line with international standards, 100% Fluke test approved.
8. TIA/EIA and ISO certification approved.
9. Compatible to both T568A and T568B wiring schemes.

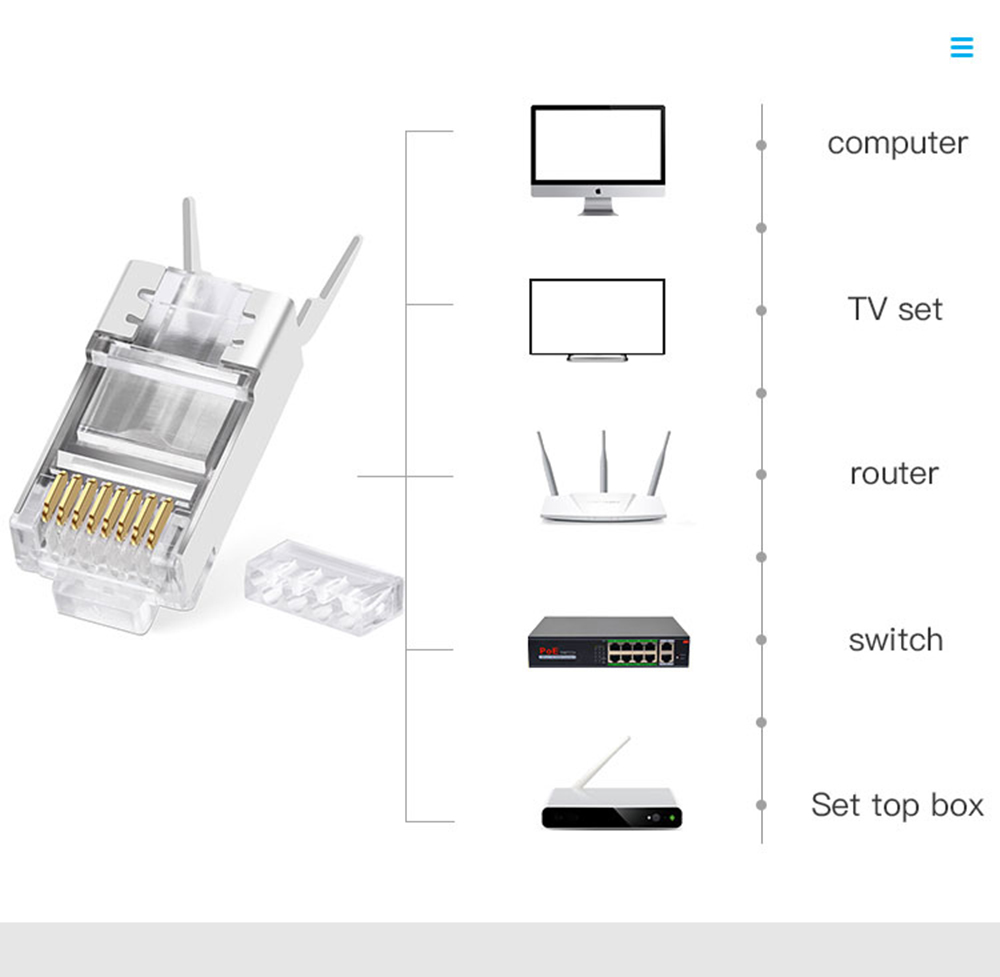

10. Apply to Switch, Wireless Device, Modem, Hub, ADSL, PC, TV, Digital Device.

Here’s an overview of the key aspects of a Cat7 RJ45 plug connector:

1. Cat7 Cable Compatibility

• Shielded Design: Cat7 cables are fully shielded, meaning they have an individual shield for each pair of wires (S/FTP or F/FTP) and an overall shield for the cable. The Cat7 plug must accommodate this shielding to prevent interference and maintain signal quality.

• Bandwidth: Cat7 cables are rated for up to 600 MHz, and they are capable of supporting speeds of up to 10 Gbps (10 Gigabit Ethernet).

2. RJ45 Connector

• Despite being a Cat7 cable, the connector often used is an RJ45 plug, which is standard for most Ethernet networks. This ensures compatibility with network devices like switches, routers, and network interface cards (NICs).

• Gold-plated Contacts: High-quality Cat7 RJ45 connectors feature gold-plated contacts to improve signal transmission and reduce corrosion over time.

3. Shielding

• To ensure high-speed data transmission and minimize crosstalk (electromagnetic interference between wires), Cat7 RJ45 plugs are typically shielded. This shielding prevents signal degradation and enhances the performance of the network connection, especially in environments with high electromagnetic interference.

4. Backward Compatibility

• Cat7 RJ45 connectors are backward compatible with lower-category Ethernet cables like Cat6, Cat5e, and Cat5. This means you can use Cat7 plugs in networks that may not require the full performance of a Cat7 connection but want future-proofing.

5. Application

• Data Centers: Cat7 cables with RJ45 connectors are used in environments where high-speed data transfer is critical.

• Home and Office Networks: For users who want the fastest possible Ethernet connections for activities like gaming, media streaming, or large file transfers.

• High-Performance Industrial Networks: Used in setups that demand secure, fast, and interference-free data transmission.

Purchasing ethernet cables can be expensive and pre-made lengths are not always suitable for your needs. FANGBEI connector Gold Plated FANGBEI RJ45 Pass Through Plugs let you quickly and easily create category 7 cables in your preferred lengths. Our clear 1-piece pass-through connector design makes wire sequence verification a breeze, speeding up terminations and reducing scraps and waste. Time is money, and FANGBEI Cat6 Connectors save you both.
