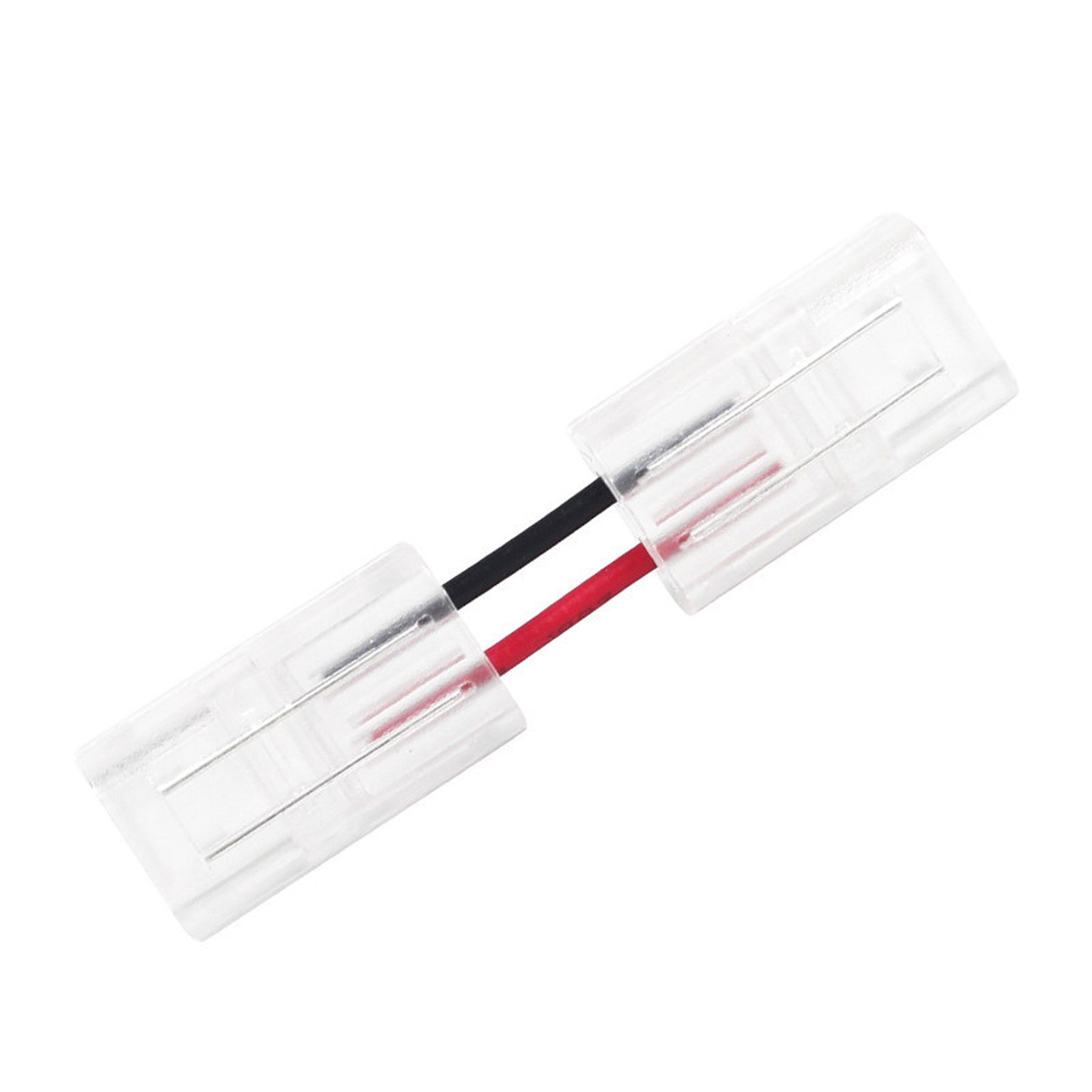

LED Strip Light Joiners

LED Strip Light Joiners are used to connect multiple LED strips, extending their length, navigating angles and corners, enabling segmented control, facilitating repairs, creating customized layouts, and ensuring even power distribution for consistent brightness and performance.

This type of connector usually has a simple plug-in design, allowing users to easily connect different segments of LED light strips together to achieve the overall lighting effect of the light strip. They help simplify the installation process while ensuring the reliability and stability of the electrical connection, and are suitable for LED light strip applications in home lighting, commercial displays, and decorative projects.

For LED light strip connectors, we can provide you with a variety of modular plugs and connectors in different specifications:

8P8C: Commonly used for RJ45 Ethernet connections.

8P4C: Used for RJ45 or RJ48 connections.

6P4C: Commonly used for RJ11 or RJ12 connections.

6P2C: Also used for RJ11 connections.

4P4C: Used in various telecommunication applications.

4P2C: Commonly used for telephone line connections.

In addition, these connectors are available in various types, such as UTP (unshielded twisted pair), FTP (foiled twisted pair), STP (shielded twisted pair), SFTP (shielded and foiled twisted pair), and SSTP (shielded shielded twisted pair). Colored modular plugs and UK plugs are also available to meet different needs and preferences for LED light strip installation and connection solutions.

Gold plating thickness: gold flash, FU,01,03, 06, 15, 30, 50U”.
 UL/RoHS compliant.
Imported materials:
Imported polycarbonate material with good transparency and flexibility.
Designed according to FCC standard, and fully compatible with different jacks.
Standard packing: 1000pcs or 100pcs/bag with a sticker to mark specification.
For round cable, featuring gold plated contacts for the best possible connection. Manufactured from a leader in the network cables
industry, Make your network function to it's maximum potential

Product Parameters

Feature

International Standards Compliance: Designed and manufactured according to international standards EIA/TIA-568B and YD/T926.1-2009, ensuring high reliability with features like anti-loosening, self-locking, and flexible insertion and removal.

High-Quality Materials: The shell of the connector is made from high-quality PC material, while the gold sheet is made from phosphate-bronze. The surface of the connector is fully nickel-plated, and the contact thickness is 50 microinches (50U"). It offers an insertion and removal life of over 1000 cycles.

Versatile Application: Suitable for on-site termination with connecting cables to facilitate connections between devices, patch panels, and modules.

Comparison between LED Strip Connector and RJ45 Connector

Purpose

LED Strip Connector:

Purpose: Mainly used to connect and extend LED light strips, ensuring the reliability and stability of electrical connections. Suitable for home lighting, commercial displays, and decorative projects.

Function: Provides a simple plug-in design for quick installation and removal, achieving the overall lighting effect of the light strip.

RJ45 Connector:

Purpose: Mainly used for Ethernet and network communication connections. Widely used in environments such as local area networks (LANs), data centers, and server rooms that require high bandwidth and stable data transmission.

Function: Ensure stable transmission of electrical signals, reduce electromagnetic interference (EMI) and signal crosstalk.

Structure and Materials

LED Strip Connector:

Structure: Usually composed of a plastic shell and metal contact points, with a simple design and easy operation.

Material: High-quality plastic and metal materials to ensure good electrical performance and durability.

RJ45 Connector:

Structure: Includes 8 metal contacts (8P8C) encapsulated in a plastic shell. The contacts are finely designed to ensure precise connection of the wires.

Material: Plastic shell and phosphor bronze metal contacts, nickel-plated and gold-plated on the surface to ensure long-term reliability.

Performance and Standards

LED Strip Connector:

Performance: Easy to install, provides reliable electrical connection, suitable for the connection and extension of various LED light strips.

Standards: Designed according to specific application requirements, but not involving strict communication standards.

RJ45 Connector:

Performance: Supports high-bandwidth data transmission, prevents signal loss and interference, and has a plug-in life of more than 1,000 times.

Standards: Comply with international communication standards such as EIA/TIA-568B and YD/T926.1-2009.

Installation and Use

LED Strip Connector:

Installation: Simple and fast, no professional tools are required, and users can easily complete the connection.

Use: Mainly used for splicing and extension of LED light strips, suitable for DIY and professional installation.

RJ45 Connector:

Installation: Requires professional tools (such as crimping pliers) and requires certain technical experience.

Use: Used for terminal connection of network cables, suitable for installation and maintenance by professional technicians.

LED Strip Connector and RJ45 Connector have significant differences in use, structure, performance and installation methods. The former is mainly used for connecting and extending lighting equipment and is easy to operate; the latter is used for network communication and emphasizes the stability and standardization requirements of data transmission. These characteristics make them play an important role in their respective application fields.

FAQ

What is the primary use of LED Strip Light Joiners?

LED Strip Light Joiners are primarily used to connect multiple LED strips, extending their length and ensuring a continuous lighting effect.

What wire diameter is compatible with the 2/3/4 Pin Light COB LED Strip Connector?

The 2/3/4 Pin Light COB LED Strip Connector is compatible with wire diameters of 22-24AWG.

What materials are used for the housing of these joiners?

The housing is made of zinc alloy and high-quality PC (polycarbonate).

What material is used for the wire column in these connectors?

The wire column is made of gold-plated phosphorus bronze.

How many times can these connectors be inserted and removed?

These connectors can be inserted and removed at least 750 times.

What is the terminal lifespan of these joiners?

The terminal lifespan of these joiners is at least 250 times.

What is the primary application of these joiners?

These joiners are designed for 10 Gigabit network connections.

What special features do these joiners offer?

These joiners are pressure-free, tool-free, and reusable, making them easy to use and highly versatile.

Are these joiners tested for reliability and performance?

Yes, these joiners are tested using the FLUKE test to ensure reliability and performance.

Can these joiners be used to connect LED strips at corners and angles?

Yes, LED Strip Light Joiners can be used to connect strips at corners and angles, ensuring a smooth and continuous lighting line.
