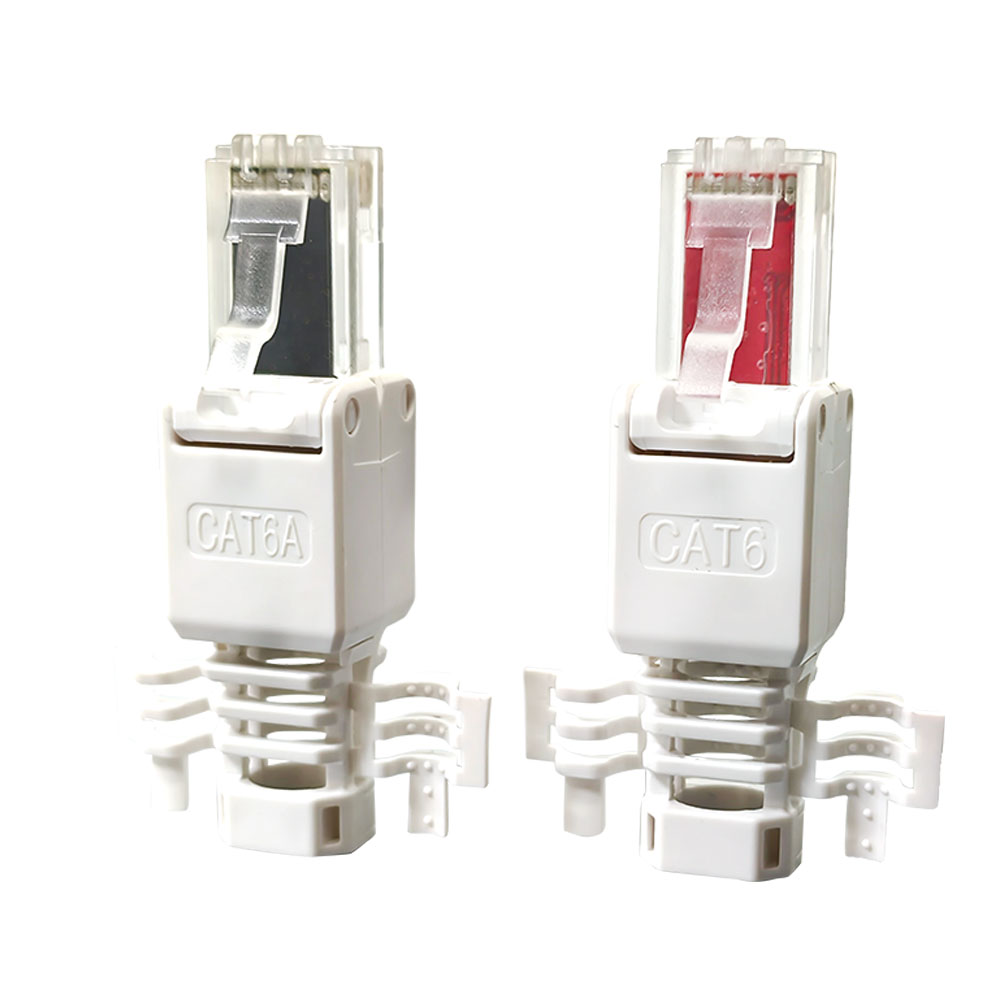

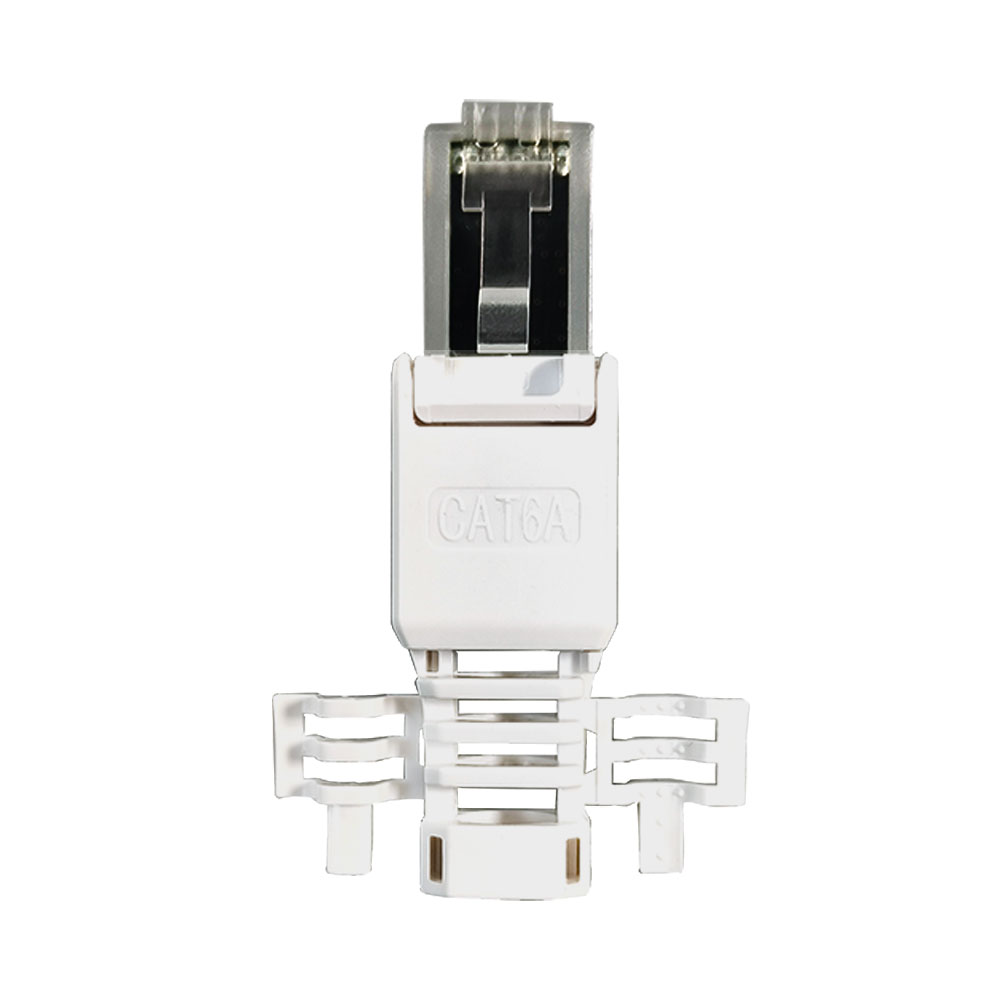

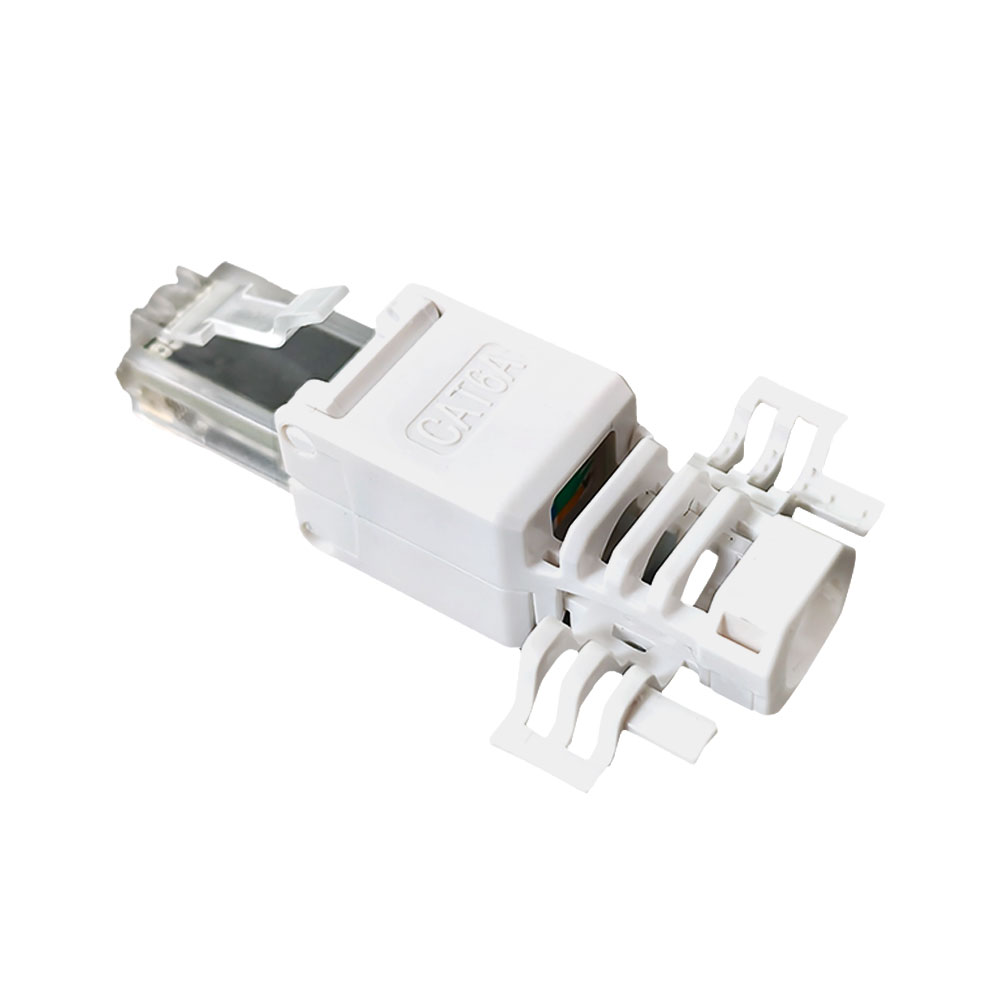

Rj45 Cat6 Toolless Plug

modular plugs

1) All modular plugs RJ11 RJ12 RJ45 connectors are available:
8P8C, 8P4C, 6P4C, 6P2C, 4P4C, 4P2C; RJ11/RJ12/RJ45/RJ48 connector, UTP/FTP/STP/SFTP/SSTP, 1color modular plugs, or UK plugs are all available.
2) Gold plating thickness: gold flash, FU,01,03, 06, 15, 30, 50U”.
3) UL/RoHS compliant.
4) Imported materials: Imported polycarbonate material with good transparency and flexibility.
5) Designed according to FCC standard, and fully compatible with different jacks.
6) Standard packing: 1000pcs or 100pcs/bag with a sticker to mark specification.
For round cable, featuring gold plated contacts for the best possible connection. Manufactured from a leader in the network cables industry, Make your network function to it's maximum potential

Key Features

1. Tool-Free Design

• Uses a built-in locking mechanism (e.g., clips or sliding covers) to secure wire conductors, eliminating the need for specialized crimping tools.

• Simplifies installation for on-site technicians or non-professional users.

2. Compatibility

• Supports 22–26 AWG solid or stranded cables.

• Works with standard Cat6 Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) cables. Some models explicitly support STP (e.g., SOMI NETWORKS Cat6 STP Toolless Plug).

3. Performance Standards

• Meets TIA/EIA-568-B.2-1, ISO/IEC 11801, and EN50173-1 standards.

• Ensures transmission performance up to Cat6 requirements (e.g., 250 MHz bandwidth, 1 Gbps data rate).

4. Durability

• Gold-plated phosphor bronze contacts (e.g., 50µ inch gold plating) resist corrosion and ensure reliable connections over 200+ insertions.

• High-impact polycarbonate (PC) housing provides durability against wear and tear.

5. Integrated Design

• Some models (e.g., Premium Line Systems) feature a built-in T568A/B wiring diagram on the cover for error-free termination.

Typical Applications

• Temporary Network Setup: Quick LAN deployment for events, exhibitions, or conferences.

• Home/Office Wiring: DIY patch cord creation for connecting routers, switches, or end devices.

• Industrial Environments: Shielded variants (Cat6 STP Toolless Plugs) are suitable for areas with high electromagnetic interference (EMI).

Installation Steps (Common Models)

1. Strip the Cable:

• Remove ~1 inch (2.54 cm) of the outer jacket without damaging the insulation of the 8 conductors.

2. Arrange Wires:

• Follow T568A or T568B wiring standards (e.g., T568B: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown).

3. Trim Conductors:

• Cut all wires to the same length (~0.5 inch) for uniform insertion into the plug.

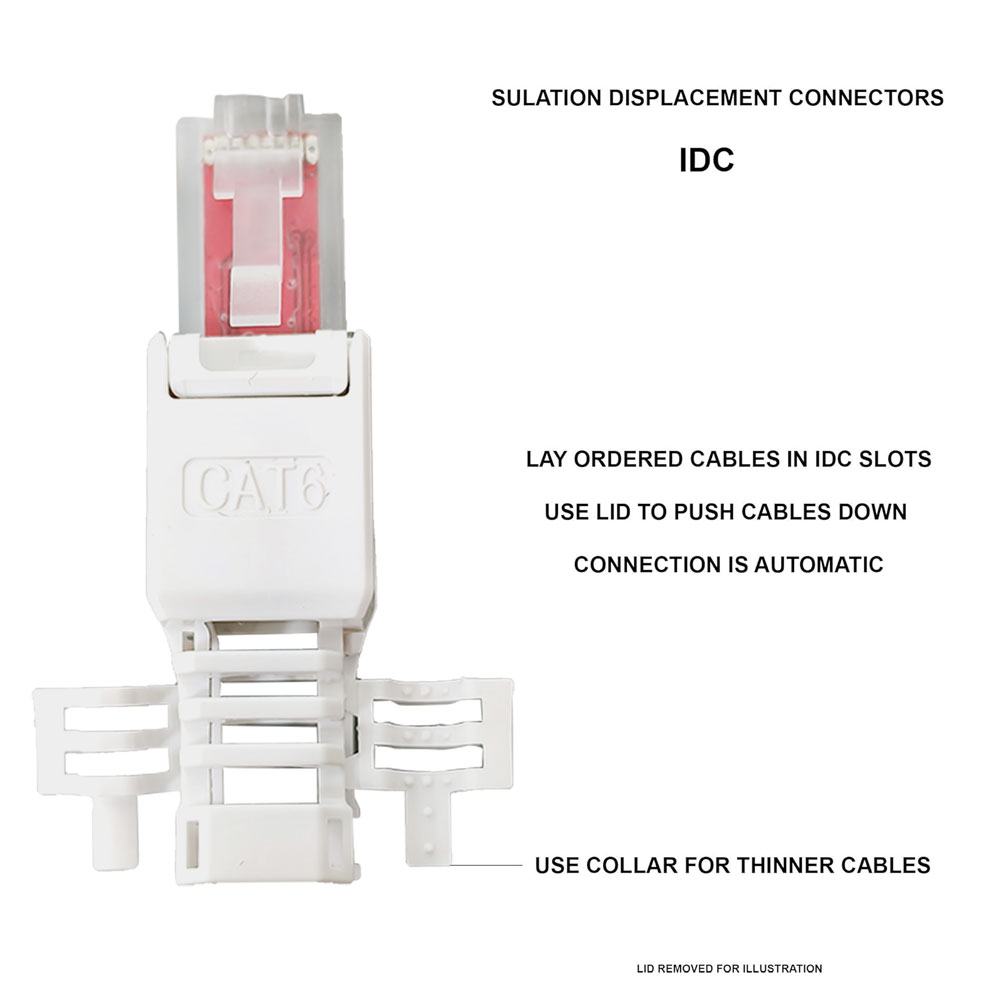

4. Insert Wires:

• Push the conductors firmly into the plug until they make full contact with the pins.

5. Secure the Plug:

• Close the cover or slide the locking mechanism to secure the wires in place.

Important Notes

• Wiring Consistency: Both ends of the cable must use the same standard (T568A or T568B) to ensure proper connectivity.

• Avoid Wire Damage: Ensure no nicks or cuts on conductor insulation during stripping, as this can cause signal degradation.

• Shielding (STP): For shielded plugs, ensure the drain wire or foil shield makes proper contact with the connector’s metal housing.

• Testing: After termination, verify link integrity and performance (e.g., near-end crosstalk, return loss) using a cable tester.
