RJ45 UTP Network Plug is one of the information socket connectors in the cabling system, which consists of a plug and a socket, used for the termination of data cables, to realize the connection and change of equipment and distribution frame modules.
RJ45 plug has 8 contacts, i.e. 8P, without shielding (Unshielded) and with shielding (Shielded). Its internal pins are made of carbon copper and are crimped diagonally across the face for high connection reliability.

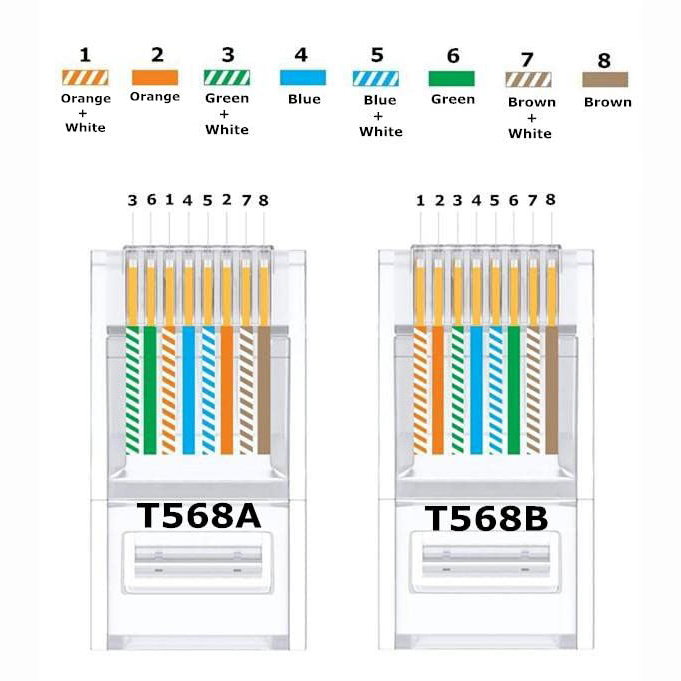

RJ45 plugs require good conduction performance, contact trident reed gold-plated thickness of 50 μm, in line with more than five transmission standards, including T568A and T568B wire sequence, and has to prevent loosening, plugging and self-locking and other functions.
Custom Ethernet Cables made easy
Purchasing ethernet cables can be expensive and pre-made lengths are not always suitable for your needs. FANGBEI connector Gold Plated FANGBEI RJ45 Pass Through Plugs let you quickly and easily create category 6 cables in your preferred lengths. Our clear 1-piece pass-through connector design makes wire sequence verification a breeze, speeding up terminations and reducing scraps and waste. Time is money, and FANGBEI Cat6 Connectors save you both.
Reliable, compliant performance
FANGBEI gold plated 3 teeth 8 pins FANGBEI RJ45 Connectors are suitable for use in category 6 data networks. They work with virtually every model of RJ45 crimper tool and 24AWG cable. Because they reduce the distance between wire twists and contacts, electrical performance is enhanced. Note that the maximum cable length of Cat-6 ethernet cable should be 328 feet or 100 meters.
Product Parameters
Model Number | RJ45 8P8C EZ |
Compatible Devices | Router, Server, Modem, Smart TV, Gaming Console, Security Camera |
Special Feature | Data Transfer |
Shape | Round |
Gauge | 28 |
Headphones Jack | Rj45 |
Indoor/Outdoor Usage | Outdoor, Indoor |
Package Type | Standard Packaging |
Product Dimensions | 9 x 5.75 x 0.5 inches |
Item Weight | 3.2 ounces |
Best Sellers Rank | #585 in Cat 5e Ethernet Cables |
1) All modular plugs RJ11 RJ12 RJ45 connectors are available:
8P8C, 8P4C, 6P4C, 6P2C, 4P4C, 4P2C; RJ11/RJ12/RJ45/RJ48 connector, UTP/FTP/STP/SFTP/SSTP, color modular plugs, or UK plugs are all
available.
2) Gold plating thickness: gold flash, FU,01,03, 06, 15, 30, 50U”.
3) UL/RoHS compliant.
4) Imported materials:
Imported polycarbonate material with good transparency and flexibility.
5) Designed according to FCC standard, and fully compatible with different jacks.
6) Standard packing: 1000pcs or 100pcs/bag with a sticker to mark specification.
For round cable, featuring gold plated contacts for the best possible connection. Manufactured from a leader in the network cables industry, Make your network function to it's maximum potential.

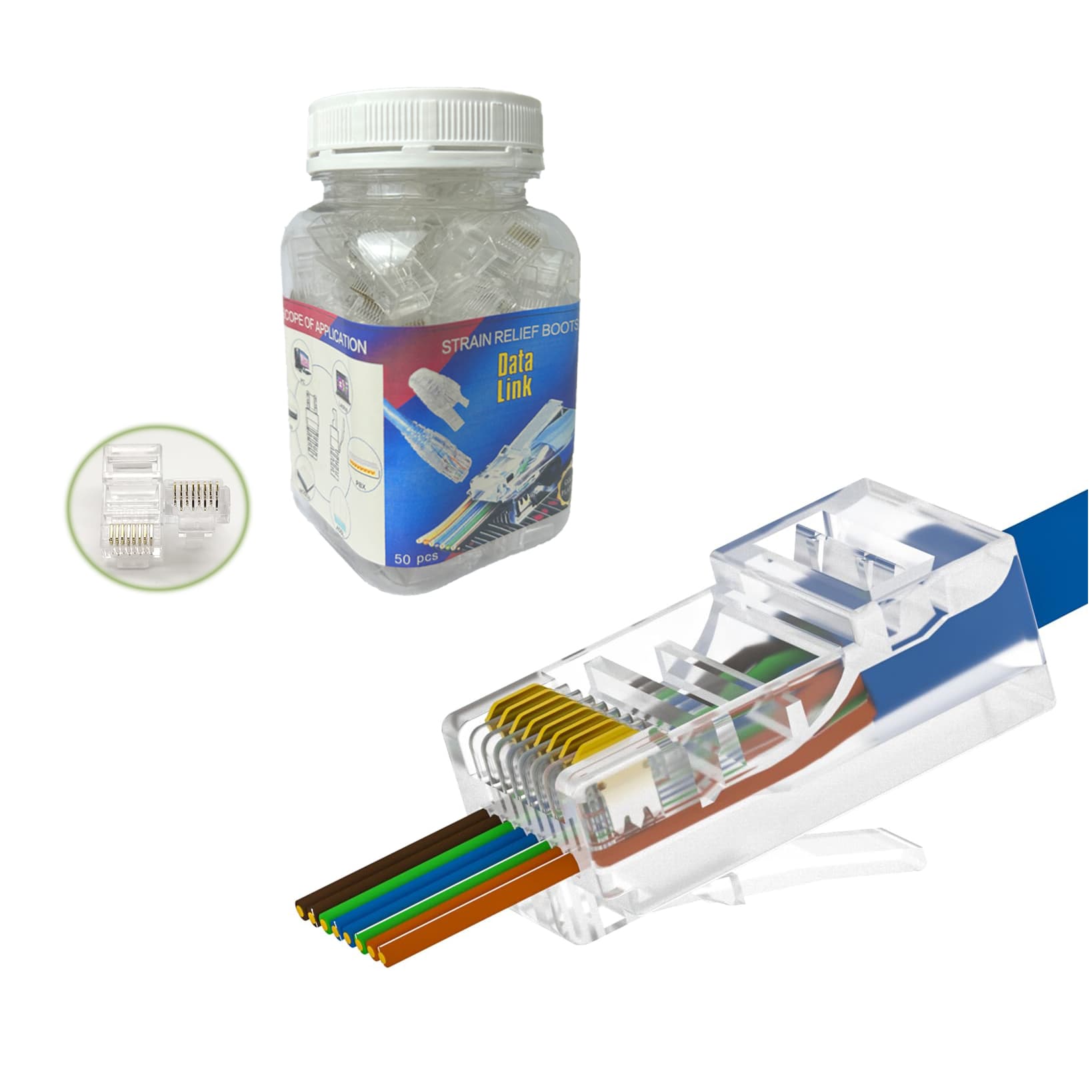

50pcs NEORANNK CAT5/5e Pass-Thru RJ45 Modular Data Plugs.
FEATURES:
* 50 pcs Rj45 plugs for unshielded twisted pair solid or stranded cable, supports 24 to 26 AWG round or flat network cable
* Gold-plated contacts provide reliable performance for a Gigabit Ethernet rated network

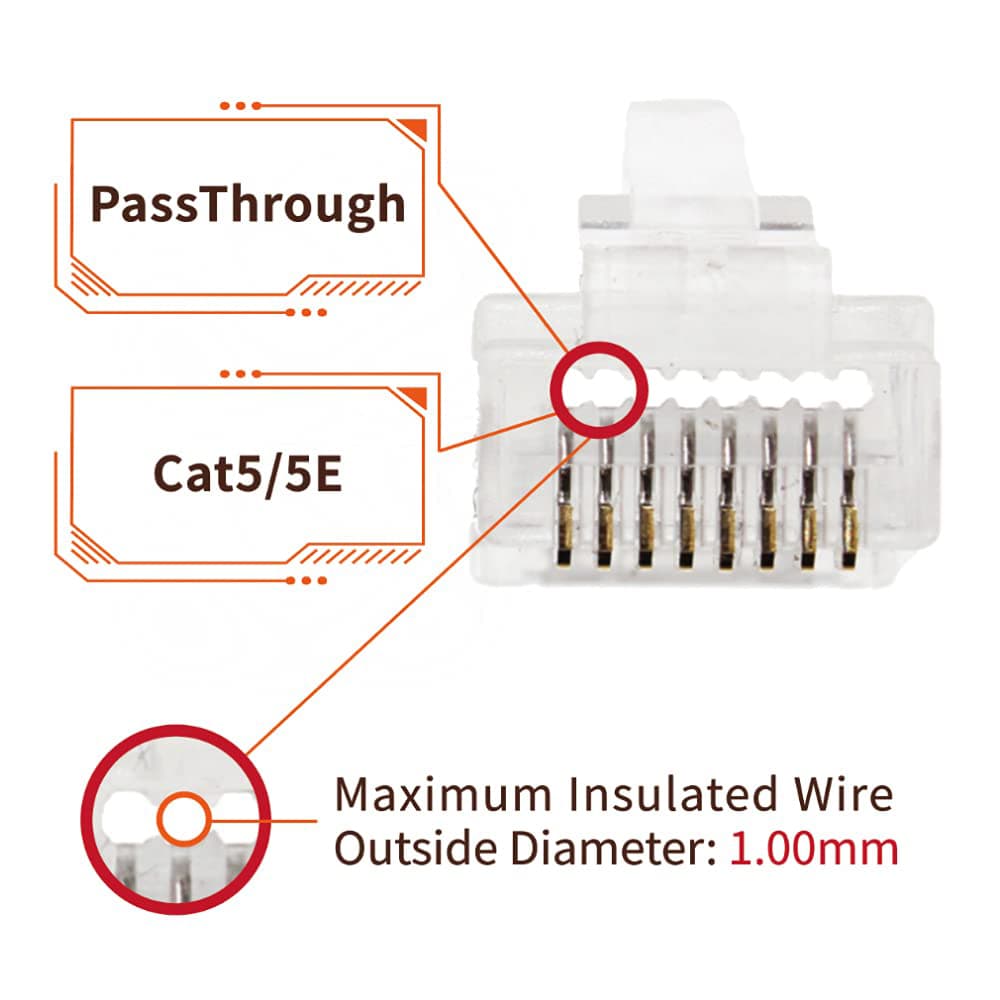

* CAT5/5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent
and secure terminations
* 8 position, 8 contact Pass Through style data plug for solid or stranded cable
* Easy to use, even if it’s your first time.
Fangbei, a premier manufacturer specializing in network connectors, terminals, electronic components, and cutting-edge network tools.
