STP RJ45 Modular Plug

STP RJ45 Modular Plug is a connector for network connection. Unlike the common UTP plug, STP RJ45 plug has a shielding function, which can reduce electromagnetic interference and radio frequency interference, so it is very suitable for environments with high signal quality requirements, such as industrial environments, data centers, and network cabling with long transmission distances.

Product Parameters

STP RJ45 Modular Plug provides excellent resistance to electromagnetic interference (EMI) and radio frequency interference (RFI) through the metal shielding layer, reduces crosstalk and improves signal stability. The STP RJ45 Modular Plug shielding layer is usually connected to the ground wire, which is very beneficial for environments that require extremely high data transmission stability (such as industrial automation, medical systems, and data centers). It can effectively prevent external interference and is suitable for high-specification electrical cables such as Cat6 and Cat6a, long-distance transmission, and high-speed network environments.

STP RJ45 modular plug has a wide range of applications, supports Cat5e to Cat6a shielded cables, meets Gigabit and 10 Gigabit network requirements, and is suitable for high-demand environments such as industrial automation and data centers.

The role of STP RJ45 Modular Plug in data centers

Anti-interference ability: Data centers usually contain a large number of electronic devices and a high-density wiring environment, which is prone to electromagnetic interference (EMI) and radio frequency interference (RFI). The STP RJ45 plug effectively reduces these interferences through the metal shielding layer to ensure the stability and integrity of data transmission.

High bandwidth support: Data centers have extremely high requirements for the speed and stability of data transmission. The STP RJ45 plug supports Gigabit and 10 Gigabit Ethernet, which is suitable for large-volume data transmission and ensures the efficient operation of the data center network.

Reduce signal loss and crosstalk: Due to the shielding design, the STP plug can reduce crosstalk and signal attenuation, ensuring accurate data transmission, especially in long-distance wiring or high-speed network environments.

Improve system reliability: Data centers need to ensure continuous and stable network connections. The STP RJ45 plug can effectively avoid connection interruptions or transmission errors caused by external interference or signal interference, thereby improving the overall reliability of the system.

Support redundant and high-availability network architecture: The STP RJ45 plug is suitable for supporting redundant and high-availability network architectures to ensure the stability and continuity of network connections in data centers under high load and complex environments.

The role of STP RJ45 Modular Plug in security monitoring

Improve data transmission stability

The STP RJ45 plug adopts a shielded design, which effectively reduces external electromagnetic interference (EMI) and radio frequency interference (RFI) through a copper shielding layer (usually an aluminum foil shield). In security monitoring, video surveillance signals, alarm system signals and other key data need to be transmitted stably and reliably. The STP RJ45 modular plug can effectively prevent signal loss and noise interference, ensuring clear and accurate data transmission between monitoring devices.

Enhance anti-interference ability

Security monitoring systems are usually deployed in areas with complex environments and many interference sources, such as factories, commercial buildings, warehouses, etc. The electrical equipment and radio frequencies in these places will interfere with network signals. The STP RJ45 modular plug can effectively isolate external electromagnetic interference through its shielding layer, ensuring the normal transmission of video data and alarm signals, especially in high-noise environments. Performance is particularly important.

Support high-speed network connection

With the popularization of high-definition video surveillance, IP cameras and other intelligent security equipment, the demand for network bandwidth and transmission speed continues to increase. STP RJ45 modular plugs support higher bandwidth and faster network transmission rates (such as 1000Mbps or higher), allowing security monitoring systems to transmit high-definition, smooth video data and respond to alarm signals in a timely manner, thereby improving the effectiveness of the overall security system.

Enhance system security

In security monitoring systems, the security of data transmission is crucial. The shielding design of the STP RJ45 modular plug can prevent data from being stolen or tampered with by unauthorized third parties, thereby effectively improving the network security of the monitoring system. This plays an important role in preventing security issues such as hacker intrusion and tampering of surveillance video.

Reliable connection quality

Security monitoring systems require that the connection between devices must be very reliable. The plug part of the STP RJ45 modular plug is precisely designed to ensure good connection with network equipment. Its anti-vibration, anti-corrosion and dustproof properties can provide long-term and stable connections in harsh environments.

Simplify installation and maintenance

STP RJ45 modular plugs are usually designed as standard plug-in connections for easy installation and replacement. Because its design complies with international standards, system integrators and installation engineers can quickly perform wiring, connection and maintenance, reducing the complexity and time of system installation.

Support PoE power supply

In many security monitoring systems, cameras and other devices need to transmit power and data simultaneously through network cables, which requires a network interface that supports Power over Ethernet (PoE). The STP RJ45 modular plug supports PoE technology and can transmit power and data simultaneously through a network cable, simplifying wiring, reducing the number of power adapters, and reducing installation costs.

Improve the scalability of the monitoring system

The STP RJ45 modular plug supports Ethernet topology, which can easily connect multiple cameras, sensors, alarms and other devices to the same network. As security needs change, the system can be flexibly expanded to add more monitoring equipment without rewiring or adjusting the original system.

FAQ

Why is the signal often lost or unstable when using the STP RJ45 modular plug?

Poor contact: The connection between the plug and the socket is not tight, which may cause signal loss.

Poor cable quality: The network cable used is of low quality, or the shielding layer is not perfect, and the anti-interference effect of the STP plug cannot be fully utilized.

Cable is too long: If the network cable exceeds the recommended maximum length (generally 100 meters), signal attenuation may affect stability.

Electromagnetic interference: Although the STP plug has an anti-interference design, if there is strong electromagnetic interference in the environment, it may still affect the signal quality.

Solution:

Make sure the plug and socket are firmly connected, and you can try to re-plug and unplug to check the contact.

Replace with a high-quality network cable to ensure that the network cable meets the standard and has a good shielding layer.

Make sure the length of the network cable does not exceed the recommended maximum transmission distance (generally 100 meters), otherwise use a switch or signal amplifier.

Try to avoid laying the network cable near power cables or other strong electromagnetic interference sources, or use a stronger shielded network cable.

When installing the STP RJ45 modular plug, it is found that the connection is difficult or there is a wiring error, causing the device to not work properly. How to solve it?

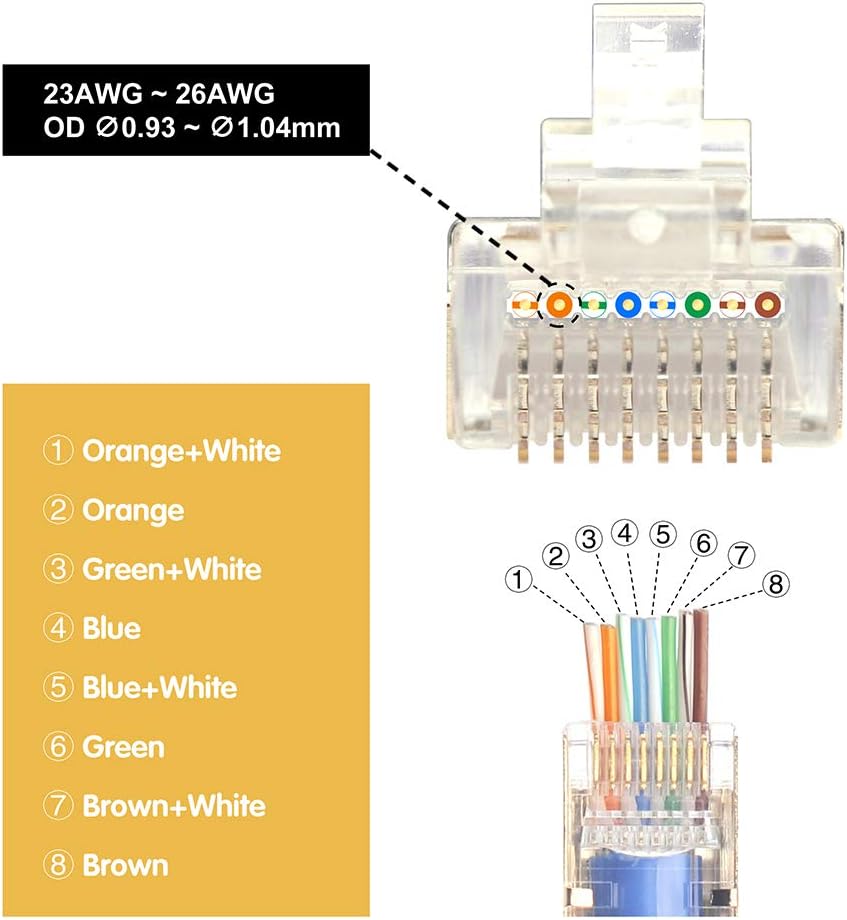

Incorrect wiring sequence: The wiring sequence of the RJ45 plug (T568A or T568B standard) is not arranged in the correct way, resulting in connection failure.

Improper cable stripping: The network cable is stripped too much or not enough, resulting in poor contact between the copper wire and the plug.

The plug is not installed firmly: The plug is not fully crimped during installation, resulting in loose connection.

Solution:

Make sure to connect the network cable according to the standard wiring sequence (T568A or T568B).

The stripping length is controlled within the appropriate range (generally 1.5 to 2 cm) to ensure that the copper wire is not damaged.

When using the crimping tool, make sure that the plug is fully crimped in place to avoid looseness.

The STP RJ45 modular plug has advantages in anti-interference, but can it prevent all electromagnetic interference?

Answer: The STP RJ45 modular plug can effectively reduce many common electromagnetic interference (EMI) and radio frequency interference (RFI), but it cannot prevent all types of interference. Its shielding layer can prevent the influence of low-frequency and medium-frequency interference, but if you encounter extremely strong interference sources (such as high-power electromagnetic devices), the shielding effect of STP plugs may be limited.

Solution:

In high-interference environments, you can consider using higher-level shielded network cables or installing special electromagnetic shielding devices (such as EMI filters).

Avoid laying network cables near strong electromagnetic interference sources, such as large motors, wireless transmitters, etc.

Does the STP RJ45 modular plug support PoE power supply function?

Answer: Yes, the STP RJ45 modular plug supports PoE (Power over Ethernet) function. The design of the STP plug allows the network cable to transmit data and power at the same time, so it can provide power and data connections to devices (such as IP cameras, wireless access points, etc.) through a single network cable. This is very useful for reducing installation complexity and reducing the need for power cables.

Solution:

Make sure your network devices and switches support PoE function so that power can be provided through the network cable.

Use high-quality network cables that meet PoE standards to ensure stable power transmission.
