UTP EZ RJ45 Connector Cat5e

The UTP EZ RJ45 Connector for Cat5e is a user-friendly, pass-through RJ45 connector designed for Unshielded Twisted Pair (UTP) Cat5e Ethernet cables. It simplifies termination with its innovative through-hole design, ensuring reliable performance for network installations, custom Patch Cord creation, and on-site repairs.

Standard used

Make sure you use the correct RJ45 Pinout wiring diagram for your needs.

There are a couple of standards and there is also crossover cable, so make sure you study the RJ45 Pinout diagrams below to get the right one for your needs. The following is for T568 B (most common).

This RJ 45 pin diagram (T-568B) shows everything you need in one handy image, with iso-view and RJ45 color order, suitable for printing quite large.

1. Pass-Through Design

• Allows all 8 conductors to pass through the connector body, enabling visual verification of wire sequence before crimping.

• Reduces termination errors by eliminating blind spots during alignment.

• Conductors can be trimmed to length post-insertion for a cleaner finish.

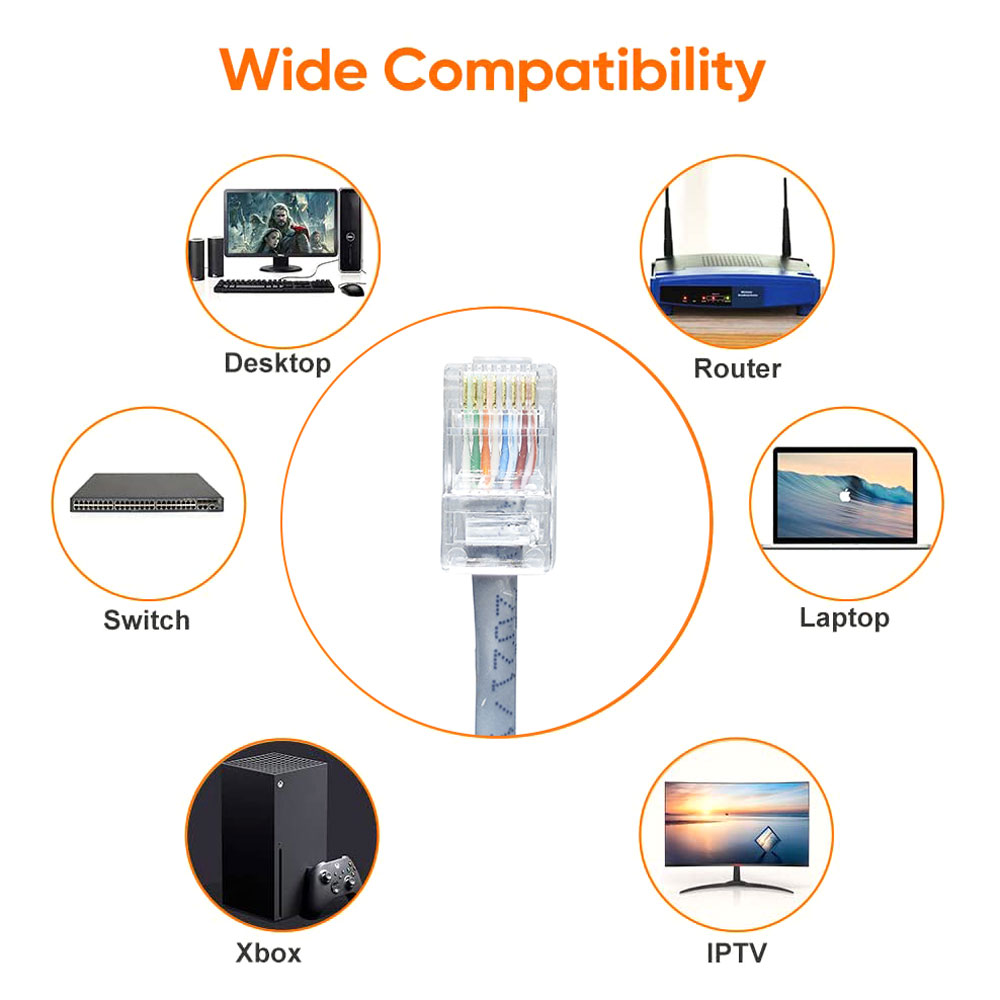

2. Broad Compatibility

• Supports 24AWG to 26AWG Cat5e UTP cables (some models compatible with Cat6).

• Works with both solid-core (solid) and stranded-core (stranded) wires, adapting to diverse cabling needs.

3. Enhanced Performance

• Minimizes signal attenuation and crosstalk by optimizing conductor placement and contact points.

• Meets TIA/EIA-568 and UL 94V-2 standards, ensuring reliability for PoE (Power over Ethernet) applications.

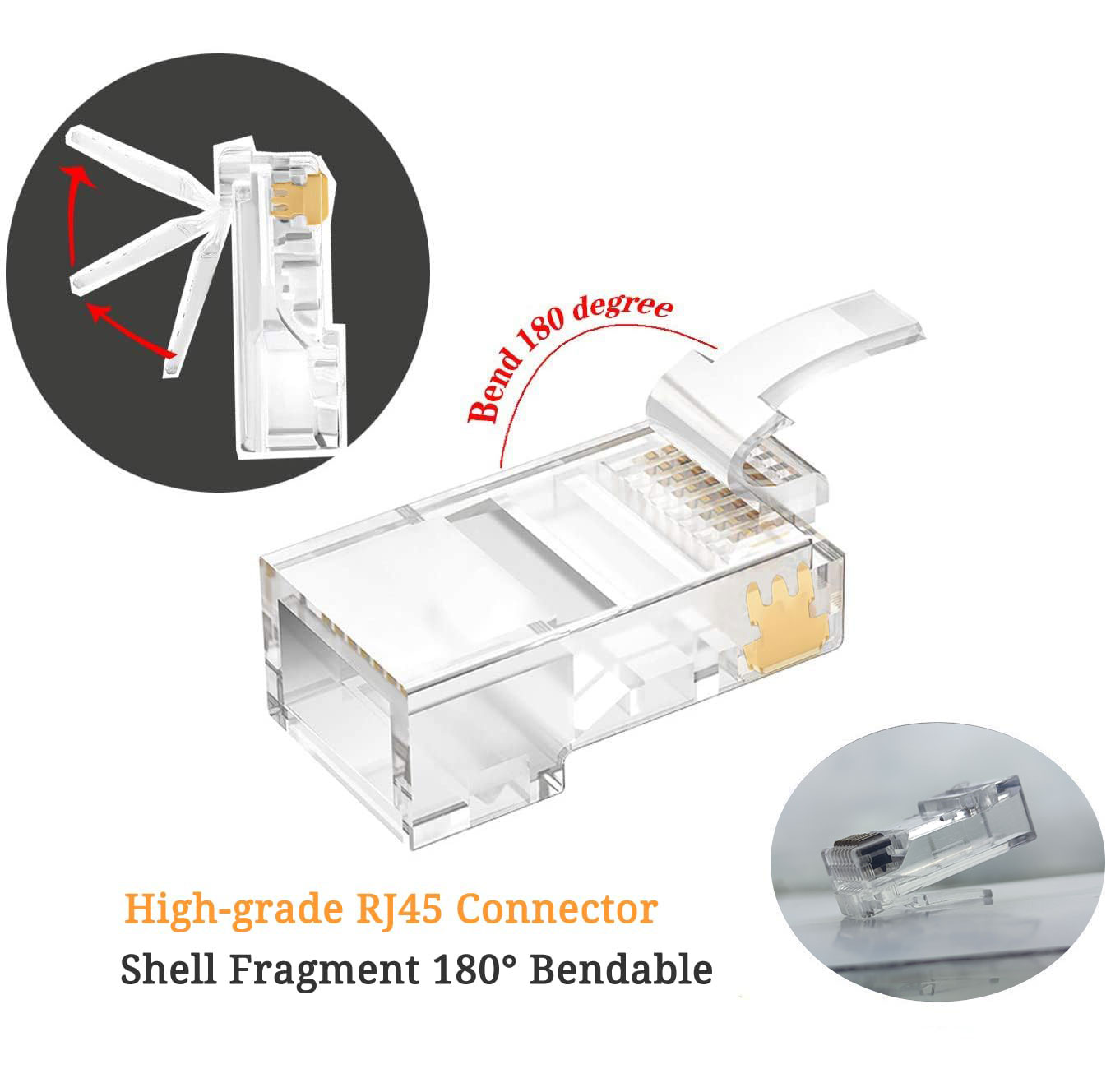

4. Durable Construction

• 8P8C (8-position, 8-contact) standard for full Ethernet compatibility.

• Made of flame-retardant polycarbonate (PC) for safety.

• 50-micron gold-plated contacts resist corrosion and ensure long-term durability.

Typical Applications

• Custom Patch Cords: Create Ethernet cables of specific lengths by attaching connectors to bulk Cat5e UTP cable.

• On-Site Termination: Quickly terminate pre-pulled cables during network installations without returning to the patch panel.

• Rapid Repairs: Replace damaged connectors on patch cords to restore connectivity instantly.

Specifications

* Number of cores: 8 PIN
* Waterproof rating: IP68
* Connection type: RJ45
* Flame retardant rating: UL94V-0
* Connector wire-in range: OD (3～8) mm
* Installation aperture: 20-21mm
* Connector transmission: CAT5e

* Shell: PC
* Working temperature: -40～105℃
