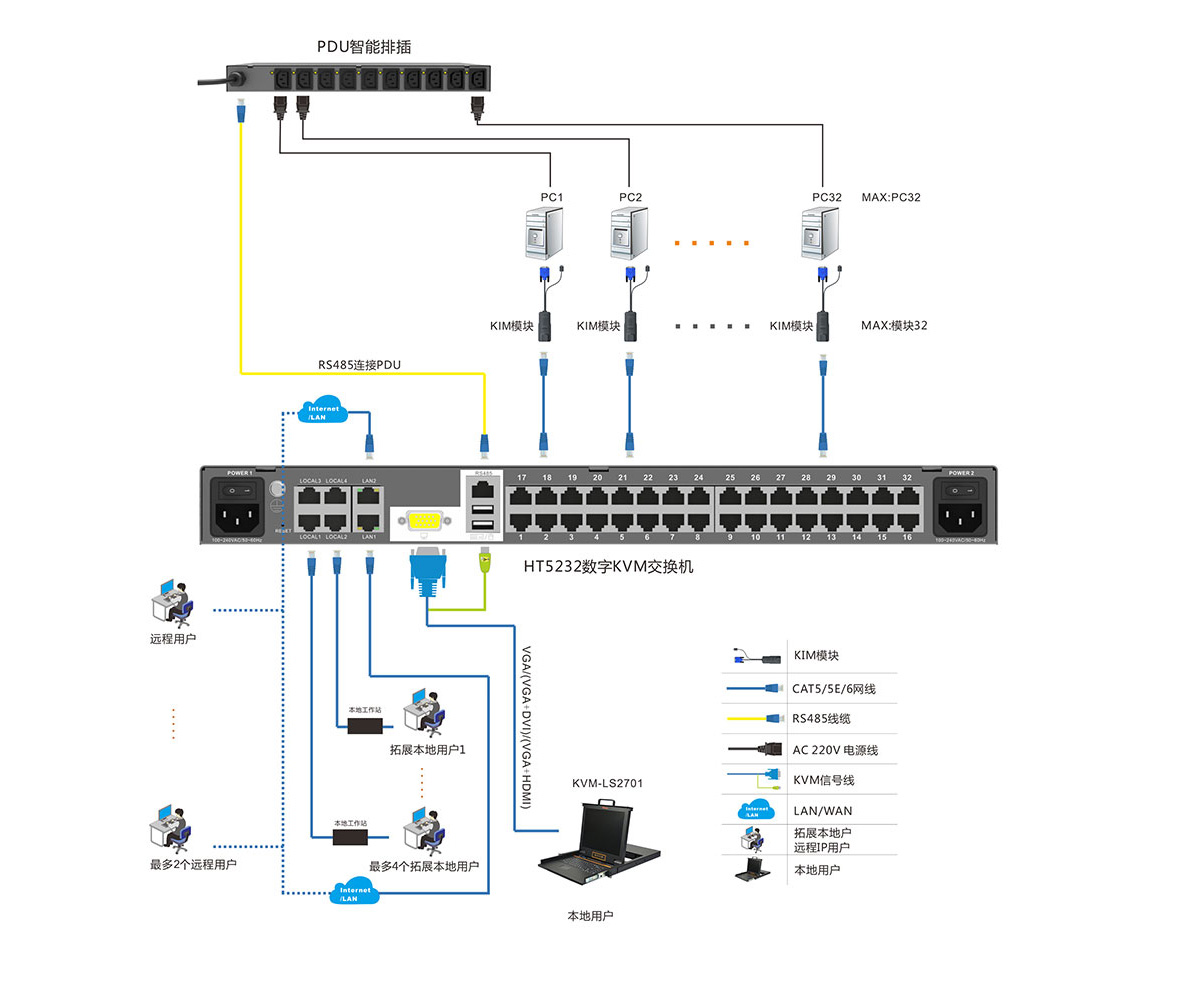

VEPA Wiring Scheme

32 RJ45 port inputs, 3 local outputs, 2 remote simultaneous KVMoverIP, dual network port, dual power kvm switcher

1, 19-inch rack 1U, support dual redundant power supply;

2, ★ The host needs to provide 32 RJ45 interface input; Supports three local outputs and two remote KVMoverIP access at the same time.

3, support network adapter card can provide local area network redundancy or dual IP operation capability, network card bandwidth support 10/100/1000Mbps;

4, ★ Support PS/2, USB and serial port (RS-232) device connection; You can manage serial devices.

5, the local control interface supports DVI/HDMI/VGA/USB and other interfaces

6, local support OSD menu selection and device configuration operation, support hotkey quick switching operation and remote support client management interface

7, host support server cross-platform client system environment: Windows, Mac, Sun, Linux Kirin system, remote support for a variety of browsers: IE, Chrome, Firefox, Safari, Opera, Mozilla, Netscape

8, local control end video and remote video resolution is not less than 1920*1080 60Hz; The mouse sets the sampling speed of the mouse pointer according to the bandwidth of different networks to ensure effective following speed;

9, ★ Support not less than 3000 groups of user accounts, user rights division is not less than 3 levels;

10. Support the log generation and condition query function of KVM device system;

11, Support KVM remote full screen or virtual remote desktop infinite scaling function, any proportional size display, video frame rate setting allows users to compress the size of data traffic in the case of low bandwidth to achieve the best transmission volume;

12, Support VGA/USB interface input,RJ45 output; The resolution supports 1920*1080 60Hz

13. The connection distance between the digital KVM switch and the managed server is not less than 60 meters;

14, support keyboard and mouse simulation function, remove the KVM port cable on the switch, or reconnect the cable to other connection ports, still ensure the normal operation of the server;

15, Support virtual media virtual storage devices, to achieve remote data transmission function;

16, ★ Support module ID function, can store the connection port information, so that the manager will reconnect the server to different connection ports, without resetting the computer end module and KVM switch

17, LCD rackmount local control platform adopts the same brand products as the digital KVM switch,

18, A-level display, 17-inch TFT display, resolution up to 1280*1024;

19, ★ Ultra-thin keyboard, 100 keys, TOUCHPAD mouse, support external USB keyboard, mouse, monitor, unique detachable design, so that the keyboard has an independent structure for easy replacement

20, Support VGA, PS/2, USB interface (including PS2 and USB dual-purpose cable, do not need another cable);

21, support Windows, Sun, Linux and other operating systems;

22, support (OSD) function and front panel control;

23, power AC110-240V input, DV12V output, 1U specifications rack installation.

24, ★ Provide 3 years free original warranty (provide original service commitment letter)
