Feature of RJ45 waterproof connector:
* The common connection mode of the RJ45 waterproof connector is composed of a male plug and a female plug, which can work by docking with each other.
* There is no need for welding operations or any installation tools. Just insert the standard crystal head directly, which can achieve rapid installation and use.
* RJ45 notch is used as a standard part, and common crystal heads on the market can be matched and used. Conventional crystal head crimping pliers are used uniformly.

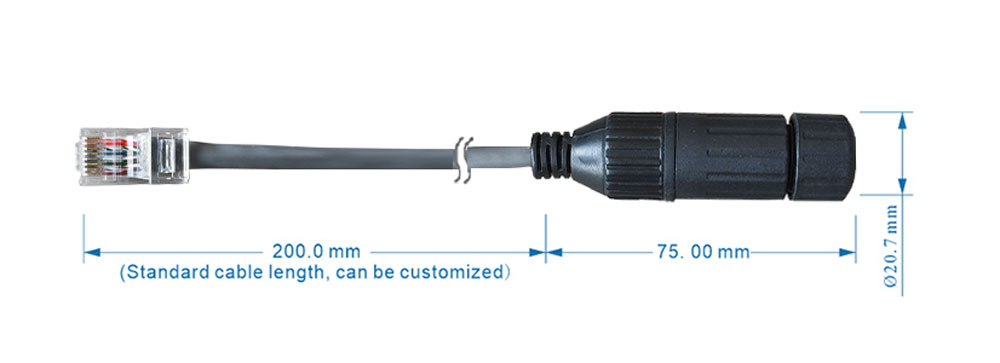

Specification of M16 Rj45 cable connector
| Product name: | RJ45 connectors with cable | Product model: | M16-RJ45-133201 | |
| Wire range: | 24 AWG | Cable OD.: | max. 7 mm | |
| Contact number: | 8 pin | Rated current: | 0.2A | |
| Glue pouring: | Epoxy resin | Mechanical life: | 500 mating cucles | |
| Waterproof rubber ring: | Silicone | Protection level: | IP65 | |
| Shell material: | Nylon V-0 | Working temperature: | -40℃ to 105℃ | |
| Contact material: | Nickel plated | Insulation resistance: | ≥10mΩ DC 500V | |
| Connection method: | Bayonet connect | Wire lenght: | 20cm(default) or customized |
