In today's connected world, reliable network communication has become essential for businesses, data centers, industrial systems, and smart devices. While routers, switches, and servers often receive the most attention, the small components that connect these devices play an equally important role in maintaining stable data transmission.
One of the most widely used components in Ethernet networking is the RJ45 Connector. It is the standard interface used for connecting computers, Network Switches, routers, IP cameras, and other Ethernet-enabled devices through network cables.
However, many network failures are not caused by the main equipment but by poor-quality connectors, incorrect installation, or unsuitable connection solutions. Problems such as unstable connections, signal loss, slow transmission speeds, and network interruptions can often be traced back to the connector level.
Understanding how RJ45 connectors work and how to choose the right solution can help engineers, installers, and purchasing managers build more reliable network systems.
As a professional RJ45 Connector Manufacturer, Fangbei Electronics provides reliable Ethernet connection solutions, including RJ45 connectors, plugs, and networking accessories for various applications.
What Is an RJ45 Connector?
An RJ45 connector is a modular connector commonly used for Ethernet networking applications. The name RJ45 refers to the physical interface design that connects twisted-pair network cables to networking equipment.
Although people often use the term RJ45 to describe both the connector and the port, the actual connector is an 8P8C (8 Position, 8 Contact) interface. It contains eight metal contacts that connect with the eight individual wires inside an Ethernet Cable.
A typical RJ45 connection includes:
RJ45 Plug – the male connector attached to the network cable

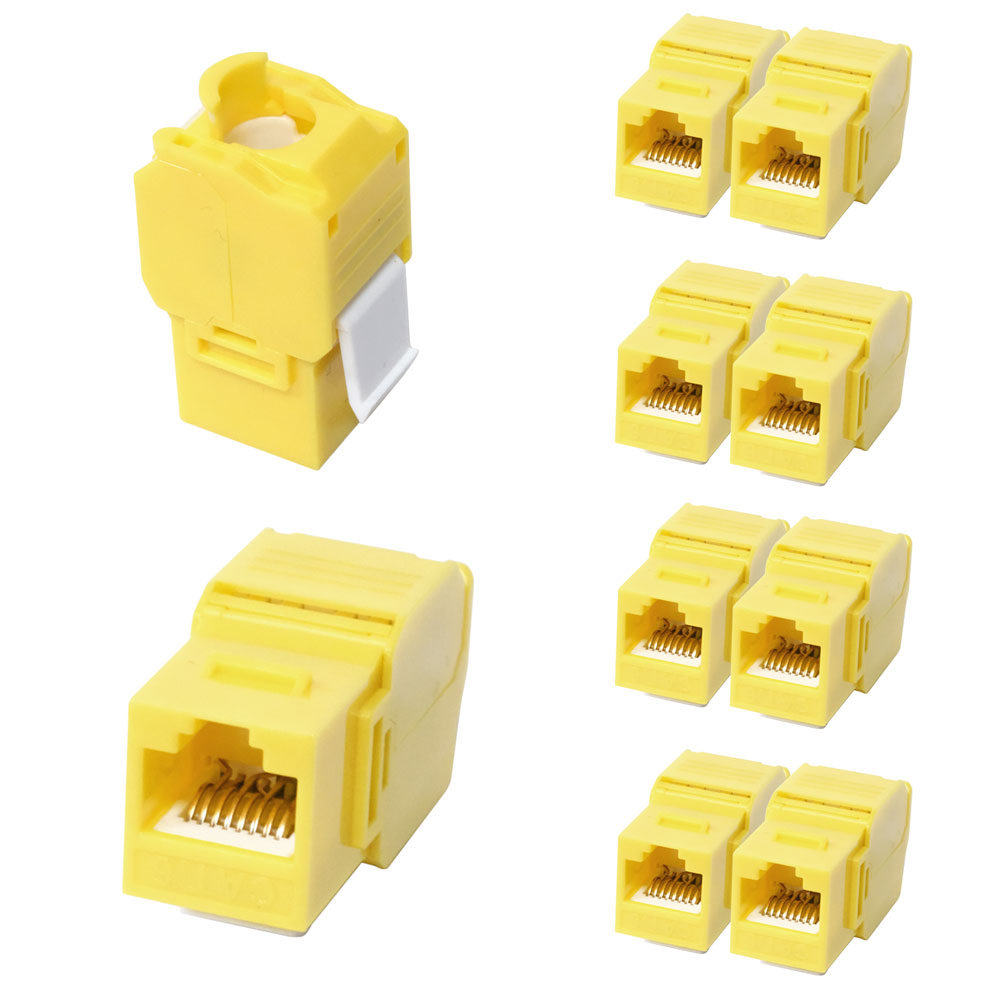

RJ45 Jack – the female port installed on devices or panels
Ethernet Cable – the cable that carries network data
RJ45 connectors are commonly used with different categories of Ethernet cables, including:
Cat5e Ethernet Cable
Cat6 Ethernet Cable
Cat6A Ethernet Cable
Cat7 Ethernet Cable
Different cable categories provide different transmission speeds and bandwidth capabilities, making connector selection an important factor in network performance.
How Does an RJ45 Connector Work?
The main function of an RJ45 connector is to create a reliable physical connection between Ethernet devices and allow digital signals to travel through network cables.
1. Establishing a Physical Connection
When a network cable is terminated with an RJ45 plug, the eight internal wires are arranged according to specific wiring standards such as T568A or T568B.
The metal contacts inside the connector connect with the copper conductors in the cable. When inserted into an RJ45 jack, these contacts create an electrical connection that allows data signals to pass between devices.
For example:
Computer → Ethernet Cable → RJ45 Connector → Network Switch → Server
Without a stable connector connection, even high-performance network equipment cannot achieve reliable communication.
2. Transmitting Data Signals
Ethernet cables contain twisted wire pairs designed to reduce electromagnetic interference and improve signal quality. The RJ45 connector maintains the correct wire arrangement and ensures that signals are transmitted accurately.
A high-quality Ethernet Connector helps reduce:
3. Supporting Different Network Speeds
As network requirements increase, RJ45 connectors have evolved to support higher transmission speeds. Modern connectors are designed for applications ranging from standard office networks to high-performance data centers.
Different Types of RJ45 Connectors

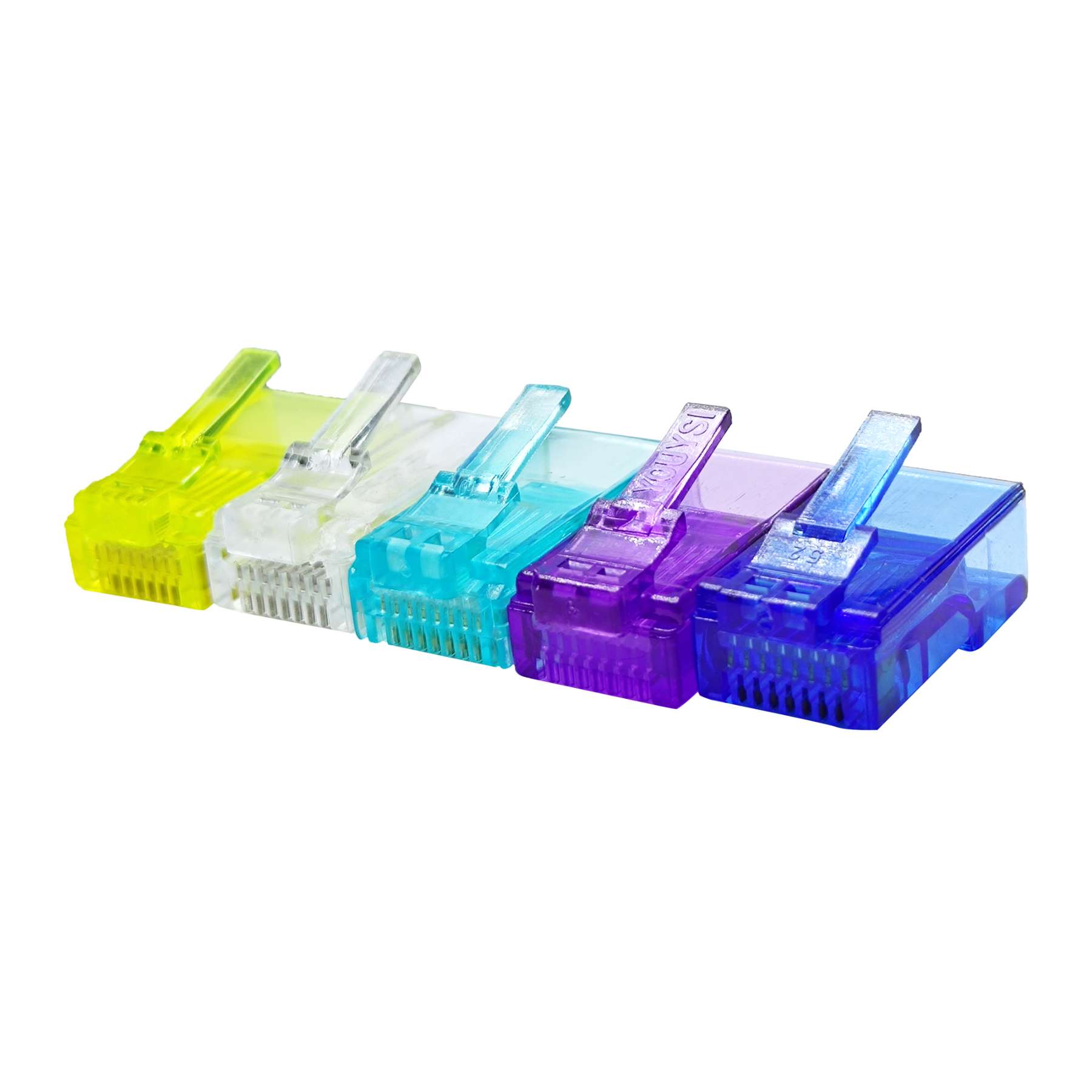

Standard RJ45 Connector
Standard RJ45 connectors are widely used for general Ethernet applications, including home networks, offices, and commercial networking systems.
They provide:
They are suitable for applications where standard network performance is required.
A Cat6 RJ45 Connector is designed for Gigabit Ethernet applications and provides improved transmission performance compared with older connector types.
Cat6 solutions are commonly used in:
They support higher bandwidth and better signal performance, making them a popular choice for modern network installations.
Cat6A RJ45 Connector
A Cat6A RJ45 Connector is developed for higher-speed Ethernet applications, especially environments requiring reliable 10 Gigabit data transmission.
Compared with standard Cat6 solutions, Cat6A provides improved performance against crosstalk and signal interference.
Typical applications include:

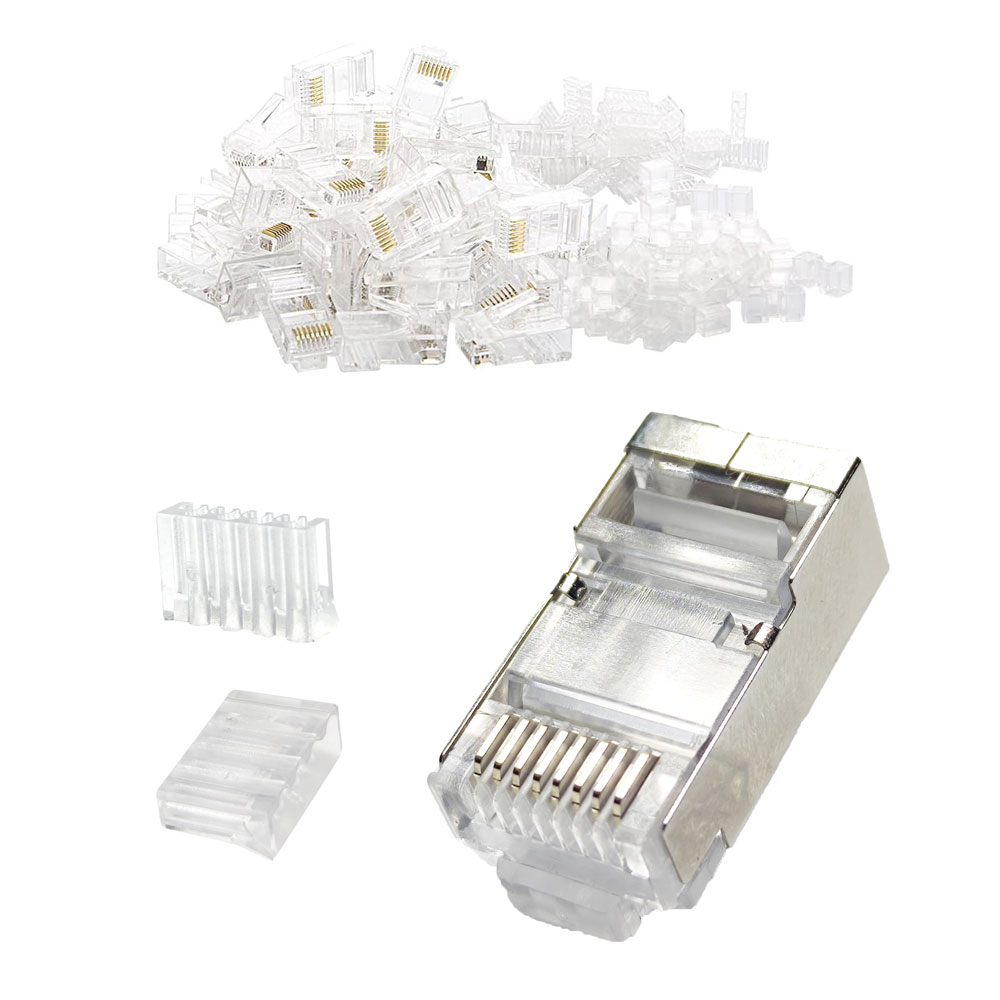

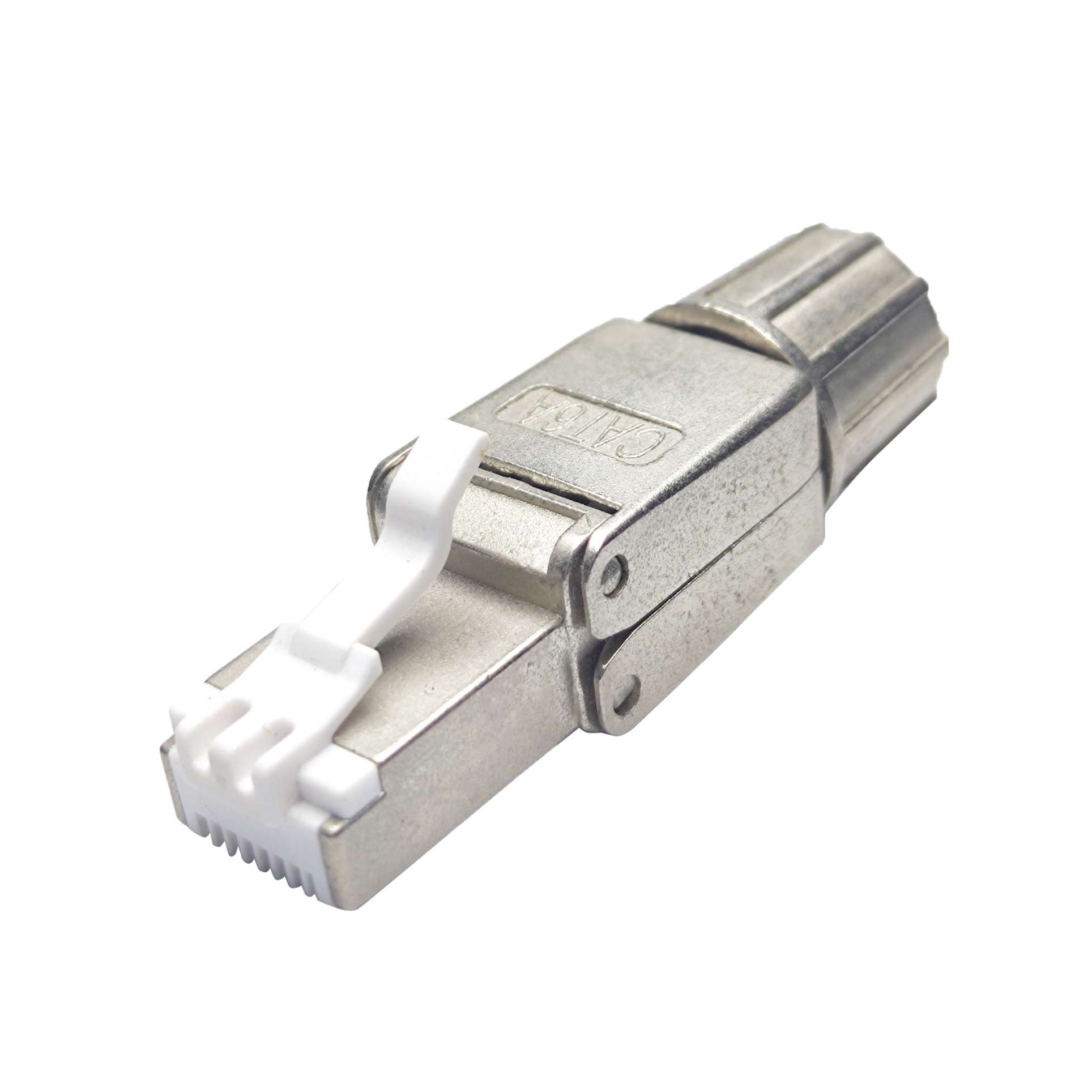

Shielded RJ45 Connector
In environments with strong electromagnetic interference, shielded connectors provide additional protection.
They are commonly used in:
The shielding structure helps maintain stable signal transmission in demanding environments.
RJ45 Connector vs RJ11 Connector: What Is the Difference?
| Feature | RJ45 | RJ11 |
|---|
| Main Application | Ethernet Networking | Telephone Communication |
| Contacts | 8P8C | Usually 4P or 6P |
| Usage | Computers, Switches, Routers | Telephone Lines |
| Data Capability | High-Speed Data Transmission | Voice Communication |
Although they look similar, RJ45 and RJ11 are designed for completely different applications. RJ45 connectors are mainly used for Ethernet networks, while RJ11 connectors are traditionally used for telephone systems.
How to Choose the Right RJ45 Connector?
Selecting the correct connector is important for achieving stable network performance. Before purchasing, buyers should consider several factors.
1. Match the Connector with Network Speed
Different applications require different transmission capabilities.
Cat5e: Suitable for basic Ethernet applications
Cat6: Suitable for Gigabit Ethernet networks
Cat6A: Suitable for high-speed 10Gb Ethernet applications
2. Consider the Installation Environment
Standard connectors are suitable for office environments, while industrial or high-interference environments may require shielded solutions.
3. Check Cable Compatibility
The connector should match:
Cable category
Conductor type
Cable diameter
Installation method
4. Choose a Reliable Supplier
Working with an experienced RJ45 Connector Manufacturer ensures better product consistency, stable supply, and technical support.
Common RJ45 Connector Problems and Solutions
Loose Network Connection
Poor contact quality or incorrect installation may cause intermittent network connections. Choosing reliable connectors and following proper installation procedures can prevent this issue.
Slow Network Performance
Using an unsuitable connector or cable category may limit network speed. For high-performance applications, Cat6 or Cat6A solutions are recommended.
Signal Interference
Industrial environments may experience electromagnetic interference. Shielded RJ45 connectors can help improve signal stability.
Applications of RJ45 Connectors
RJ45 connectors are widely used across many industries, including:
As digital infrastructure continues to expand, demand for reliable Network Cable Connector solutions continues to grow.
Why Choose Fangbei as Your RJ45 Connector Supplier?
Fangbei Electronics specializes in providing reliable network connection products for global customers. With professional manufacturing capabilities and experience in communication components, Fangbei supports customers with stable quality products and customized solutions.
Our product solutions include:
Whether you need standard networking components or customized Ethernet connection products, Fangbei provides professional support for different application requirements.
Frequently Asked Questions
What is an RJ45 connector used for?
RJ45 connectors are mainly used for Ethernet networking, connecting devices such as computers, routers, switches, servers, and IP cameras.
Is RJ45 the same as Ethernet?
RJ45 is the physical connector interface used for Ethernet networks. Ethernet refers to the networking technology that transfers data.
What is the difference between Cat6 and Cat6A RJ45 connectors?
Cat6A connectors provide improved performance and are designed for higher-speed applications such as 10 Gigabit Ethernet networks.
How long does an RJ45 connector last?
A high-quality RJ45 connector can provide long-term reliable performance when installed correctly and used in suitable environments.
How do I choose an RJ45 connector manufacturer?
Consider manufacturing experience, quality control, customization capability, product range, and technical support when selecting a supplier.
Conclusion
Although small in size, RJ45 connectors play a critical role in modern network communication. Choosing the right connector ensures stable data transmission, reduces connection problems, and improves overall network reliability.
From standard Ethernet applications to advanced data center and industrial systems, reliable connection components are essential for building efficient communication networks.
Fangbei Electronics is committed to providing high-quality RJ45 connectors and Ethernet connection solutions for customers worldwide.
